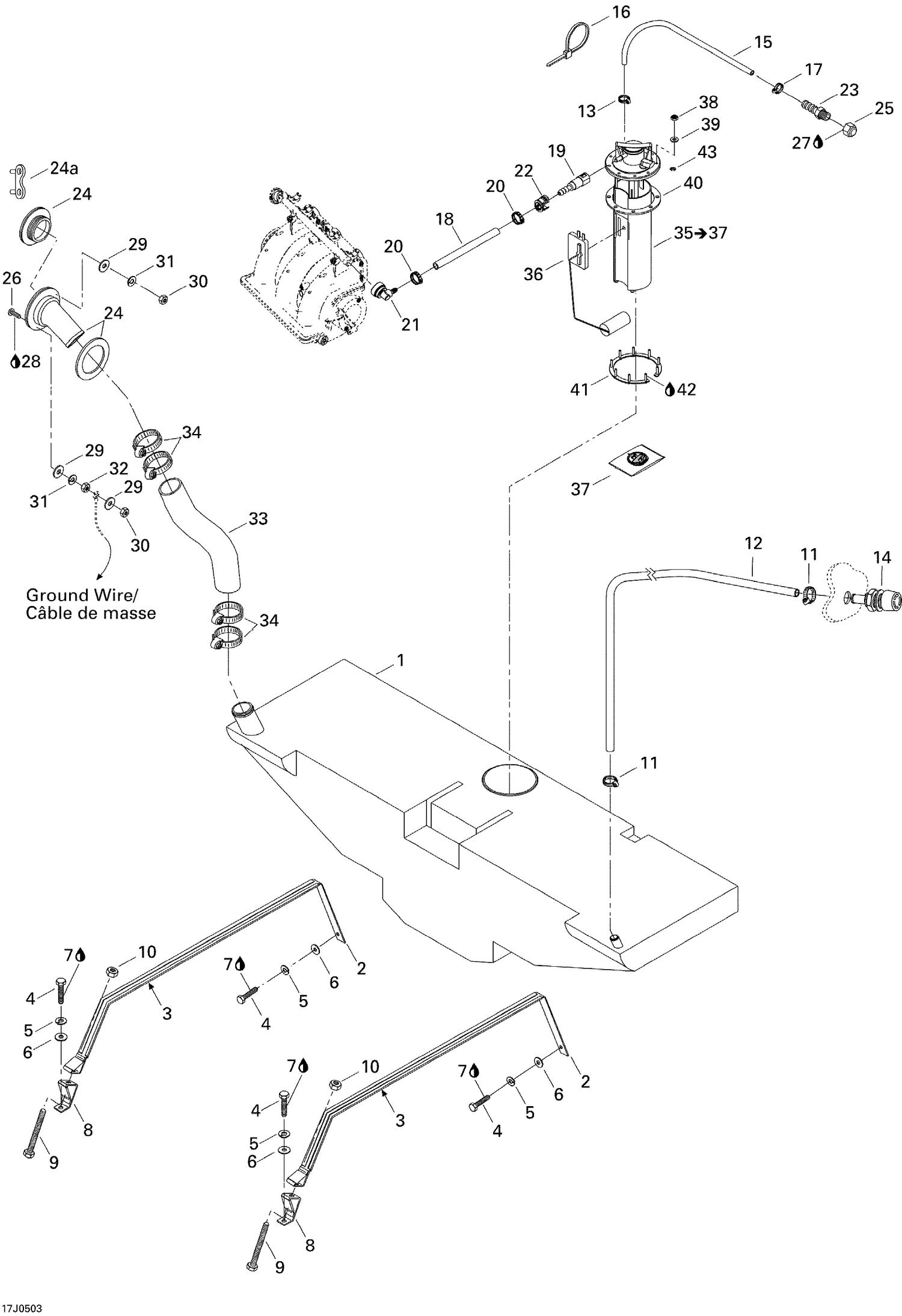

| Ref | Part Number | Description |
|---|
| 1 |
204560326 |
FUEL TANK ASS'Y - Call your local BRP dealership |
| 2 |
204560181 |
FUEL TANK STRAP - Call your local BRP dealership |
| 3 |
204560185 |
PROTECTOR PAD - Call your local BRP dealership |
| 4 |
207183060 |
Hex. Screw M8 X 30 |
| 5 |
234181601 |
Lock Washer 8 mm, Stainless |
| 6 |
234082600 |
Flat Washer 8 mm, Stainless |
| 7 |
293800005 |
Loctite 271, 10 ml |
| 8 |
275500252 |
TANK BRACKET - Call your local BRP dealership |
| 9 |
207183560 |
HEX. SCREW M8 X 35 - Call your local BRP dealership |
| 10 |
232581600 |
Hex. Elastic Nut M8 |
| 11 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 12 |
204560358 |
HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 13 |
293650170 |
Tridon Gear Clamp |
| 14 |
275500206 |
VENT BOAT - Call your local BRP dealership |
| 15 |
204560178 |
HOSE 1/4 - Call your local BRP dealership |
| 16 |
293750009 |
Tie-Rap 173 mm |
| 17 |
293650121 |
NORMA CLAMP - Call your local BRP dealership |
| 18 |
204560396 |
HOSE 5/16 - Call your local BRP dealership This part replaces 275500626. |
| 19 |
275500428 |
CONNECTOR BOX - Call your local BRP dealership |
| 20 |
293650011 |
Oetiker Clamp |
| 21 |
293710105 |
Elbow Fitting 90° |
| 22 |
275500429 |
STOPPER CONNECTOR - Call your local BRP dealership |
| 23 |
204560265 |
COUPLER - Call your local BRP dealership |
| 24 |
204560253 |
Fuel Filler Neck Ass'y |
| 24a |
219700344 |
FUEL CAP KEY - Call your local BRP dealership |
| 25 |
204560263 |
Pipe Cap |
| 26 |
208553060 |
Phillips Screw M5 X 3 |
| 27 |
219704454 |
Was 293800013 Loctite 56765 |
| 28 |
293800060 |
Loctite 243, 10 ml |
| 29 |
234051600 |
Flat Washer M5, Stainless |
| 30 |
232051600 |
Hex. Nut M5 |
| 31 |
234151601 |
Helical Lock Washer M5 |
| 32 |
232051600 |
Hex. Nut M5 |
| 33 |
219700374 |
NECK FILLER HOSE - Call your local BRP dealership |
| 34 |
293650081 |
Norma Clamp |
| 36 |
270600012 |
Sensor Level |
| 37 |
219700368 |
Fuel Filter, Bosch |
| 38 |
232551200 |
Elastic Stop Nut 5 mm |
| 39 |
234052400 |
Flat Washer 5 mm, Stainless |
| 40 |
293250088 |
Gasket |
| 41 |
275500679 |
C-Ring, 9 Studs This part replaces 275500616. |
