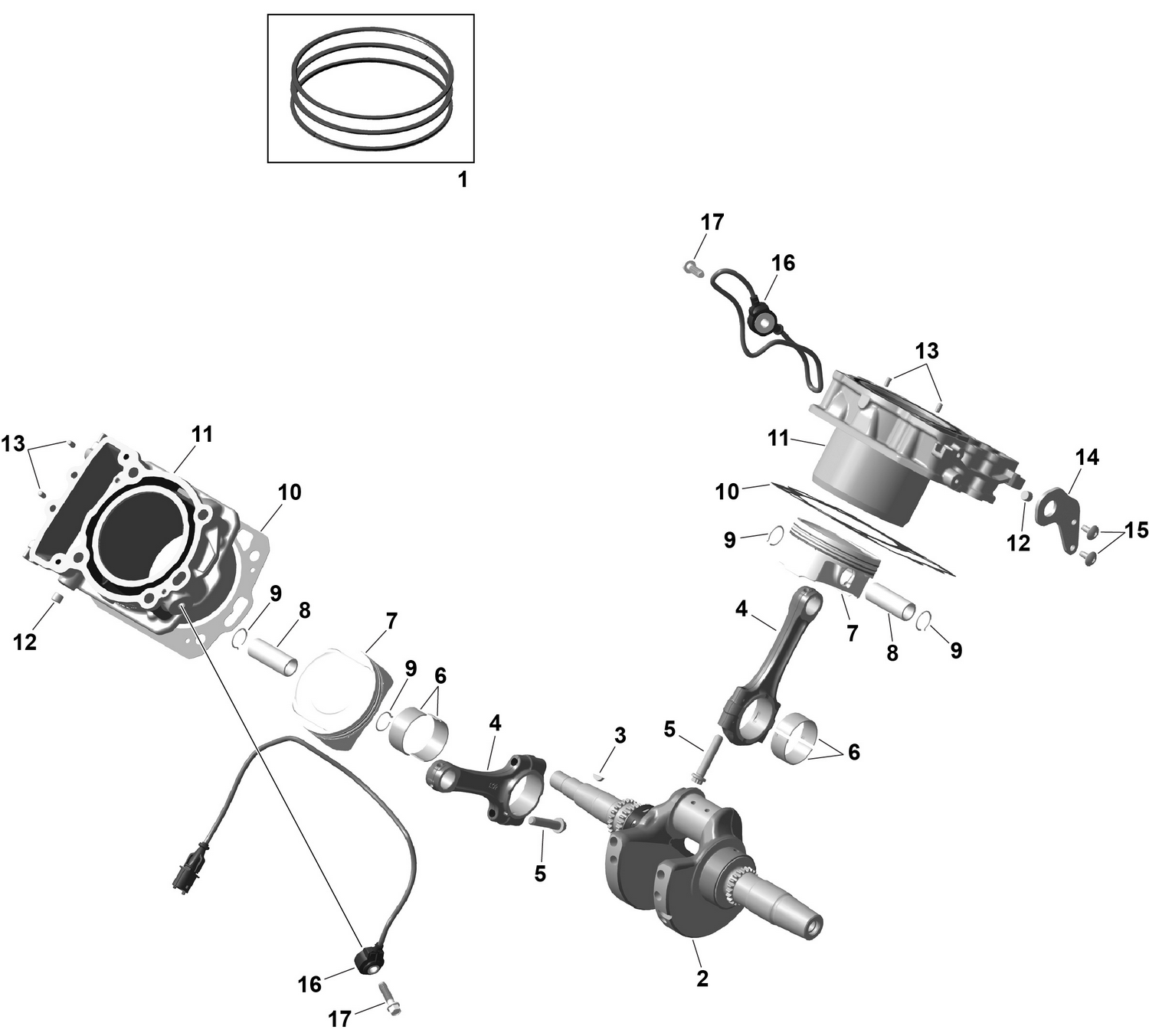

01- ROTAX - Crankshaft and Pistons
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420615177 | Piston Ring Set |
| 2 | 420295031 | Crankshaft Ass'y |
| 3 | 420246571 | Woodruff Key |
| 5 | 420641476 | Connecting Rod Screw M9 X 1/45 |
| 6 | 420233726 | Plain Bearing |
| 7 | 420686386 | Piston Ass'y |
| 8 | 420216281 | Piston Pin 20/12.1/51 |
| 9 | 420845107 | Piston Circlip |
| 11 | 420413176 | Cylinder With Sleeve Ass'y |
| 12 | 420641323 | Plug Screw M10 X 1 |
| 13 | 420929650 | Drive Pin 5 X 10 |
| 14 | 420951382 | Transport Bracket |
| 15 | 420240051 | Torx Screw M6X13 |
| 16 | 420664031 | Noise Sensor |
