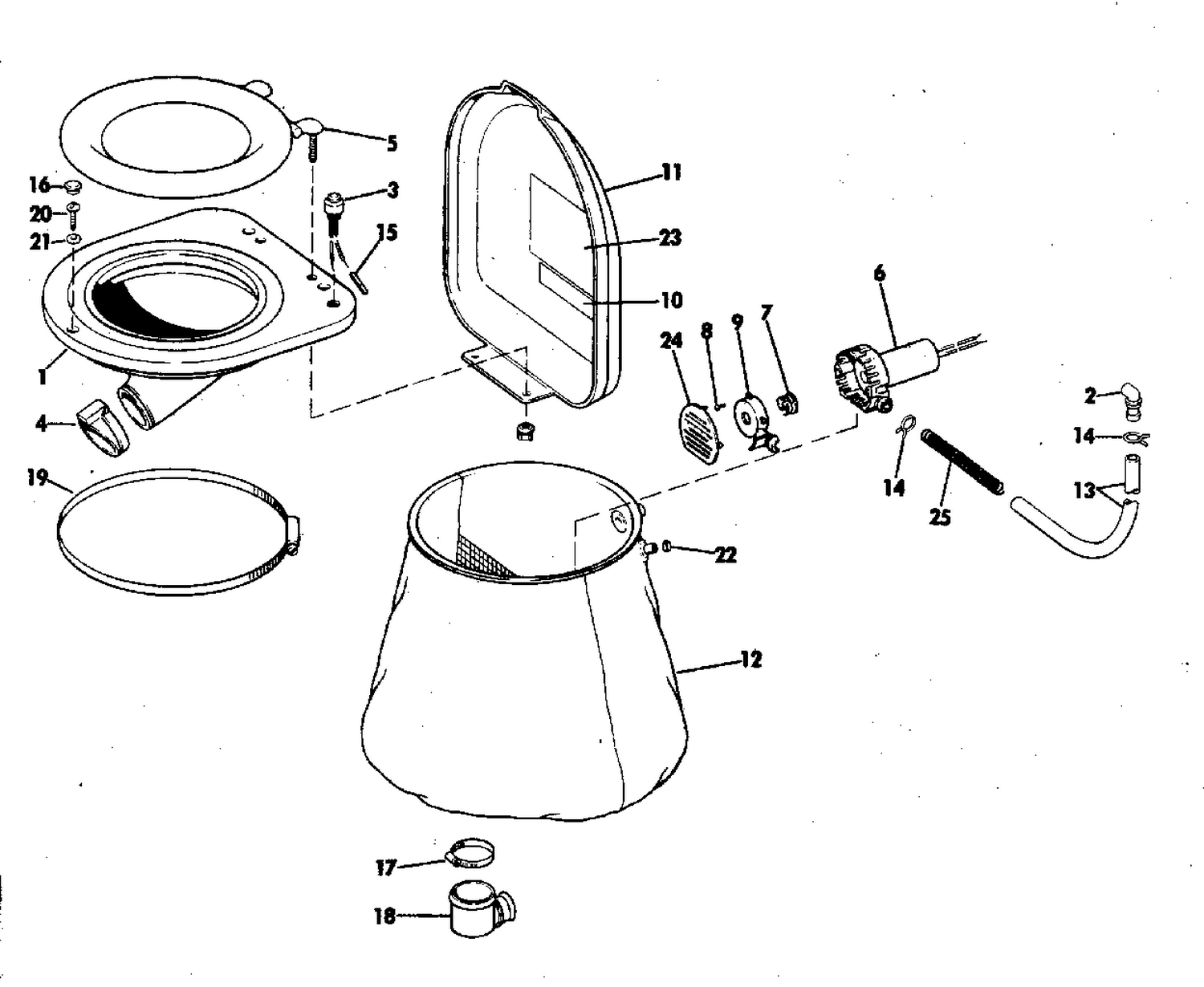

MARINE HEAD - FLEXI-MOUNT
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0122153 | BOWL, Head |
| 2 | 0122154 | FITTING, Inlet |
| 3 | 0172348 | SWITCH ASSY |
| 4 | 0122155 | FLAP VALVE |
| 5 | 0172349 | SEAT & HINGE |
| 6 | 0172549 | RECIRCULATING PUMP AY |
| 7 | 0122437 | IMPELLER, Pump |
| 8 | 0122170 | SCREW |
| 9 | 0122171 | HOUSING, Impeller |
| 10 | 0122265 | DECAL, Data flex mounting |
| 11 | 0122156 | COVER HEAD |
| 12 | 0172350 | BAG ASSY., Complete |
| 13 | 0122175 | HOSE |
| 14 | 0307899 | CLAMP |
| 16 | 0122180 | PLUG, Trim |
| 17 | 0310894 | CLAMP |
| 18 | 0122162 | ELBOW, Bag |
| 19 | 0122176 | CLAMP, Bag to bowl |
| 20 | 0122178 | SCREW, Mounting |
| 21 | 0122179 | WASHER, Bowl tie down |
| 23 | 0122181 | DECAL INSTRUCTIONS |
| 24 | 0122217 | FILTER, Pump |
| 0172347 | 0172347 | MARINE HEAD ASSY, Flex mtg |
