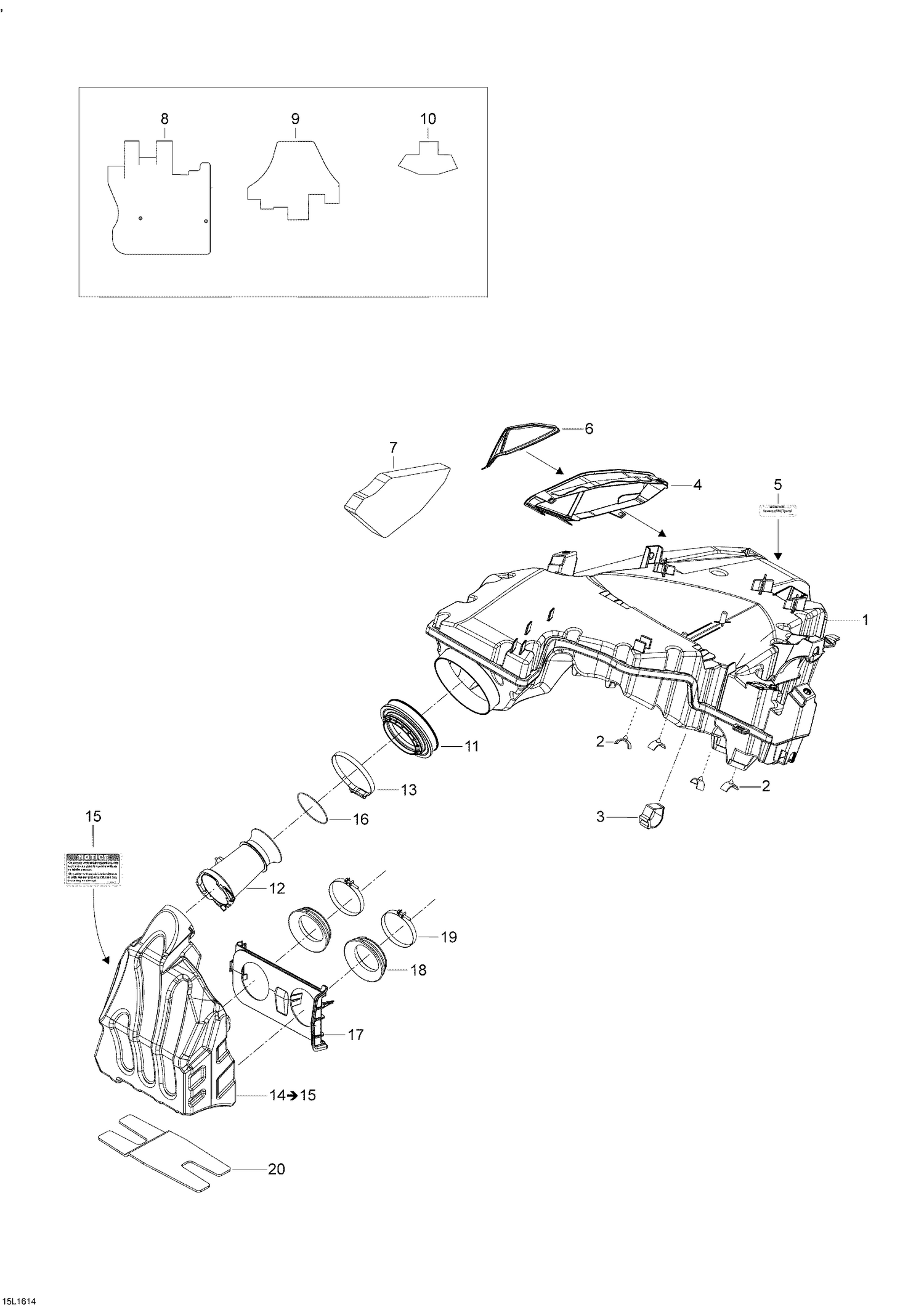

02- Air Intake System
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 508000790 | Chamber Ass'y |
| 2 | 508000537 | Stopper |
| 3 | 508000820 | Strip Velcro |
| 4 | 508001020 | Adaptor This part replaces 508000756. |
| 5 | 516006903 | Hot Parts Decal |
| 6 | 508000609 | Air Filter |
| 7 | 508000704 | Filter |
| 8 | 508000675 | Reflective Sheet |
| 9 | 508000676 | Reflective Sheet |
| 10 | 508000677 | Reflective Sheet |
| 11 | 508000548 | Boot |
| 12 | 508000662 | Flute |
| 13 | 514052983 | Clamp |
| 15 | 516005876 | Air Intake Instruction Decal |
| 16 | 293300115 | O-Ring |
| 17 | 508000613 | Adapter Plate |
| 18 | 508000614 | Intake Adapter |
| 19 | 508000346 | Clamp |
