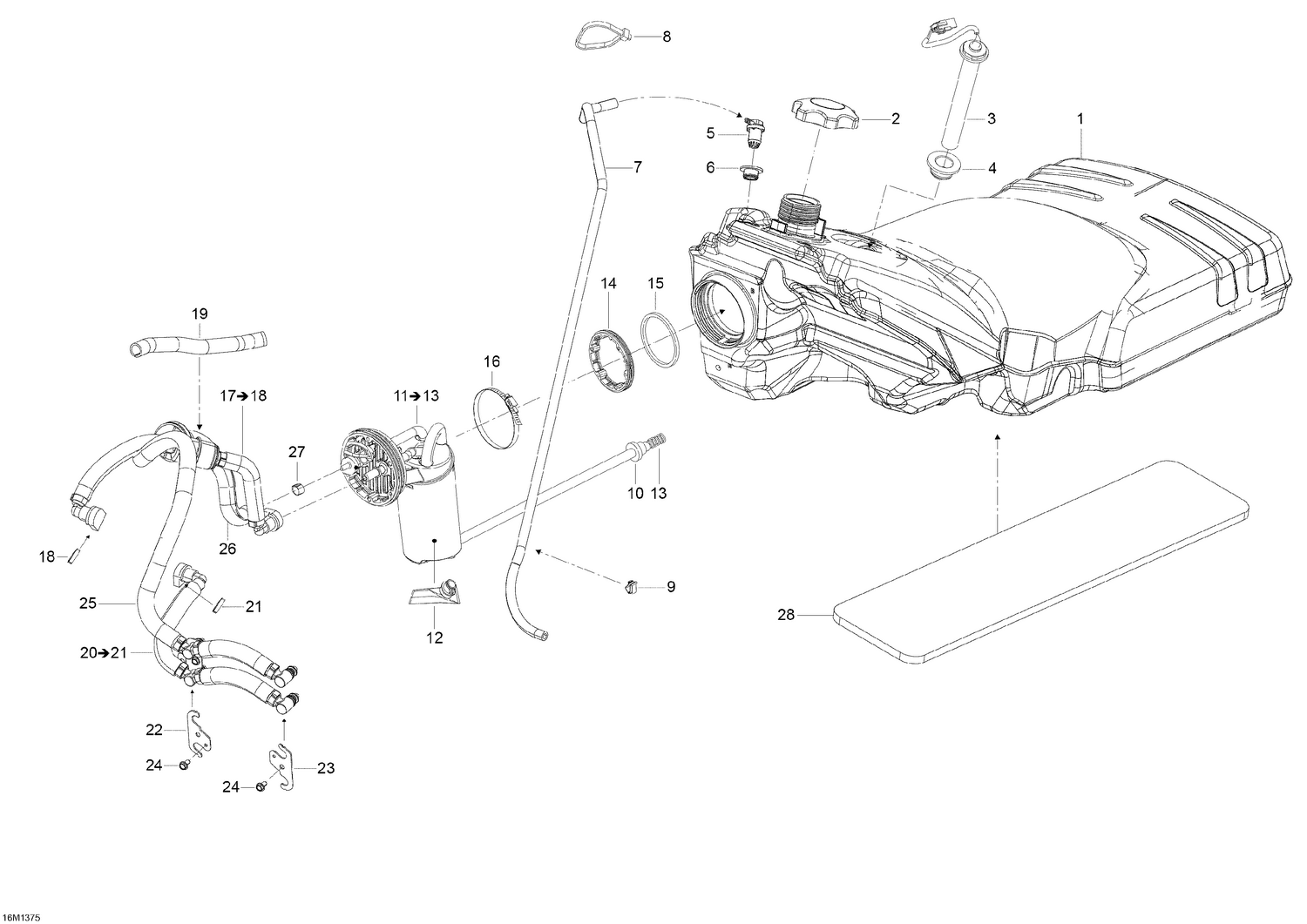

02- Fuel System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033635 | FUEL TANK - Call your local BRP dealership |
| 3 | 513033538 | Fuel Sensor |
| 4 | 293720058 | Grommet |
| 5 | 513033842 | Check Valve This part replaces 513033188. |
| 6 | 513033596 | Grommet |
| 7 | 219704410 | Polyurethane Hose 10000Mm Long |
| 8 | 414115200 | Tie-Rap 180 mm |
| 9 | 414227300 | Clip |
| 10 | 280000674 | Grommet This part replaces M28037. |
| 12 | 415129451 | Fuel Filter |
| 13 | 414872100 | Fuel Filter Strainer |
| 14 | 513033180 | Ring |
| 15 | 513033334 | Gasket |
| 16 | 513033628 | Clamp |
| 18 | 513033135 | Locking Clip |
| 19 | 219704408 | Tubing 16 Mm 1000Mm Long |
| 21 | 513033135 | Locking Clip |
| 22 | 513033542 | Bracket |
| 23 | 513033593 | Bracket |
| 24 | 207551044 | Hex. Flange Screw M5 X 10 |
| 25 | 513033631 | Hose Ass`Y |
| 26 | 513033544 | FORMED HOSE - Call your local BRP dealership |
| 27 | 293650047 | Crimp Clamp, 15.3-706R |
