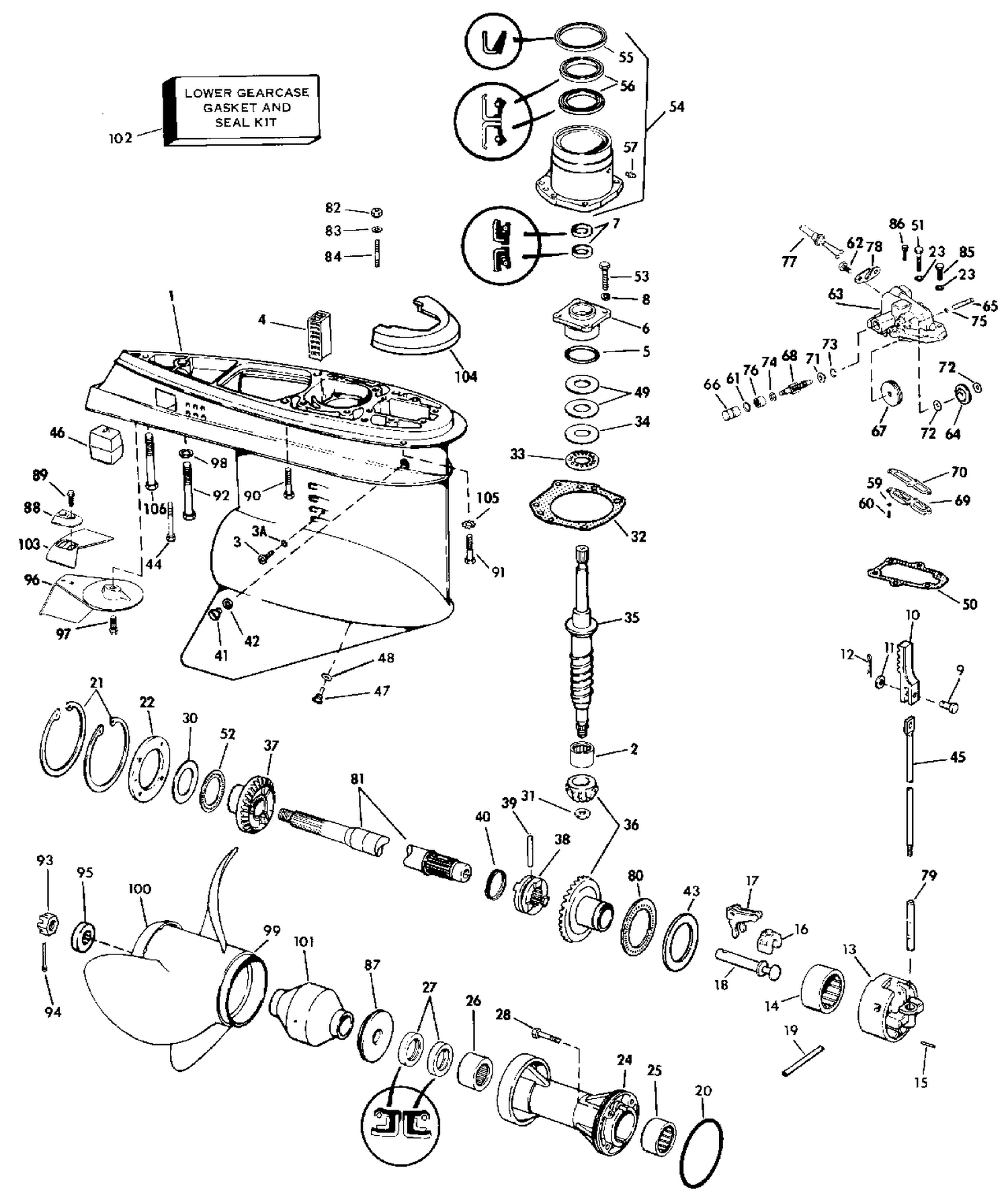

| Ref | Part Number | Description |
|---|
| 1 |
0983518 |
GEARCASE & BEARING ASSY. |
| 3A |
0307853 |
O RING |
| 6 |
0982422 |
BEARING HOUSING & SEAL |
| 9 |
0910539 |
PIN, rack to shaft rod |
| 10 |
0910311 |
RACK, Shift rod |
| 11 |
0306358 |
FLAT WASHER, Helm mounting |
| 20 |
0305123 |
O RING This part replaces 0321119. |
| 21 |
0321171 |
RETAINING RING |
| 22 |
0321174 |
PLUG, Large |
| 24 |
0397094 |
BEARING HOUSING & SEAL ASSY This part replaces 0393300. |
| 28 |
0316563 |
SCREW |
| 32 |
0910236 |
GASKET |
| 35 |
0982424 |
DRIVESHAFT ASSY |
| 36 |
0983141 |
FORWARD GEAR & PINION ASSY |
| 37 |
0910994 |
GEAR, Reverse |
| 45 |
0910309 |
SHIFT ROD |
| 54 |
0982439 |
SWIVEL BEARING RETAINER & BUSHING |
| 63 |
0982789 |
SHIFT HOUSING & SUPPORT ASSY |
| 77 |
0982563 |
CABLE ASSY |
| 79 |
0910310 |
DETENT, Shifter |
| 81 |
0395209 |
PROP SHAFT ASSY This part replaces 0391472. |
| 83 |
0329241 |
RONDELLE This part replaces 0305981. |
| 84 |
0910551 |
STUD |
| 85 |
0329894 |
SCREW |
| 87 |
0333592 |
THRUST BUSHING This part replaces 0321173. |
| 88 |
0909548 |
CLAMP, Ext rudder |
| 89 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 90 |
0330139 |
SCREW, Gearcase to exhaust hsg. |
| 91 |
0312241 |
SCREW, Trim/Tilt relay bracket This part replaces 0328697. |
| 92 |
0331998 |
SCREW, Gearcase to housing This part replaces 0330264. |
| 94 |
0309955 |
COT PIN,Prop nut |
| 96 |
0909779 |
TRIM TAB, Gearcase |
| 97 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 99 |
0389019 |
PROP, 14-1/2 x 23 SST |
| 99 |
0389923 |
PROP, 14-1/2 x 21 SST |
| 99 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 99 |
0389925 |
PROP, 15 x 16 SST |
| 99 |
0390831 |
PROP, 14-1/2 x 14 SST |
| 99 |
0391201 |
PROP, 14-1/2 x 19 |
| 99 |
0391202 |
PROP, 14-1/2 x 21 |
| 99 |
0391203 |
BEARING ASSY,Rear,std |
| 99 |
0391290 |
PROP, 15 x 17 SST |
| 99 |
0391535 |
PROP, 15-1/2 x 15 |
| 99 |
0391536 |
PROP, 15-1/2 x 13 |
| 99 |
0765187 |
PROPELLER, WDEX Models This part replaces 0391200. |
| 102 |
0982946 |
LOWER GEARCASE GASKET & SEAL KIT |
| 103 |
0911575 |
EXTENSION, Rudder |
| 104 |
0983494 |
ANODE |
| 0982561 |
0982561 |
SHIFT ASSY |
| 0983506 |
0983506 |
GEARCASE ASSY, Complete |
