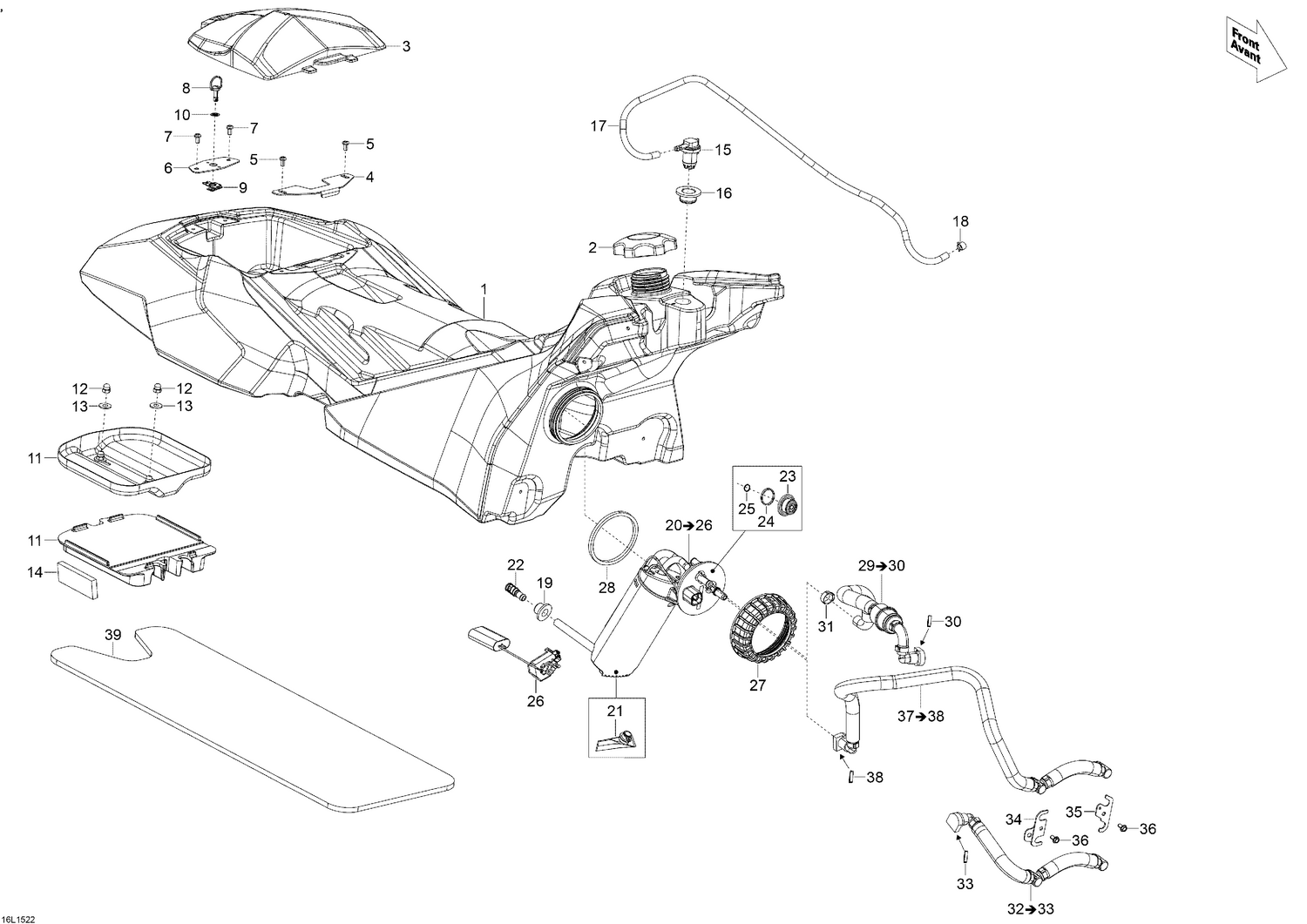

02- Fuel System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 513033725 | Fuel Tank |
| 2 | 513033723 | Cap |
| 3 | 513033705 | Battery Cover |
| 4 | 513033775 | Lock Plate |
| 5 | 205951046 | Socket HD Screw M5 x 10 |
| 6 | 513033731 | Lock Plate |
| 7 | 205951046 | Socket HD Screw M5 x 10 |
| 8 | 513033735 | Quarter Turn Fastener |
| 9 | 513033736 | Quarter Turn Fastener Plate |
| 10 | 732610072 | Push Nut |
| 11 | 513033751 | Fuel Tank Support |
| 12 | 232361493 | Hex. Domed Nut M6 |
| 13 | 234062410 | Flat Washer 6 mm |
| 15 | 513033842 | Check Valve This part replaces 513033188. |
| 16 | 513033596 | Grommet |
| 17 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 18 | 414554800 | Spring Clamp |
| 19 | 293300184 | Grommet |
| 21 | 415129451 | Fuel Filter, Pump |
| 22 | 414872100 | Fuel Filter, Hose |
| 23 | 415129821 | Regulator |
| 24 | 415129822 | O Ring |
| 25 | 415129823 | O Ring |
| 26 | 415130108 | Fuel Level Sensor This part replaces 415129671. |
| 27 | 513033040 | Fuel Pump Nut |
| 28 | 513033707 | Gasket |
| 30 | 513033135 | Locking Clip |
| 31 | 293650053 | Crimp Clamp |
| 33 | 513033135 | Locking Clip |
| 34 | 513033542 | RH Bracket |
| 35 | 513033593 | LH Bracket |
| 36 | 207551044 | Hex. Flange Screw M5 X 10 |
| 38 | 513033135 | Locking Clip |
