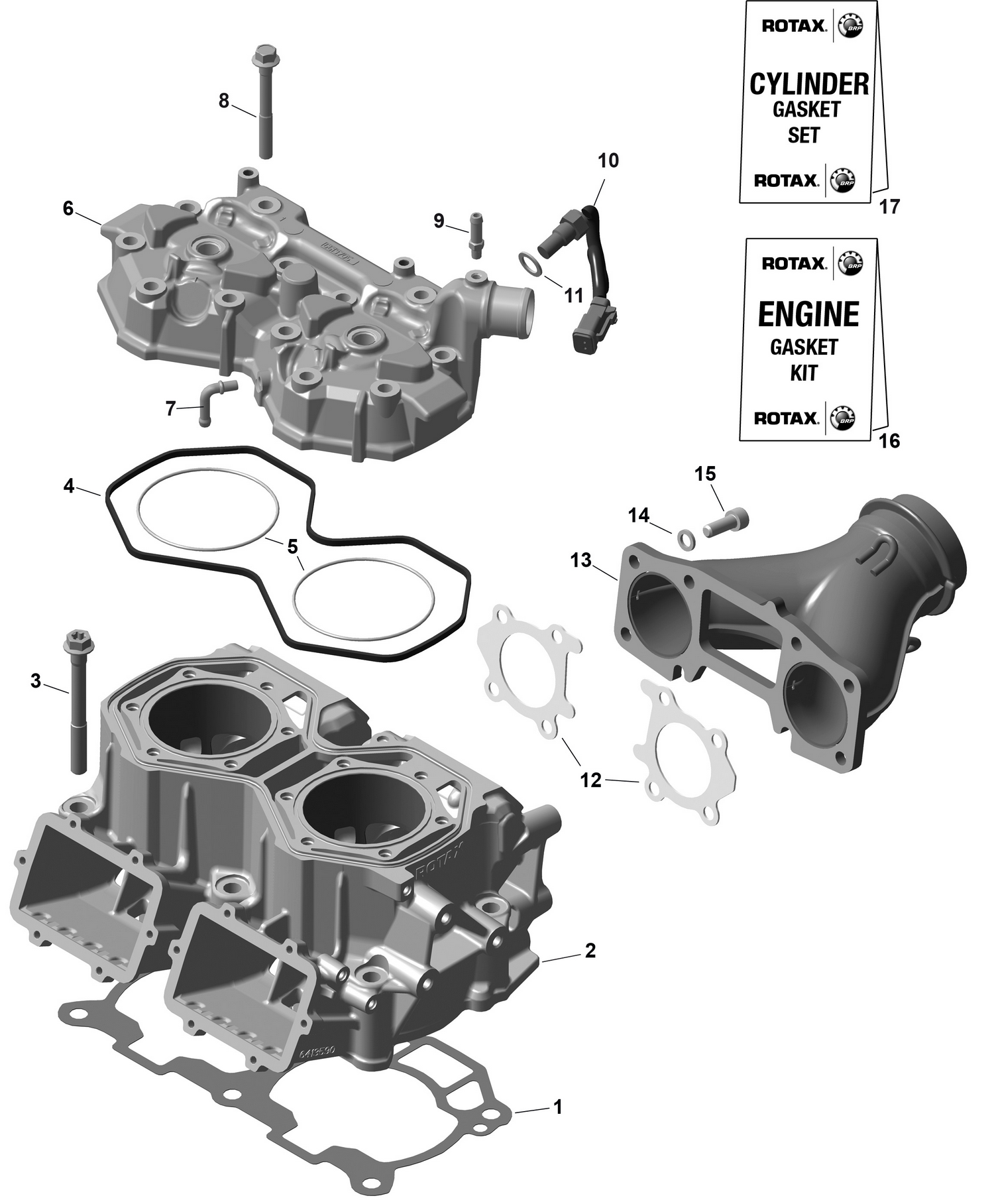

01- ROTAX - Cylinder Head
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420923748 | Cylinderblock Plasma |
| 3 | 420441187 | Torx Flange Screw M10 X 90 -SW 13/T50 |
| 6 | 420613706 | Head Cylinder Cover |
| 7 | 420924802 | Fittin 90D |
| 8 | 420640959 | Collar Hex Screw M8 X 68.5 |
| 9 | 420924724 | Hose Nipple |
| 10 | 420664509 | Temperature Sensor This part replaces 420664508. |
| 13 | 420873035 | Exhaust Manifold Ass'y |
| 14 | 420427290 | Washer |
| 15 | 420841053 | Allen Screw M8X22 |
| 16 | 420894370 | Engine Gasket Set |
