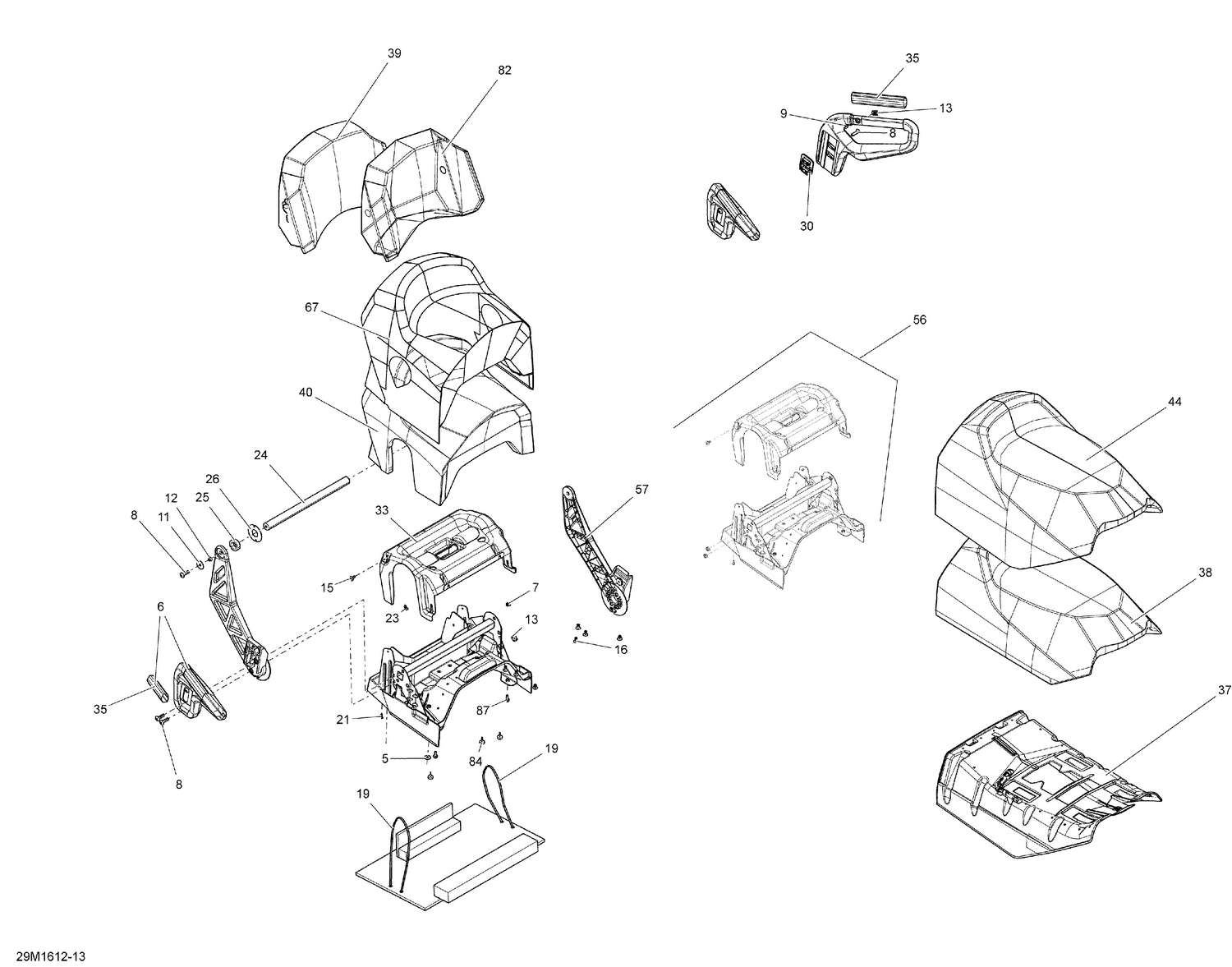

09- Seat
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 5 | 224061201 | Flat Washer |
| 6 | 510005851 | RH Handle Ass'y |
| 6 | 510006713 | LH Handle Ass'y This part replaces 510005850. |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 8 | 250000745 | Hex Torx Truss M8 X30 This part replaces 250000197. |
| 9 | 250000721 | Torx Truss Screw M6 X 16 |
| 11 | 250200128 | Flat Washer 8 mm |
| 12 | 271000558 | Spacer |
| 13 | 293100003 | Nut Welded, M6 |
| 16 | 293150104 | Pop Rivet 3/16" |
| 19 | 293750008 | Tie Wrap 368 mm |
| 21 | 390402300 | Pop Rivet 3/16" |
| 23 | 414644300 | Black, Dart |
| 24 | 510004377 | Upper Backrest Axle |
| 25 | 510004378 | Rubber Shim |
| 26 | 510004379 | Washer |
| 30 | 510006602 | Passenger Handle Trim This part replaces 510004405. |
| 33 | 510004423 | Foam Support |
| 35 | 510004449 | Handle Grip |
| 35 | 510005814 | Reinforcement Handle |
| 37 | 510004775 | Front Seat Base |
| 38 | 510004777 | Front Seat Foam |
| 39 | 510004782 | Backrest Foam |
| 40 | 510004791 | Rear Seat Foam |
| 44 | 510005181 | Seat Cover |
| 56 | 510005535 | Seat Base Ass'y |
| 57 | 510005538 | LH Arm, Black |
| 57 | 510005539 | RH Arm, Black |
| 67 | 510005399 | Rear Seat Cover |
| 82 | 510005309 | Backrest Cover |
| 84 | 708000759 | Rubber Stopper |
