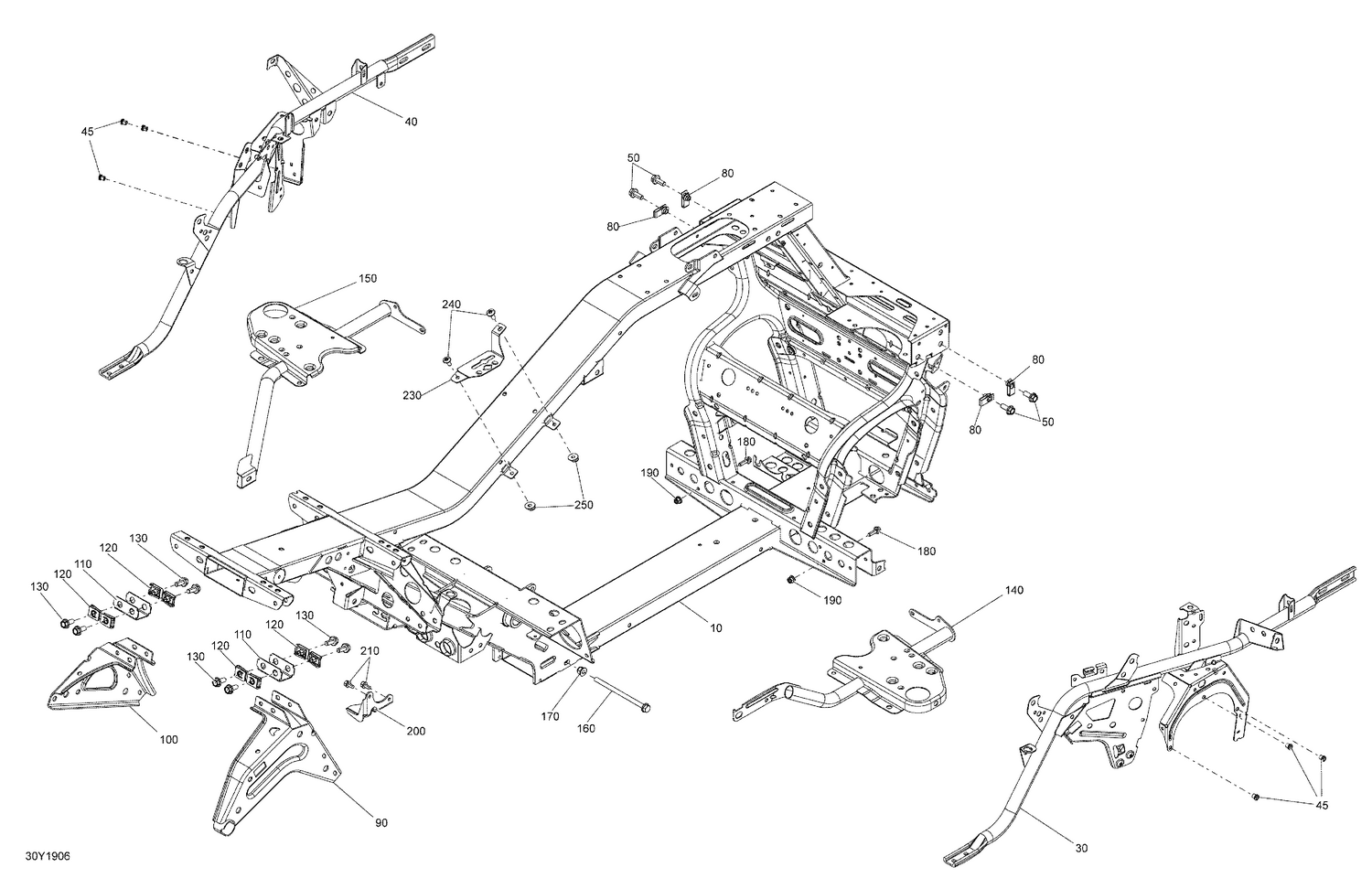

09- Frame
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705204866 | Frame |
| 30 | 705203016 | RH Painted Lateral Support Ass'y |
| 40 | 705203017 | LH Painted Lateral Support Ass'y |
| 45 | 293450268 | Insert M5 X 0.8 |
| 50 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 80 | 250100118 | Panel Nut M8 X 1.25 |
| 90 | 705203959 | Rear Support RH |
| 100 | 705203969 | Rear Support LH |
| 110 | 705202484 | U-Bracket |
| 120 | 250100069 | Panel Nut M8 X 1.25 |
| 130 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 140 | 705202625 | RH Painted Lower Lateral Support |
| 150 | 705202626 | LH Painted Lower Lateral Support |
| 160 | 230683034 | Hex. Flange Screw M8 X 130 |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 180 | 207662044 | Hex. Flange Screw M6 X 20 |
| 190 | 233261466 | Hex. Flange Elastic Nut M6 |
| 200 | 705202587 | Stopper Swing Arm |
| 210 | 210261250 | Hex. Flange Screw M6 X 12 |
| 230 | 705205078 | Latch Support |
| 240 | 250000717 | Torx Head Screw M6 X 16 |
