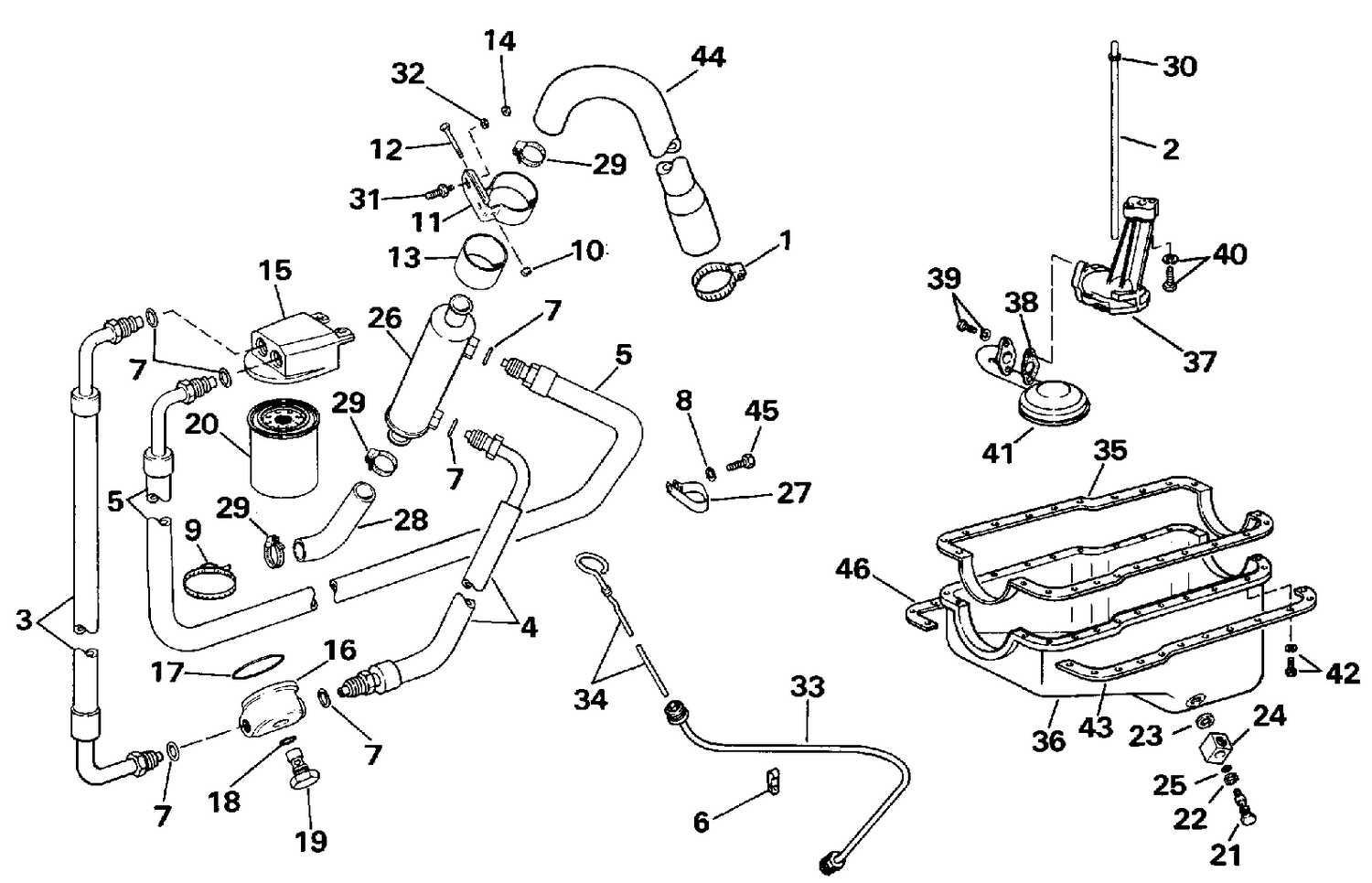

| Ref | Part Number | Description |
|---|
| 1 |
3853786 |
CLAMP INSTRUMENT CABLE This part replaces 0980577. |
| 2 |
0914125 |
SHAFT, Oil pump |
| 3 |
0986237 |
HOSE, Adapter to filter |
| 4 |
0986239 |
HOSE, Adapter to cooler |
| 5 |
0986238 |
HOSE, Filter to cooler |
| 6 |
3853261 |
CLAMP, Fuel line This part replaces 0914531. |
| 8 |
0303269 |
L'WASHER, Upper |
| 10 |
0308335 |
CLAMP, Coil |
| 11 |
3852218 |
BRACKET, Oil cooler This part replaces 0383448. |
| 13 |
3853236 |
SLEEVE, Ignition coil This part replaces 0914455. |
| 14 |
0320266 |
LOCKNUT, Cooler bracket |
| 15 |
3854592 |
ADAPTER, Oil filter This part replaces 0986365. |
| 16 |
3854414 |
Adaptor This part replaces 0914474. |
| 17 |
0912465 |
O-RING, Adapter |
| 19 |
3854415 |
RETAINER, Adapter This part replaces 0912547. |
| 20 |
0174796 |
OIL FILTER |
| 21 |
3852609 |
RETAINER, Oil drain This part replaces 0912734. |
| 23 |
0912783 |
WASHER, Fitting |
| 24 |
0913364 |
FITTING, Oil drain |
| 26 |
3853969 |
OIL COOLER This part replaces 0986373. |
| 27 |
3852837 |
CLAMP, Hoses to cylinder head This part replaces 0913798. |
| 28 |
0913938 |
HOSE, Cooler to cooler |
| 29 |
0912627 |
CLAMP |
| 30 |
3853005 |
RETAINER, Oil pump shaft This part replaces 0914127. |
| 31 |
3852599 |
STUD, Oil cooler to engine This part replaces 0912549. |
| 33 |
0986570 |
TUBE, Oil drain |
| 34 |
3850474 |
GAUGE, Oil level This part replaces 0984526. |
| 35 |
0914799 |
GASKET SET, Oil pan |
| 36 |
0986742 |
OIL PAN |
| 37 |
0985106 |
OIL PUMP ASSY |
| 38 |
0913011 |
GASKET, Pick-Up tube |
| 39 |
0914129 |
SCREW, Oil pan |
| 40 |
0914130 |
BOLT, Oil pump to block |
| 41 |
0914126 |
OIL PICKUP TUBE |
| 42 |
0914800 |
SCREW, Oil pan |
| 43 |
0914797 |
REINFORCEMENT, Oil pan, port |
| 44 |
0913939 |
HOSE, Gimbal to oil cooler |
| 45 |
0306539 |
BOLT, Distributor |
