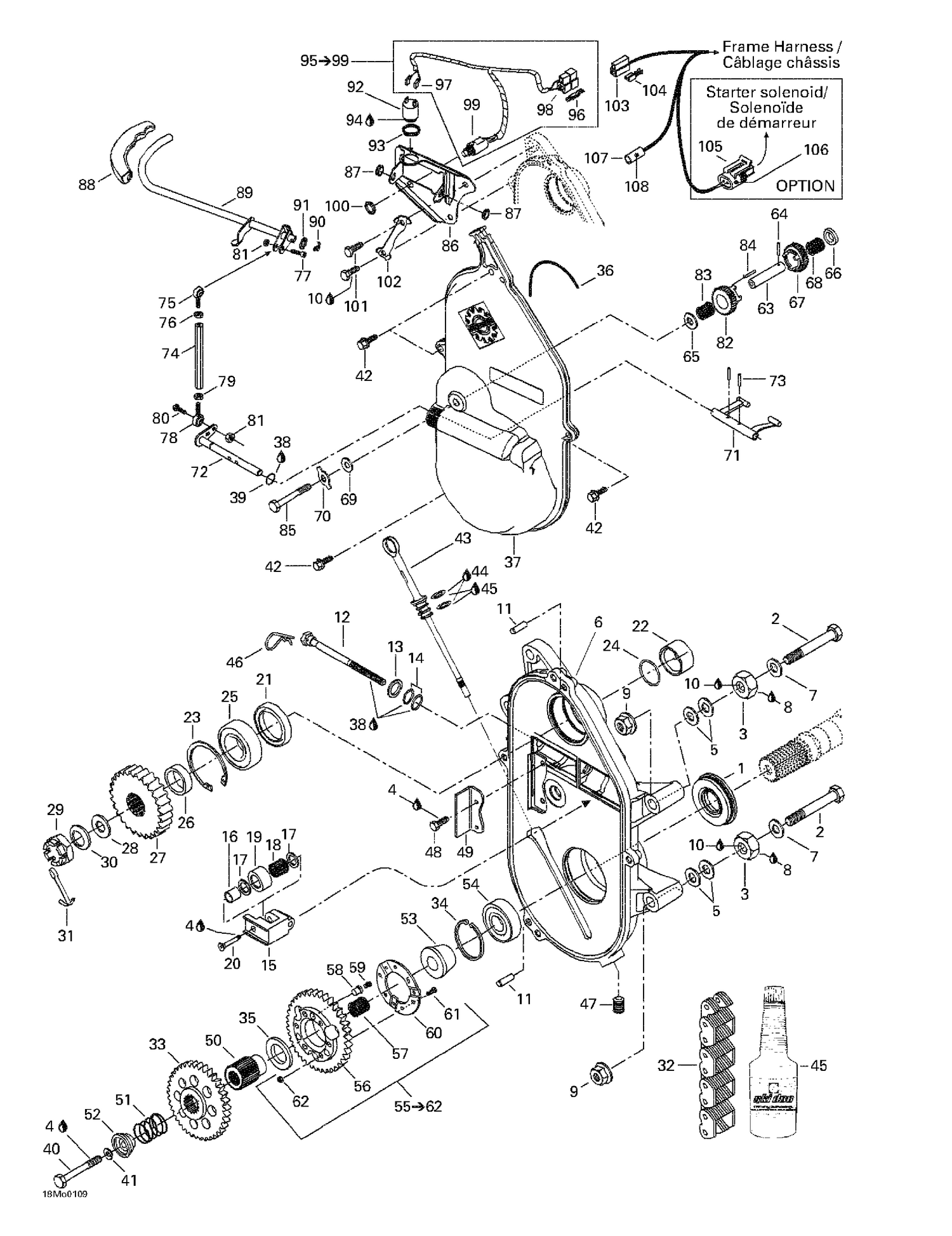

| Ref | Part Number | Description |
|---|
| 1 |
504151918 |
Oil Seal Ass'y |
| 2 |
207108044 |
HEX. SCREW M10 X 80 - Call your local BRP dealership |
| 3 |
504083800 |
Spacer |
| 4 |
293800005 |
Loctite 271, 10 ml |
| 5 |
504073700 |
WASHER - Call your local BRP dealership |
| 6 |
504151776 |
CHAINCASE - Call your local BRP dealership |
| 7 |
503183800 |
Washer |
| 8 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 9 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
732620001 |
CYLINDER PIN - Call your local BRP dealership |
| 12 |
732601314 |
ADJUSTMENT SCREW - Call your local BRP dealership |
| 13 |
234001410 |
Flat Washer 10 mm |
| 14 |
414484400 |
O-Ring |
| 15 |
504151951 |
Chain Tensioner |
| 16 |
504080200 |
SPACER - Call your local BRP dealership |
| 17 |
504080300 |
WASHER - Call your local BRP dealership |
| 18 |
405403000 |
NEEDLE BEARING - Call your local BRP dealership |
| 19 |
414531300 |
ROLLER - Call your local BRP dealership |
| 20 |
732601144 |
SCREW - Call your local BRP dealership |
| 23 |
371901700 |
CIRCLIP - Call your local BRP dealership |
| 25 |
293350115 |
Ball Bearing This part replaces 504152006. |
| 26 |
504147200 |
SHIM - Call your local BRP dealership |
| 33 |
504096800 |
SLIDING GEAR, 56 TEETH - Call your local BRP dealership |
| 34 |
415064300 |
CIRCLIP, INTERIOR - Call your local BRP dealership |
| 35 |
504094300 |
WASHER - Call your local BRP dealership |
| 36 |
415046400 |
O-Ring |
| 37 |
504151845 |
COVER - Call your local BRP dealership |
| 38 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 39 |
414773200 |
O-RING - Call your local BRP dealership |
| 40 |
207005044 |
Hex. Screw M10 X 1.5 X 50 |
| 41 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 42 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 43 |
504151750 |
FILLER CAP ASSY - Call your local BRP dealership |
| 44 |
414969400 |
O-RING - Call your local BRP dealership |
| 46 |
414575600 |
Hair Pin |
| 47 |
504151921 |
Plug 1/8”-27 |
| 48 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 49 |
504152036 |
SLIDER CHAIN - Call your local BRP dealership |
| 50 |
504097700 |
Coupling Axle |
| 51 |
504153178 |
Spring Release This part replaces 504096600. |
| 52 |
504151964 |
CAP - Call your local BRP dealership |
| 53 |
504076300 |
RETAINING RING - Call your local BRP dealership |
| 54 |
504152005 |
Ball Bearing |
| 57 |
414772600 |
NEEDLE BEARING - Call your local BRP dealership |
| 58 |
504076800 |
DRIVE PIN - Call your local BRP dealership |
| 59 |
414772700 |
SPRING - Call your local BRP dealership |
| 60 |
504076100 |
RETAINER RING - Call your local BRP dealership |
| 61 |
207152044 |
Hex. Screw M5 X 20 |
| 62 |
233551416 |
NUT-LOCK SPRING DIN.980V - Call your local BRP dealership |
| 63 |
504083100 |
Reverse Shaft |
| 64 |
250400010 |
Rolled Pin M3 X 10 |
| 65 |
504077300 |
Spacer |
| 66 |
504078700 |
Ring |
| 68 |
414773100 |
NEEDLE BEARING - Call your local BRP dealership |
| 69 |
504082900 |
Washer |
| 70 |
504087700 |
TAB LOCK - Call your local BRP dealership |
| 71 |
504075800 |
Fork |
| 72 |
504151806 |
Fork Axle |
| 73 |
414772500 |
SPRING PIN - Call your local BRP dealership |
| 74 |
504151814 |
TIE ROD - Call your local BRP dealership |
| 75 |
414773400 |
RH BALL-JOINT - Call your local BRP dealership |
| 76 |
232061414 |
Hex. Nut M6 |
| 77 |
205062560 |
Socket Head Screw M6 X 25 |
| 78 |
414773500 |
LH BALL-JOINT - Call your local BRP dealership |
| 79 |
232066414 |
LH HEX. NUT M6 - Call your local BRP dealership |
| 80 |
207162044 |
Hex. Screw M6 X 20 |
| 81 |
232561414 |
Elastic Stop Nut M6 |
| 83 |
414805000 |
NEEDLE BEARING - Call your local BRP dealership |
| 84 |
570048600 |
Alignement Rod |
| 85 |
207089044 |
Hex. Screw M8 X 90 |
| 86 |
504151823 |
SUPPORT, REVERSE - Call your local BRP dealership |
| 87 |
504151818 |
BUSHING - Call your local BRP dealership |
| 88 |
570064600 |
Grip |
| 89 |
504151810 |
HANDLE - Call your local BRP dealership |
| 90 |
371800800 |
COTTER PIN - Call your local BRP dealership |
| 91 |
503189264 |
WASHER - Call your local BRP dealership |
| 92 |
414805102 |
DC Horn |
| 93 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 96 |
409210000 |
MALE TERMINAL - Call your local BRP dealership |
| 97 |
409010300 |
Female Terminal |
| 98 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| 99 |
Not |
Available As Spare Part - Push Button Switch |
| 100 |
250100012 |
BRASS NUT - Call your local BRP dealership |
| 101 |
207103544 |
Hex. Screw M10 X 35 |
| 102 |
507029900 |
Locking Tab |
| 103 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| 104 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership |
| 105 |
278001113 |
Male Connector, 2 Circuits |
| 106 |
278001114 |
Female Terminal |
| 107 |
415079200 |
Hose |
