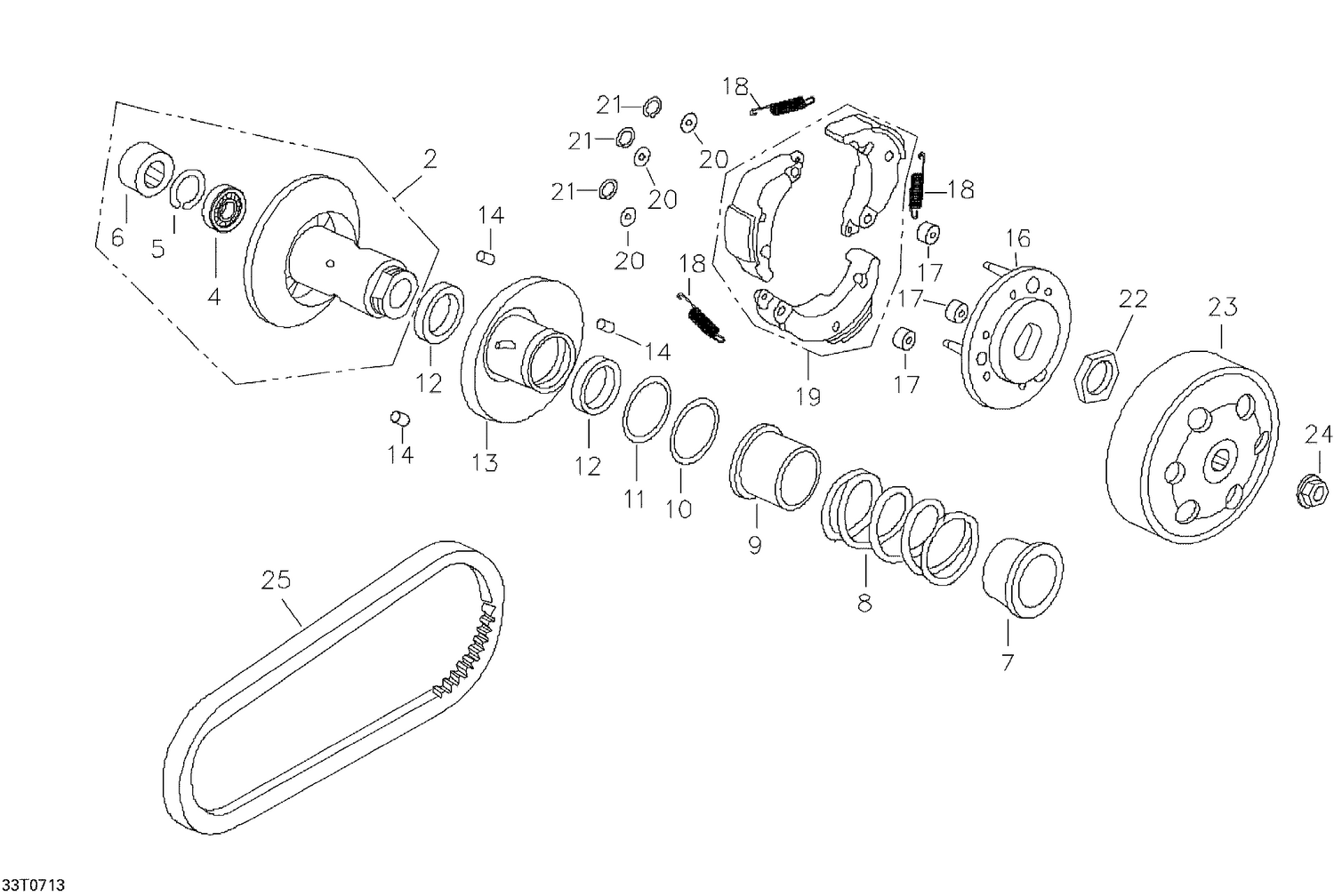

05- Pulley System
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 4 | Not | Available As Spare Part - Radial Ball Bearing (6901lu) |
| 5 | Not | Available As Spare Part - Internal Circlip |
| 6 | Not | Available As Spare Part - Needle Bearing (hks-17 X 25 X 18) |
| 7 | A23238133000 | SEAT-SPRING - Call your local BRP dealership |
| 8 | A23233133000 | SPRING-COMPRESSION - Call your local BRP dealership |
| 9 | A23237133000 | SEAT-SPRING - Call your local BRP dealership |
| 10 | A91336133000 | Oil Ring |
| 11 | A91339133000 | Oil Ring |
| 12 | A9650034393 | Oil Ring |
| 13 | A23220133000 | Flasque Coulis.*half-outher |
| 14 | A23225133000 | DOWEL PIN - Call your local BRP dealership |
| 16 | A22350133000 | Plate Comp Drive |
| 17 | A22804133000 | Rubber Bushing |
| 18 | A22401133000 | SPRING CLUTCH - Call your local BRP dealership |
| 19 | A22535133000 | Clutch Weight Set |
| 20 | A941010612010 | WASHER FLAT - Call your local BRP dealership |
| 21 | A945110600E | CIRCLIP EXTERNAL - Call your local BRP dealership |
| 22 | A90202120000 | Hex. Nut |
| 23 | A22100133000 | CLUTCH COVER - Call your local BRP dealership |
| 24 | A9405010000 | HEX.FLANGE NUT WITH SERRATION M10 - Call your local BRP dealership |
