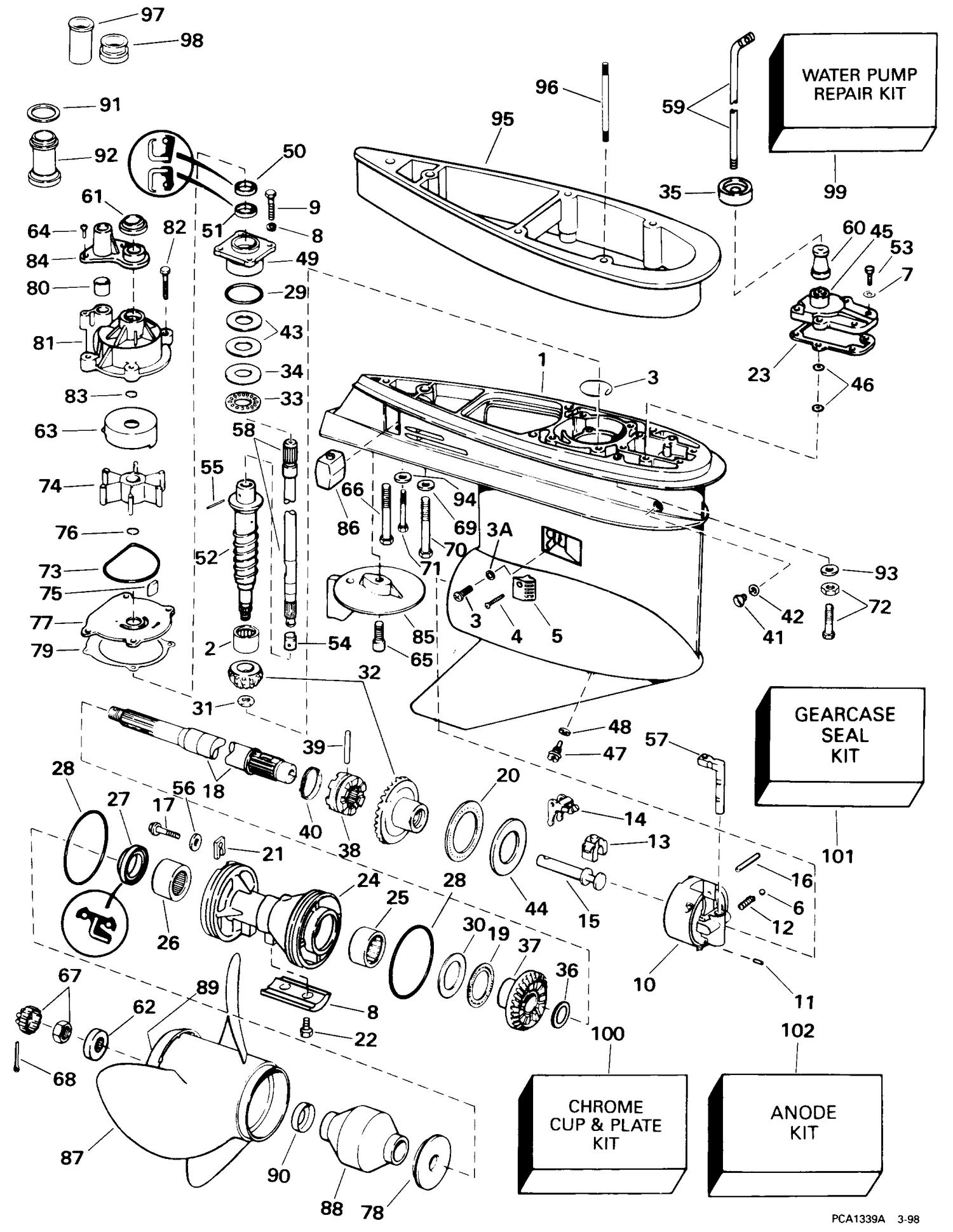

| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 27 |
0341281 |
SEAL |
| 28 |
0305123 |
O RING |
| 58 |
5000616 |
DRIVESHAFT ASSY., Upper This part replaces 0439583. |
| 58 |
5000621 |
DRIVESHAFT ASSY., Upper This part replaces 0439584. |
| 59 |
0342249 |
SHIFT ROD |
| 59 |
0342994 |
SHIFT ROD |
| 60 |
0328019 |
SPACER, Shift rod |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 66 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 66 |
0333278 |
SCREW, Gearcase to housing, rear |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 70 |
0333279 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 78 |
0127212 |
BAGUE, de butée |
| 83 |
0331188 |
O-Ring |
| 85 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 87 |
0389924 |
PROP, 14-1/2 x 19 SST |
| 91 |
0333272 |
SEAL, Spacer to housing |
| 92 |
0333275 |
SPACER, Impeller housing |
| 95 |
0334552 |
EXTENSION, Gearcase |
| 96 |
0333270 |
STUD, Exhaust housing |
| 99 |
5001595 |
Water Pump Repair Kit This part replaces 0435929. |
| 100 |
0435526 |
CHROME CUP & PLATE KIT |
| 101 |
5006373 |
GEARCASE SEAL KIT This part replaces 0439141. |
| 0439506 |
5004639 |
G-Case .44 Std Os This part replaces 0439506. |
| 0439982 |
5004639 |
G-Case .44 Std Os This part replaces 0439982. |
