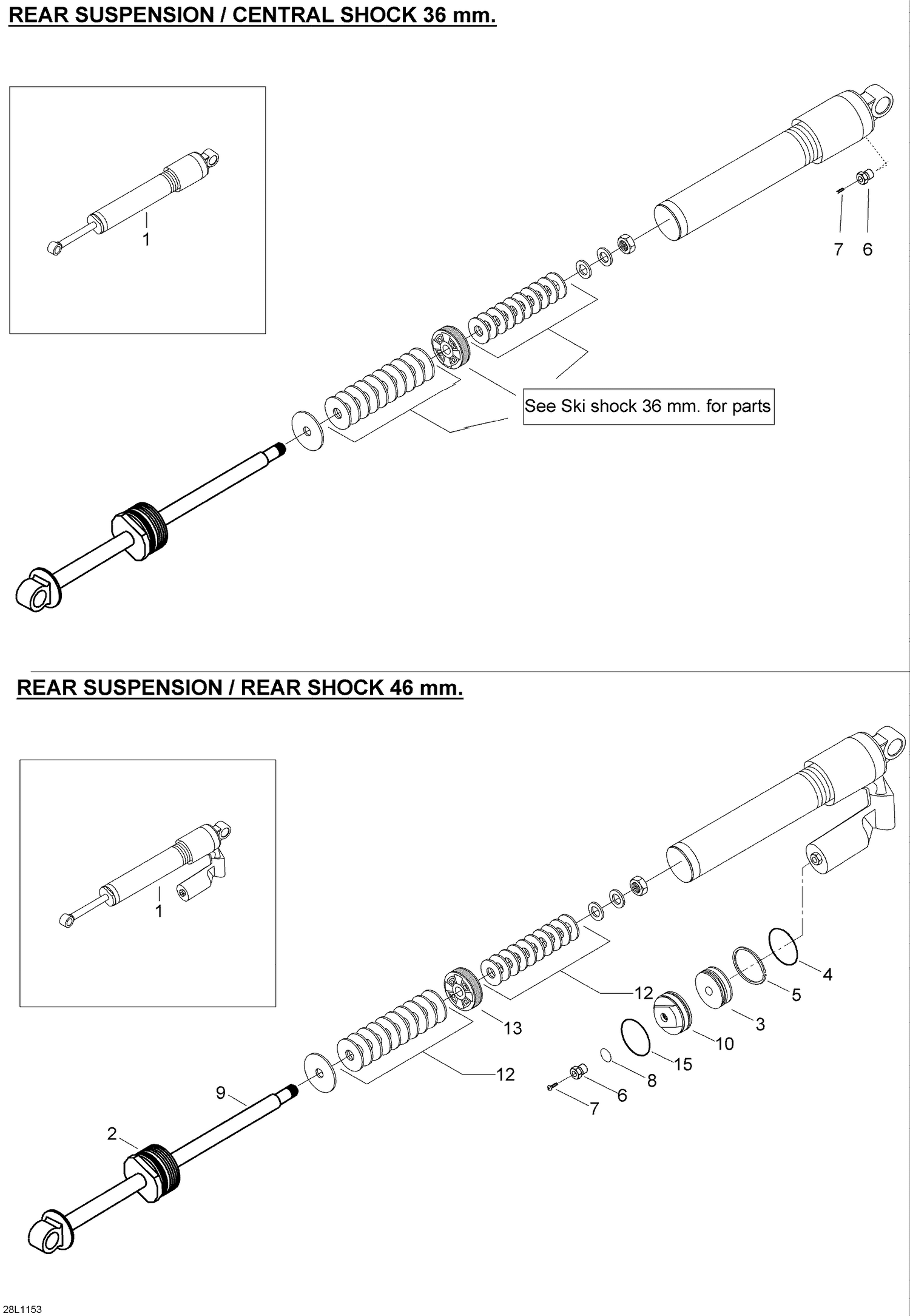

07- Take Apart Shock rear

07- Take Apart Shock rear

Parts (71)

RefPart NumberDescription
1 619330003 Shock, front arm (503192200)
1 619330005 Shock, rear arm (503192303)
2 230060 Seal carrier assy 40 mm.
3 Not Available As Spare Part - Floating piston
4 415093807 O-Ring
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 619300021 Rod ass'y, rear arm
9 Not Available As Spare Part - Rod ass'y, front arm
10 619300009 Seal carrier assy
12 230029 Shim 40 mm. Shim 40 mm. 20 X 0,114
12 230030 Shim 40 mm. Shim 40 mm. 20 X 0,152
12 230031 Shim 40 mm. Shim 40 mm. 20 X 0,203
12 230032 Shim 40 mm. Shim 40 mm. 20 X 0,254
12 230033 Shim 40 mm. Shim 40 mm. 34 X 0,114
12 230034 Shim 40 mm. Shim 40 mm. 34 X 0,152
12 230035 Shim 40 mm. Shim 40 mm. 34 X 0,203
12 230036 Shim 40 mm. Shim 40 mm. 34 X 0,254
12 230037 Shim 40 mm. Shim 40 mm. 36 X 0,114
12 230040 Shim 40 mm. Shim 40 mm. 38 X 0,152
12 230041 Shim 40 mm. Shim 40 mm. 38 X 0,203
12 230042 Shim 40 mm. Shim 40 mm. 38 X 0,254
12 230082 Shim 40 mm. Shim 40 mm. 32 X 0,114
12 503189011 Leaf Valve Ø22 X 0.114 (C46)
12 503189014 Leaf Valve Ø22 X 0.254 (C46)
12 503189015 Leaf Valve Ø22 X 0.305 (C46)
12 503189016 Leaf Valve Ø24 X 0.114 (C46)
12 503189017 Leaf Valve Ø24 X 0.152 (C46)
12 503189018 Leaf Valve Ø24 X 0.203 (C46)
12 503189019 Leaf Valve Ø24 X 0.254 (C46)
12 503189020 Leaf Valve Ø24 X 0.305 (C46)
12 503189021 Leaf Valve Ø26 X 0.114 (C46)
12 503189023 Leaf Valve Ø26 X 0.203 (C46)
12 503189027 Leaf Valve Ø28 X 0.152 (C46)
12 503189030 Leaf Valve Ø28 X 0.305 (C46)
12 503189031 Leaf Valve Ø30 X 0.114 (C46)
12 503189033 Leaf Valve Ø30 X 0.203 (C46)
12 503189035 Leaf Valve Ø30 X 0.305 (C46)
12 503189036 Leaf Valve Ø36 X 0.152 (C46)
12 503189038 Leaf Valve Ø36 X 0.254 (C46)
12 503189039 Leaf Valve Ø40 X 0.152 (C46)
12 503189040 Leaf Valve Ø40 X 0.203 (C46)
12 503189041 Leaf Valve Ø40 X 0.254 (C46)
12 619300059 Shim 40 mm. Shim 40 mm. 32 X 0,254
12 619300060 Shim 40 mm. Shim 40 mm. 17 X 0,114
12 619300067 Shim 40 mm. Shim 40 mm. 18 X 0,152
12 619300068 Shim 40 mm. Shim 40 mm. 18 X 0,114
12 619300069 Shim 40 mm. Shim 40 mm. 17 X 0,203
12 619300070 Shim 40 mm. Shim 40 mm. 34 X 0,305
12 619300097 Shim 40 mm. Shim 40 mm. 20 X 0,305
12 619300098 Shim 40 mm. Shim 40 mm. 22 X 0,203
12 619300099 Shim 40 mm. Shim 40 mm. 26 X 0,254
12 619300100 Shim 40 mm. Shim 40 mm. 26 X 0,305
12 619300101 Shim 40 mm. Shim 40 mm. 28 X 0,114
12 619300102 Shim 40 mm. Shim 40 mm. 28 X 0,203
12 619300103 Shim 40 mm. Shim 40 mm. 28 X 0,254
12 619300104 Shim 40 mm. Shim 40 mm. 30 X 0,152
12 619300105 Shim 40 mm. Shim 40 mm. 36 X 0,305
12 619300106 Shim 40 mm. Shim 40 mm. 38 X 0,305
12 619300107 Shim 40 mm. Shim 40 mm. 40 X 0,305
12 619300113 Shim 40 mm. Shim 40 mm. 30 X 0,254
12 619300140 Shim 40 mm. Shim 40 mm. 22 X 0,152
12 619300141 Shim 40 mm. Shim 40 mm. 26 X 0,152
12 619300142 Shim 40 mm. Shim 40 mm. 36 X 0,203
12 Not Available As Spare Part - Shim 40 mm. Shim 40 mm. 17 X 0,152
13 230039 Piston 40 mm. 2.0 mm
13 503189002 Piston, Ø1.7 (C46)
13 503189003 Piston, Ø1.2 (C46)
13 Not Available As Spare Part - Piston 40 mm. 2.2 mm
