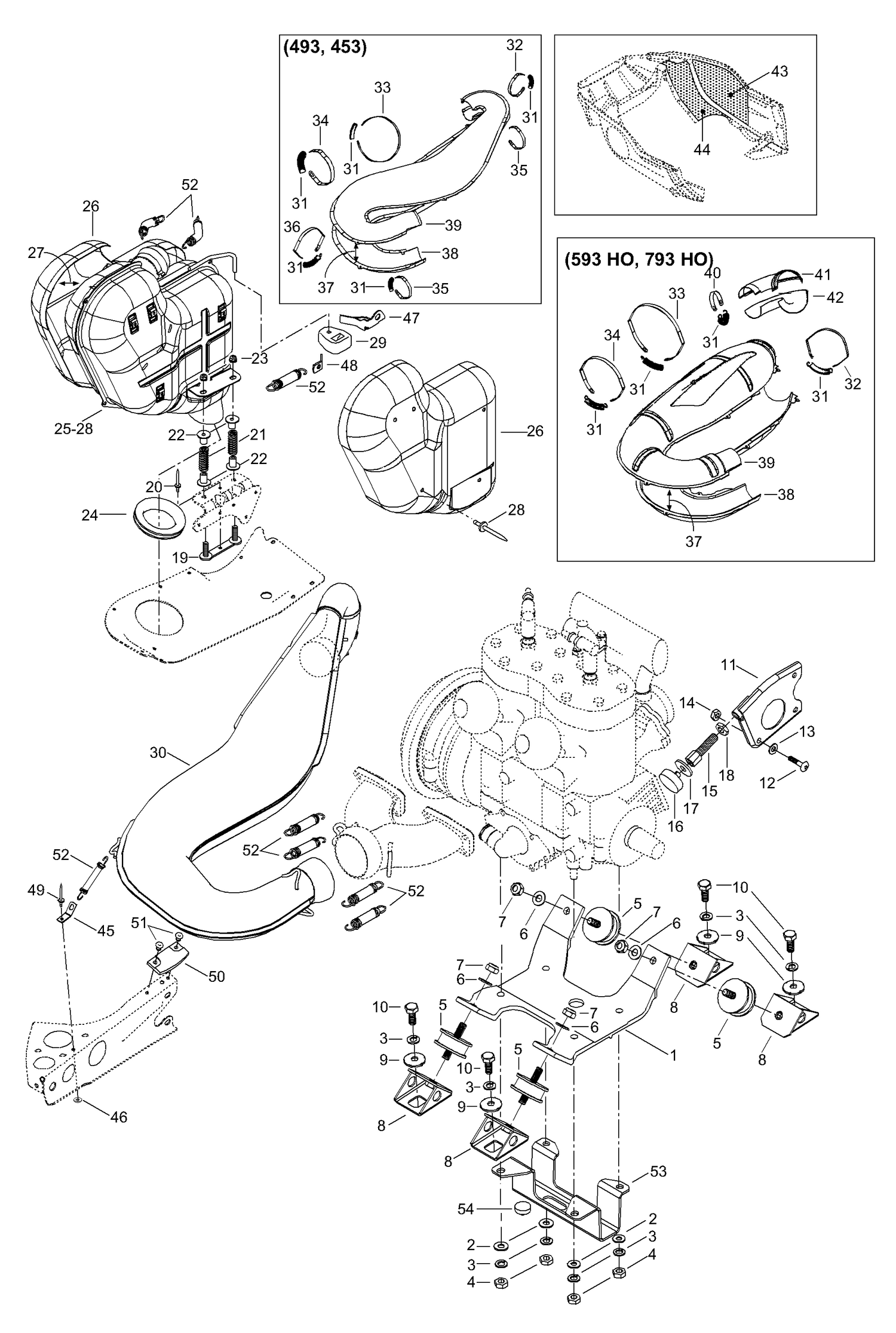

| Ref | Part Number | Description |
|---|
| 1 |
512059173 |
Engine support |
| 2 |
20105 |
Washer, hardened |
| 3 |
20047 |
Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership |
| 4 |
232006414 |
Hex. Nut M10 This part replaces 33004. |
| 5 |
570128700 |
RUBBER MOUNT - Call your local BRP dealership |
| 6 |
20005 |
WASHER M10 - Call your local BRP dealership |
| 7 |
33012 |
Nut elastic M10 |
| 8 |
512050900 |
Engine support |
| 9 |
512056700 |
Lock washer |
| 10 |
40040 |
Screw M10 x 25 |
| 11 |
512058500 |
Support plate |
| 12 |
40344 |
Allen screw M8 x 25 |
| 13 |
234081410 |
Flat Washer 8 mm This part replaces 20104. |
| 14 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 15 |
512058800 |
STOPPER SCREW - Call your local BRP dealership |
| 16 |
512059056 |
Stopper |
| 17 |
20023 |
Washer |
| 18 |
33218 |
Jam nut M12 |
| 19 |
5447628 |
Bracket |
| 20 |
36083 |
Rivet |
| 21 |
414913700 |
SPRING - Call your local BRP dealership |
| 22 |
514053343 |
GUIDE - Call your local BRP dealership |
| 23 |
33029 |
Elastic flanged nut M8 |
| 24 |
514053064 |
Rubber grommet |
| 26 |
514053516 |
LH HEAT SHIELD - Call your local BRP dealership |
| 26 |
514053606 |
R.H. heat shield |
| 27 |
514053294 |
R.H. insulating wool |
| 27 |
514053295 |
L.H. insulating wool |
| 28 |
390910000 |
Rivet |
| 29 |
514052704 |
RUBBER BUMPER - Call your local BRP dealership |
| 31 |
514053643 |
Spring |
| 32 |
514053500 |
RETAINING STRAP - Call your local BRP dealership |
| 33 |
514053540 |
RETAINING STRAP - Call your local BRP dealership |
| 34 |
514053512 |
RETAINING STRAP - Call your local BRP dealership |
| 35 |
Not |
Available As Spare Part - Norma gear clamp - DOES NOT APPLY TO THIS MODEL |
| 36 |
Not |
Available As Spare Part - Norma gear clamp - DOES NOT APPLY TO THIS MODEL |
| 37 |
514053696 |
Isolation |
| 38 |
514053691 |
Lower enveloppe |
| 39 |
514053724 |
Upper enveloppe |
| 40 |
514053492 |
Norma gear clamp |
| 41 |
514053313 |
REAR UPPER ENVELOPE - Call your local BRP dealership |
| 42 |
514053314 |
REAR LOWER ENVELOPE - Call your local BRP dealership |
| 43 |
514052718 |
Isolering |
| 44 |
514053390 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 45 |
5447086 |
Spring bracket |
| 46 |
20008 |
Washer |
| 47 |
514053442 |
SUPPORT - Call your local BRP dealership |
| 48 |
514053436 |
Brached, spring |
| 49 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 50 |
570044100 |
Rubber pad |
| 51 |
36037 |
Rivet |
| 52 |
415107100 |
Spring |
| 53 |
Not |
Available As Spare Part - Support engine - DOES NOT APPLY TO THIS MODEL |
