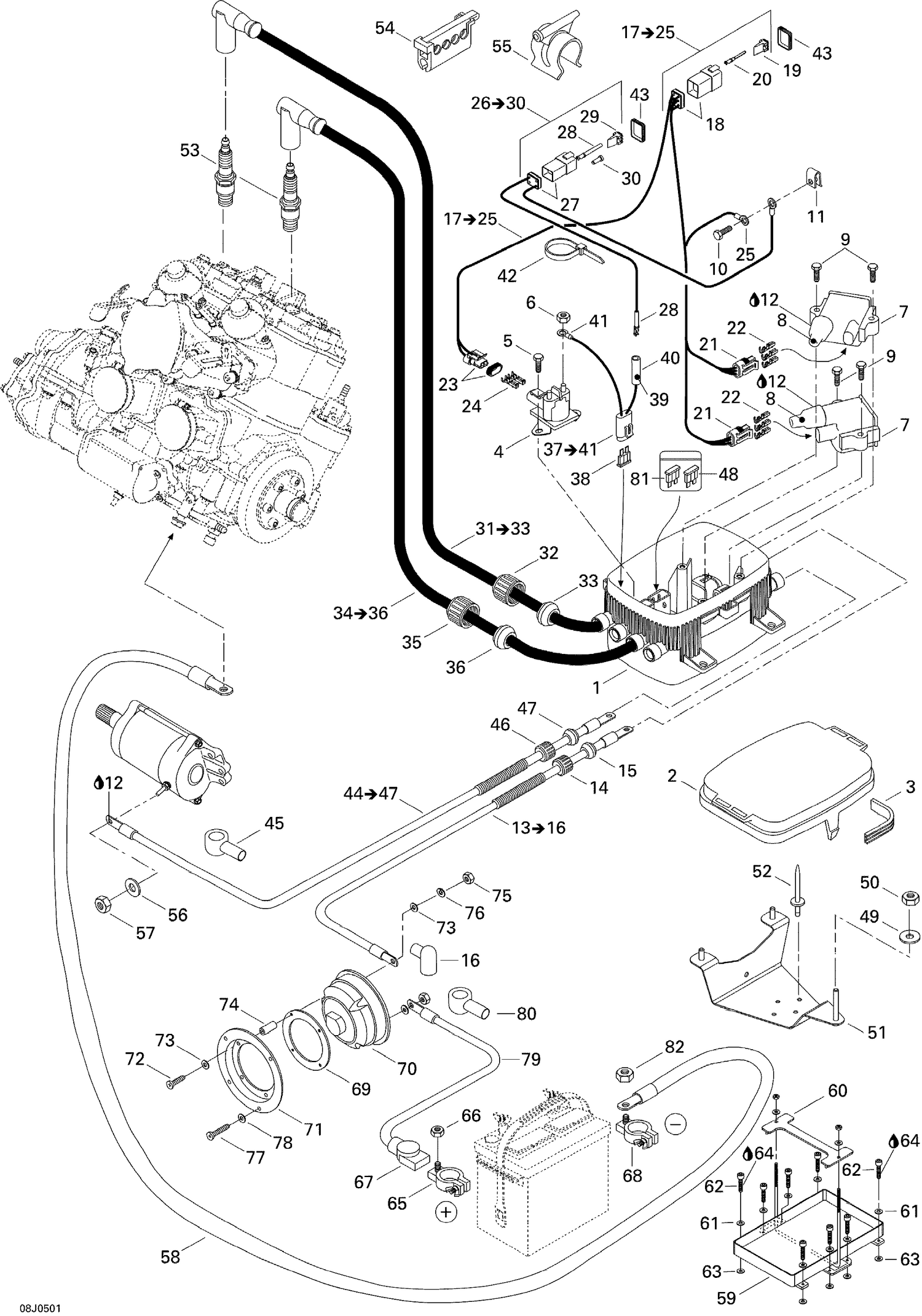

| Ref | Part Number | Description |
|---|
| 1 |
278001760 |
Electric Box Base |
| 2 |
278001433 |
ELECTRIC BOX COVER - Call your local BRP dealership |
| 3 |
278001173 |
GASKET - Call your local BRP dealership |
| 4 |
278003012 |
Starter Relay This part replaces 278001802. |
| 5 |
210261040 |
Hex. Flange Screw M6 X 10 |
| 6 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 7 |
278001451 |
IGNITION COIL - Call your local BRP dealership |
| 8 |
278001470 |
PROTECTOR CAP - Call your local BRP dealership |
| 9 |
209463840 |
SCREW-TAPP.HEX.ISO.1479F - Call your local BRP dealership |
| 10 |
207361660 |
Hex. Screw M6 X 16, Scotch Grip |
| 11 |
250100029 |
U Type Nut M6 |
| 12 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 14 |
278000100 |
Electric Wire Cap |
| 15 |
278000098 |
GROMMET - Call your local BRP dealership |
| 16 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 18 |
710001539 |
Male Terminal Housing, 6 Circuits This part replaces 270000137. |
| 19 |
278000735 |
Female Lock, 6 Circuits |
| 20 |
278000631 |
Male Terminal |
| 21 |
278001467 |
MALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 22 |
278001468 |
FEMALE TERMINAL - Call your local BRP dealership |
| 23 |
278001113 |
Male Connector, 2 Circuits |
| 24 |
278001114 |
Female Terminal |
| 25 |
278001392 |
Open Barrel Terminal |
| 27 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 28 |
515175261 |
MALE TERMINAL - Call your local BRP dealership |
| 29 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 30 |
293000052 |
Sealing Cap |
| 32 |
278000100 |
Electric Wire Cap |
| 33 |
278000682 |
Grommet |
| 35 |
278000100 |
Electric Wire Cap |
| 36 |
278000682 |
Grommet |
| 38 |
410917200 |
Fuse, 30 Amperes |
| 39 |
515175259 |
Deutsch Joint Housing |
| 40 |
515175260 |
FEMALE TERMINAL - Call your local BRP dealership |
| 42 |
293750002 |
Tie Wrap 142 mm |
| 43 |
293200055` |
Gasket |
| 44 |
278001437 |
STARTER RED CABLE - Call your local BRP dealership |
| 45 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 46 |
278000100 |
Electric Wire Cap |
| 47 |
278000098 |
GROMMET - Call your local BRP dealership |
| 48 |
278001443 |
Fuse, 25 Amperes |
| 49 |
234062600 |
Flat Washer M6, Stainless |
| 50 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 51 |
278001426 |
Electric Box Support Ass'y |
| 52 |
293150037 |
Avdel Rivet 3/16" |
| 53 |
278001650 |
Spark Plug NGK ZFR4F-11 |
| 55 |
278000559 |
COLLAR SUPPORT - Call your local BRP dealership |
| 56 |
234061600 |
Stainless Flat Washer M6 |
| 57 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 58 |
204470199 |
RH GROUND CABLE - Call your local BRP dealership |
| 59 |
204471008 |
BATTERY SUPPORT - Call your local BRP dealership This part replaces 204470341. |
| 60 |
204471290 |
TOP BATTERY SUPPORT - Call your local BRP dealership This part replaces 204470909. |
| 61 |
204100069 |
FLAT WASHER - Call your local BRP dealership |
| 62 |
205062560 |
Socket Head Screw M6 X 25 |
| 63 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 64 |
293800060 |
Loctite 243, 10 ml |
| 65 |
204470349 |
POSITIVE BATTERY POLE - Call your local BRP dealership |
| 66 |
211100063 |
HEX. NUT 3/8-16 - Call your local BRP dealership |
| 67 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 68 |
204470348 |
NEGATIVE BATTERY POLE - Call your local BRP dealership |
| 69 |
204470813 |
SWITCH ADAPTOR - Call your local BRP dealership |
| 70 |
204470814 |
BATTERY SWITCH - Call your local BRP dealership |
| 71 |
204470259 |
SWITCH SUPPORT - Call your local BRP dealership |
| 72 |
205455060 |
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership |
| 73 |
234051600 |
Flat Washer M5, Stainless |
| 74 |
204470330 |
NYLON SPACER - Call your local BRP dealership |
| 75 |
232051600 |
Hex. Nut M5 |
| 76 |
234151601 |
Helical Lock Washer M5 |
| 77 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 78 |
234041600 |
Flat Washer 4 mm, Stainless |
| 79 |
204470250 |
POSITIVE SWITCH CABLE - Call your local BRP dealership |
| 80 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 81 |
278000343 |
Fuse, 15 Amperes |
