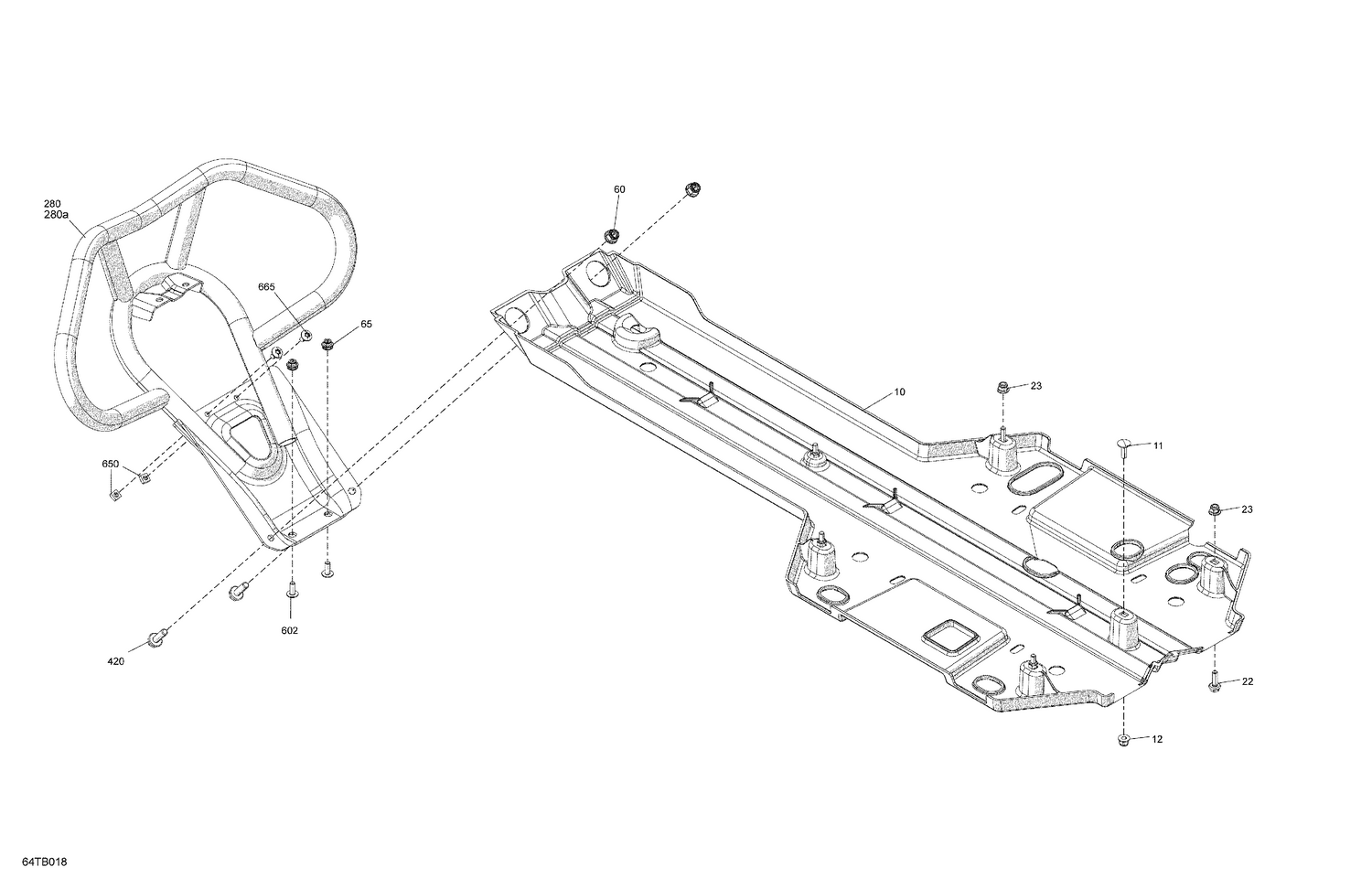

07- Body - Skid Plate and Bumper
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 715002374 | Protective Plate Kit |
| 11 | 207762044 | Carriage Bolt M6 X 20 |
| 12 | 233261434 | Flange Elastic Nut M6 |
| 22 | 207662054 | Hex. Flange Screw M6 X 20 |
| 23 | 233261434 | Flange Elastic Nut M6 |
| 60 | 233281414 | Hex. Flange Elastic Nut M8 |
| 65 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 420 | 207682544 | Hex. Flange Screw M8 X 25 |
| 602 | 250000755 | Torx Screw M6 X 16 |
| 650 | 232862412 | Square Nut M6 |
