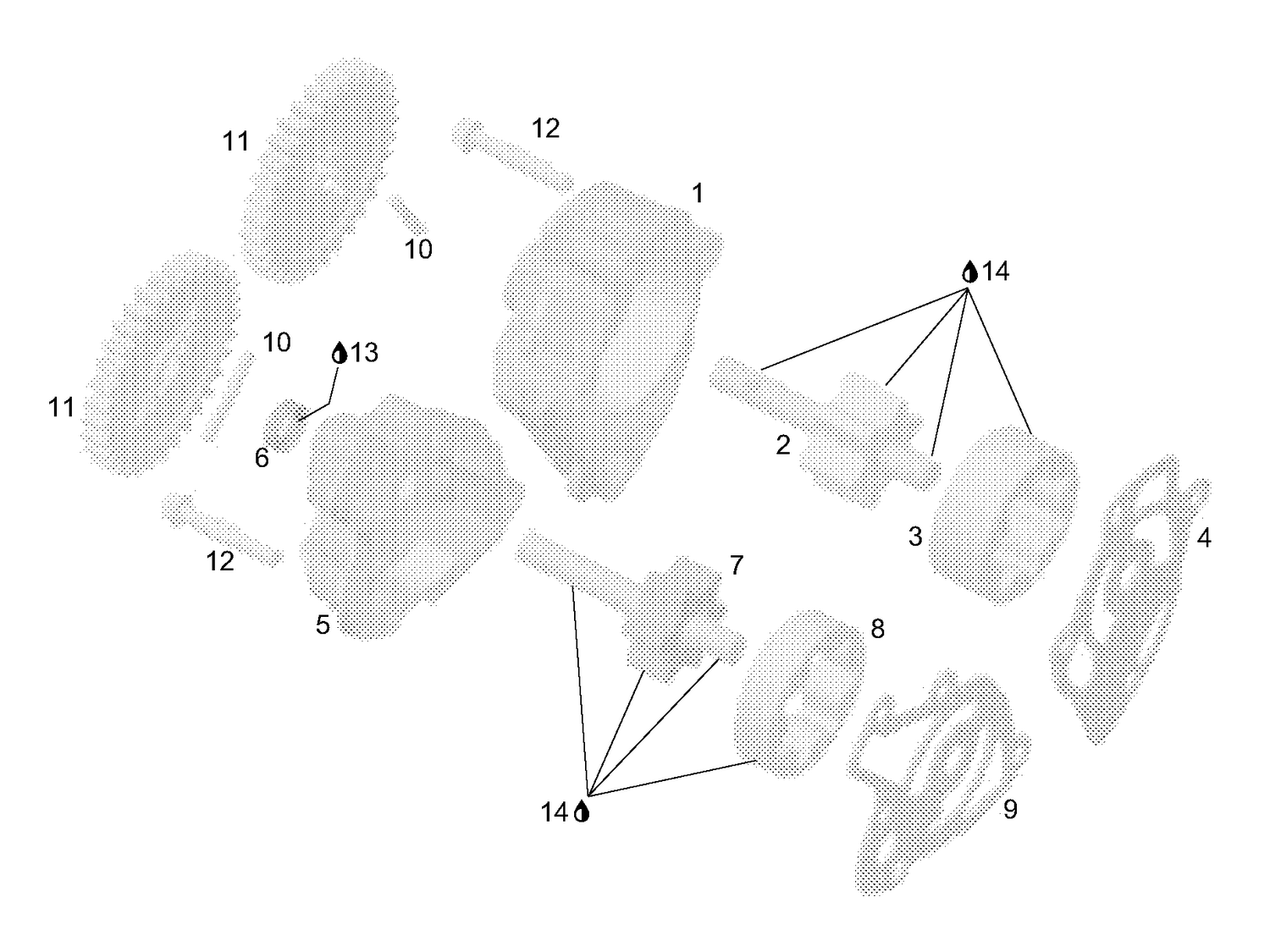

| Ref | Part Number | Description |
|---|
| 1 |
420811690 |
OIL PUMP COVER - Call your local BRP dealership |
| 2 |
420837499 |
OIL PUMP SHAFT - Call your local BRP dealership |
| 3 |
420856455 |
Outer rotor (20 mm) |
| 4 |
420926325 |
INTERMEDIATE PLATE - Call your local BRP dealership |
| 5 |
420811680 |
OIL PUMP COVER - Call your local BRP dealership |
| 6 |
420931142 |
OIL SEAL - Call your local BRP dealership |
| 7 |
420837494 |
OIL PUMP SHAFT - Call your local BRP dealership |
| 8 |
420856445 |
OUTER ROTOR, 14 MM - Call your local BRP dealership |
| 9 |
420926320 |
INTERMEDIATE PLATE - Call your local BRP dealership |
| 10 |
420232431 |
Needle Pin This part replaces 420232430. |
| 11 |
420834470 |
OIL PUMP GEAR, 33 TEETH - Call your local BRP dealership |
| 12 |
420440274 |
Flanged Torx Screw M6 X 35 This part replaces 420440272. |
| 13 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
