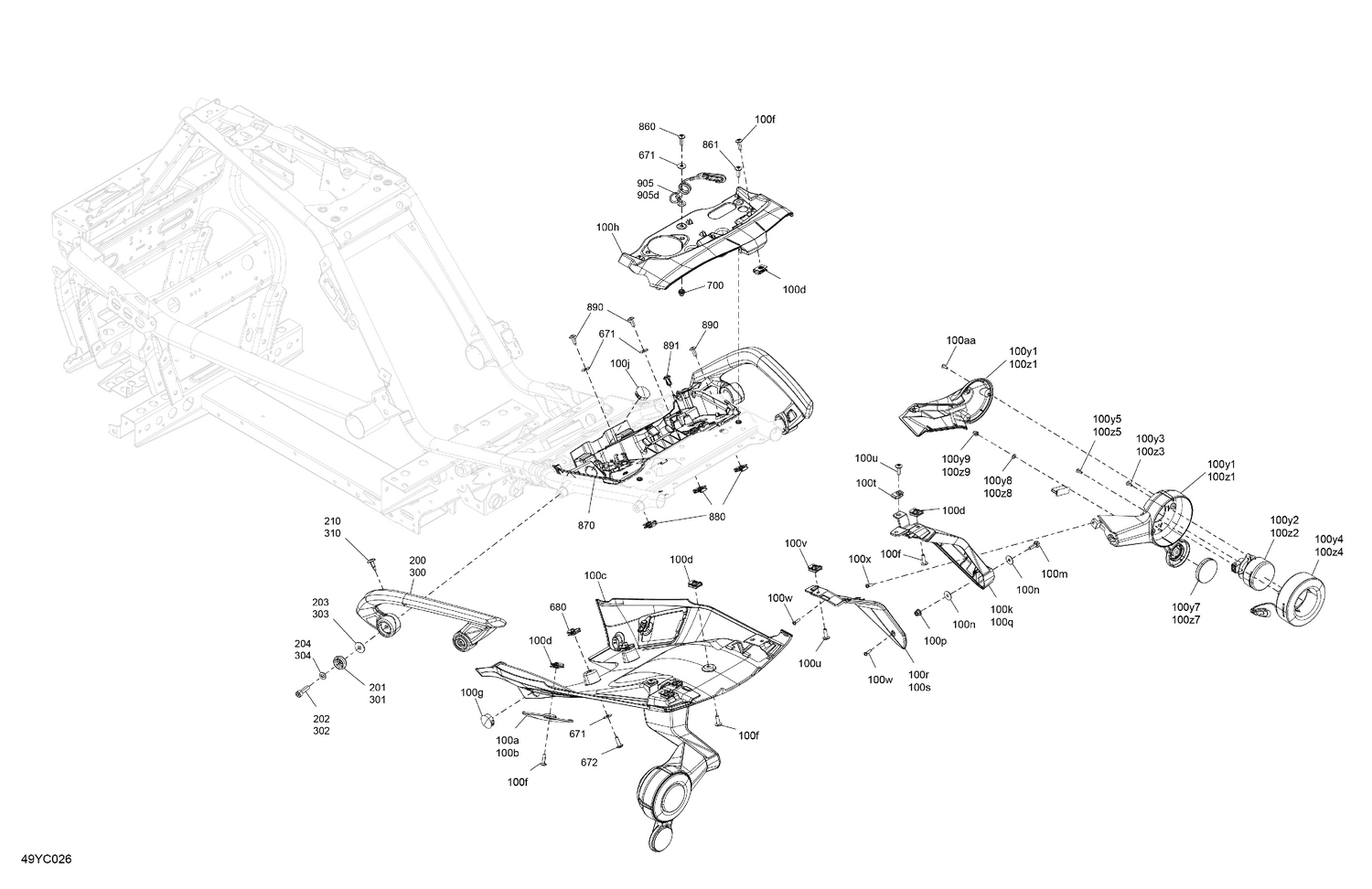

| Ref | Part Number | Description |
|---|
| 100a |
708301513 |
LH Front Cap |
| 100aa |
250001131 |
Torx Truss PT K40 x 12 |
| 100b |
708301514 |
RH Front Cap |
| 100c |
708001415 |
Under Tail Cover |
| 100d |
250100208 |
Panel Nut M6 X 1.0 |
| 100f |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 100g |
414916600 |
Black, Nylon Cap |
| 100h |
708002814 |
Taillight Support |
| 100j |
414916600 |
Black, Nylon Cap |
| 100k |
708002222 |
LH Flasher Support |
| 100m |
207662044 |
Hex. Flange Screw M6 X 20 |
| 100n |
224060201 |
Flat Washer |
| 100p |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100q |
708002223 |
RH Flasher Support |
| 100r |
708001624 |
LH Cap Support |
| 100s |
708001625 |
RH Cap Support |
| 100t |
250100198 |
Panel Nut M6 X 1.0 |
| 100u |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 100v |
250100208 |
Panel Nut M6 X 1.0 |
| 100w |
250000759 |
Torx Truss Pt K40 X 16 |
| 100x |
250000287 |
Flange Torx Screw K40 X 16 |
| 100y1 |
708002232 |
LH Housing Ass'y |
| 100y3 |
250001131 |
Torx Truss PT K40 x 12 |
| 100y4 |
710004056 |
Rear Light |
| 100y5 |
250001131 |
Torx Truss PT K40 x 12 |
| 100y7 |
705016982 |
Red, Reflector |
| 100y8 |
234051670 |
Flat Washer M5 |
| 100y9 |
250100152 |
Cap Nut M5 |
| 100z1 |
708002233 |
RH Housing Ass'y |
| 100z3 |
250001131 |
Torx Truss PT K40 x 12 |
| 100z4 |
710004056 |
Rear Light |
| 100z5 |
250001131 |
Torx Truss PT K40 x 12 |
| 100z7 |
705016982 |
Red, Reflector |
| 100z8 |
234051670 |
Flat Washer M5 |
| 100z9 |
250100152 |
Cap Nut M5 |
| 200 |
708003456 |
LH Rear Holding Handle |
| 201 |
708302461 |
Bushing |
| 202 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 203 |
234082410 |
Flat Washer 8 mm |
| 204 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 210 |
414745900 |
Tuflock Phillips Plastic Screw |
| 300 |
708003457 |
RH Rear Holding Handle |
| 301 |
708302461 |
Bushing |
| 302 |
250000823 |
Socket Head Screw M8 X 30, Scotch Grip |
| 303 |
234082410 |
Flat Washer 8 mm |
| 304 |
234081670 |
Stainless Steel Flat Washer 8 mm |
| 310 |
414745900 |
Tuflock Phillips Plastic Screw |
| 671 |
234062670 |
Stainless Steel Flat Washer |
| 672 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 680 |
250100208 |
Panel Nut M6 X 1.0 |
| 700 |
250100242 |
Threaded Insert M6 X 1.0 |
| 860 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 861 |
250000446 |
Torx Screw M6 X 20, Scotch Grip |
| 870 |
708301698 |
Cargo Rear Support |
| 880 |
250100208 |
Panel Nut M6 X 1.0 |
| 890 |
250000881 |
Torx Truss M8 X 16 |
| 891 |
293150230 |
Tuflok Plastic Rivet |
