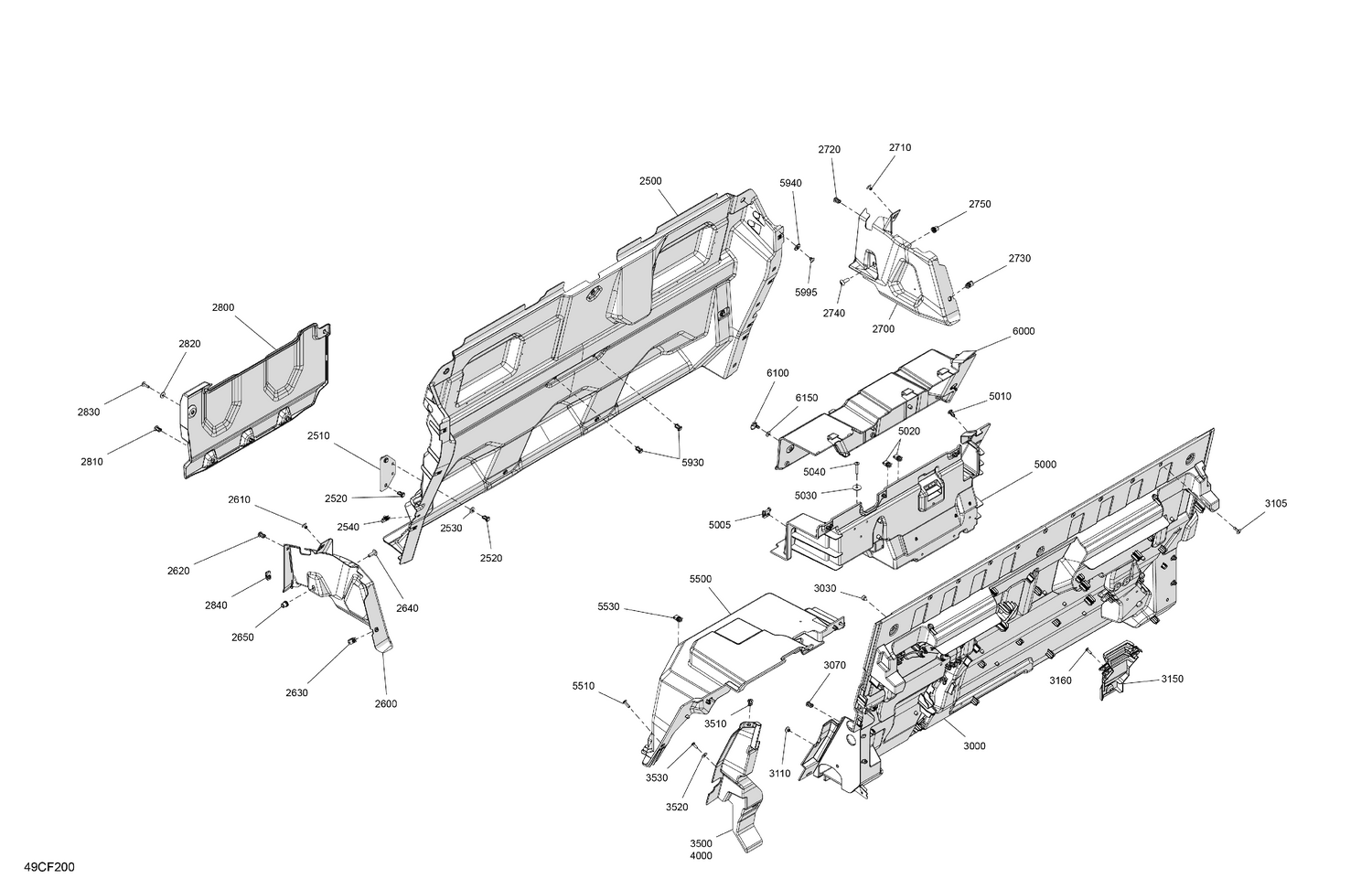

| Ref | Part Number | Description |
|---|
| 2500 |
707900997 |
Middle Deflector |
| 2510 |
707900469 |
Plate |
| 2520 |
293150230 |
Tuflok Plastic Rivet |
| 2530 |
503192494 |
Washer |
| 2540 |
250100198 |
Panel Nut M6 X 1.0 |
| 2600 |
707900994 |
LH Lower Panel |
| 2610 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 2620 |
293150230 |
Tuflok Plastic Rivet |
| 2630 |
250100198 |
Panel Nut M6 X 1.0 |
| 2640 |
250000874 |
Torx Truss M8 X 25 |
| 2650 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 2700 |
707900995 |
RH Lower Panel |
| 2710 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 2720 |
293150230 |
Tuflok Plastic Rivet |
| 2730 |
250100198 |
Panel Nut M6 X 1.0 |
| 2740 |
250000874 |
Torx Truss M8 X 25 |
| 2750 |
293450307 |
Insert Half Hex Body M8 x 1.25 |
| 2800 |
707900996 |
Rear Panel |
| 2810 |
293150230 |
Tuflok Plastic Rivet |
| 2820 |
234062670 |
Stainless Steel Flat Washer |
| 2830 |
250000722 |
Torx Screw M6 X 20 |
| 2840 |
250100198 |
Panel Nut M6 X 1.0 |
| 3000 |
707901168 |
Rear Upper Cab Panel |
| 3030 |
293830005 |
Rubber Bumper |
| 3070 |
293150230 |
Tuflok Plastic Rivet |
| 3105 |
293150306 |
Black, Ornit Rivet 3/16 X ,800 |
| 3110 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 3150 |
707901216 |
Rear Lower Wiring Harness Guard |
| 3160 |
250000720 |
Torx Screw K50 X 16 |
| 3500 |
707901166 |
LH Upper Body Panel Deflector |
| 3510 |
293150230 |
Tuflok Plastic Rivet |
| 3520 |
234062670 |
Stainless Steel Flat Washer |
| 3530 |
250000720 |
Torx Screw K50 X 16 |
| 4000 |
707901167 |
RH Upper Body Panel Deflector |
| 5000 |
707901163 |
Rear Lower Cab Panel |
| 5005 |
705002651 |
Quarter Turn Nut |
| 5010 |
293150230 |
Tuflok Plastic Rivet |
| 5020 |
250100198 |
Panel Nut M6 X 1.0 |
| 5030 |
250200029 |
Washer M6 |
| 5040 |
250000867 |
Torx Truss Hex. Screw M6X35, Nylon Patch |
| 5500 |
707901213 |
Fuel Pump Cover |
| 5510 |
250000722 |
Torx Screw M6 X 20 |
| 5530 |
250100198 |
Panel Nut M6 X 1.0 |
| 5930 |
293150230 |
Tuflok Plastic Rivet |
| 5940 |
292001663 |
Flat Washer 8 mm, Nylon |
| 5995 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 6000 |
707901165 |
Battery Cover |
| 6100 |
705002649 |
Quarter Turn Screw |
