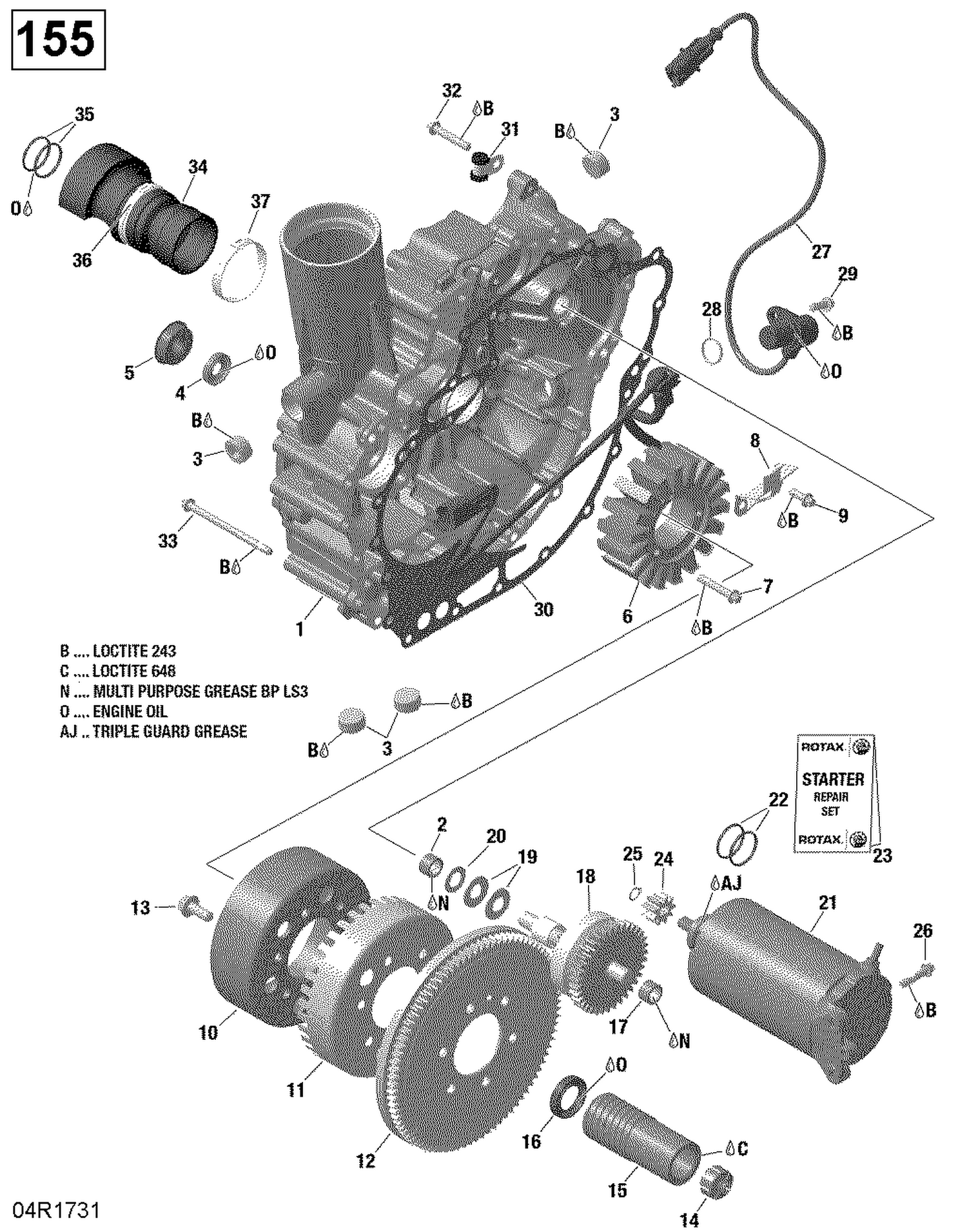

03- PTO Cover And Magneto - 130-155 Model Without Suspension

Ref	Part Number	Description
2	420232482	Needle Bushing
3	420641317	Plug Screw M20 X 1.5
4	420650315	Oil Seal This part replaces 420650310.
5	Not	Available As Spare Part - Rotary Seal
6	420889726	Stator Plate This part replaces 420889721.
7	420641258	Torx Flange Screw M6 X 35
8	420926300	Retaining Plate
9	420641048	Torx Flange Screw M6 X 16
10	420296900	Magneto Flywheel
11	420966851	Trigger Wheel This part replaces 420664082.
12	420853161	Clamp
13	295501162	Hex Screw
14	Not	Available As Spare Part - Stop Sleeve
15	Not	Available As Spare Part - Output Sleeve
16	Not	Available As Spare Part - Oil Seal
17	Not	Available As Spare Part - Needle Bushing
18	420890637	Bendix Starter
19	420238300	Spring Washer
20	420827261	Thrust Washer
22	420631310	O-Ring
23	420881340	Carbon Brush Set
24	420834522	Starter Gear, 9 Teeth
25	420845601	Retaining Ring
26	420641238	Torx Flange Screw M6 X 25
28	420431580	O-Ring
29	420641048	Torx Flange Screw M6 X 16
30	420931130	Timing Drive Cover Gasket (1603 NA)
31	420853414	Clamp
32	420641258	Torx Flange Screw M6 X 35
33	420641228	Torx Flange Screw M6 X 85
35	420631612	O-Ring This part replaces 420631610.
36	420853023	Gear Clamp 46.8-50.0MM
