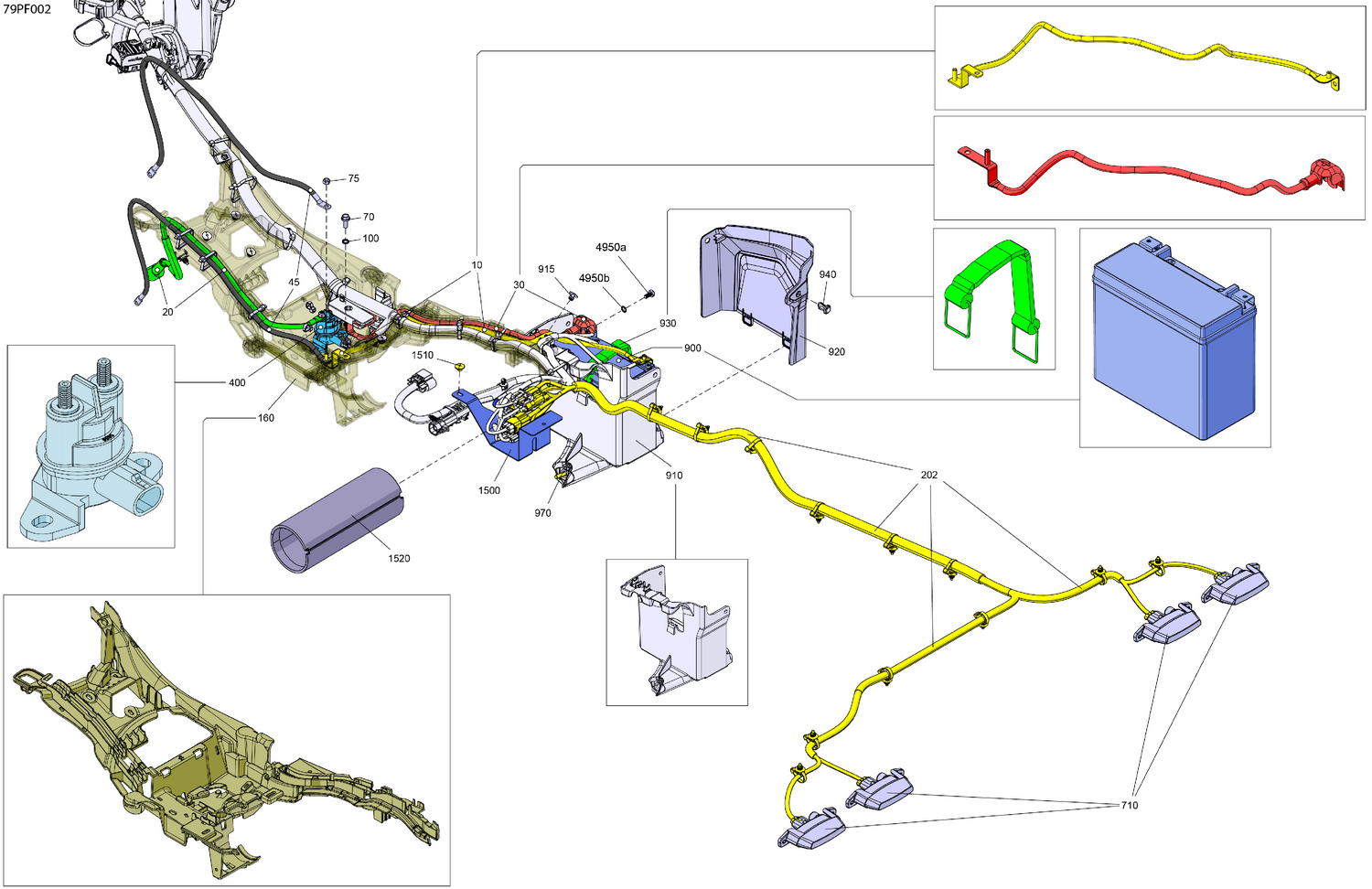

08- Electric - Rear Section
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710009369 | Negative Cable |
| 20 | 710011179 | Positive Cable |
| 30 | 710009370 | Positive Cable |
| 45 | 710007321 | Negative Cable |
| 70 | 207661646 | Hex. Flange Screw M6 X 16 |
| 75 | 232561414 | Elastic Stop Nut M6 |
| 100 | 234461608 | External Serrated Lock Washer 6 mm |
| 160 | 710009950 | Starter Relay Support |
| 202 | 710009699 | Taillight Wiring Harness |
| 400 | 278003012 | Starter Relay |
| 710 | 710010031 | Tail Light |
| 910 | 710008195 | Battery Support |
| 915 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 920 | 710011427 | Battery Cover |
| 930 | 293850087 | Fuel Tank Strap |
| 940 | 293150230 | Tuflok Plastic Rivet |
| 970 | 207562544 | Hex. Flange Screw M6 X 25 |
| 1500 | 710010954 | Wiring Harness Support |
| 1510 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 1520 | 710004193 | Sheath |
| 4950a | 710009084 | Screw |
