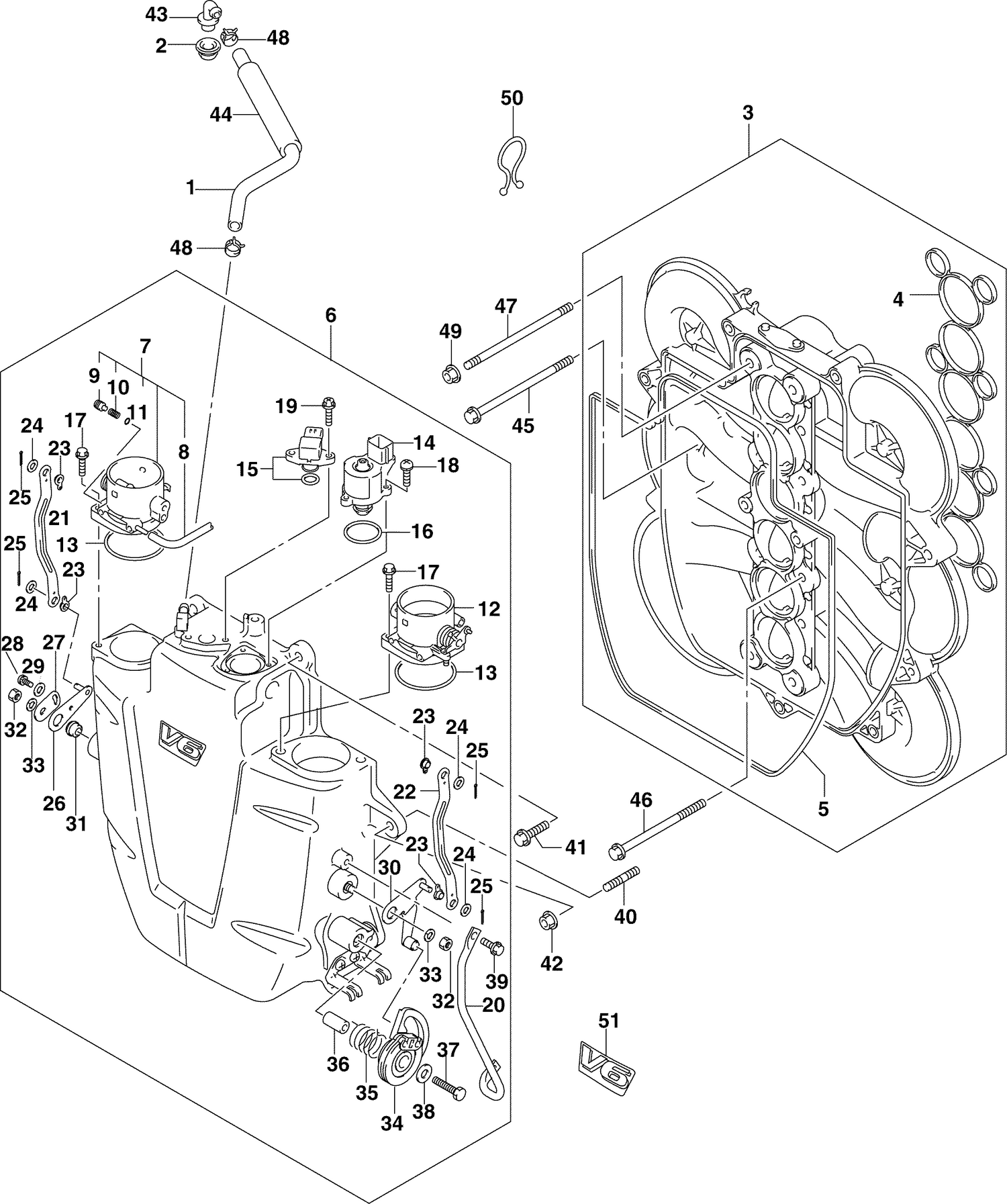

THROTTLE BODY - 200HP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5034862 | HOSE, PCV |
| 2 | 5035370 | SEAL, PCV VALVE |
| 3 | 5034960 | COLLECTOR |
| 6 | 5034962 | COVER, COLLECTOR |
| 20 | 5034963 | Guard |
| 40 | 5033297 | BOLT, COLLECTOR COVER STUD |
| 41 | 5030996 | BOULON |
| 43 | 5035056 | VALVE, PCV |
| 44 | 5032912 | PROTECTOR, BREATHER HOSE |
| 45 | 5035215 | BOLT, COLLECTOR NO.2 |
| 46 | 5035214 | BOLT, COLLECTOR NO.1 |
| 47 | 5034780 | BOLT, COLLECTOR STUD |
| 48 | 5035341 | CLIP |
| 49 | 5035661 | NUT, COLLECTOR |
| 50 | 5033629 | CLAMP |
