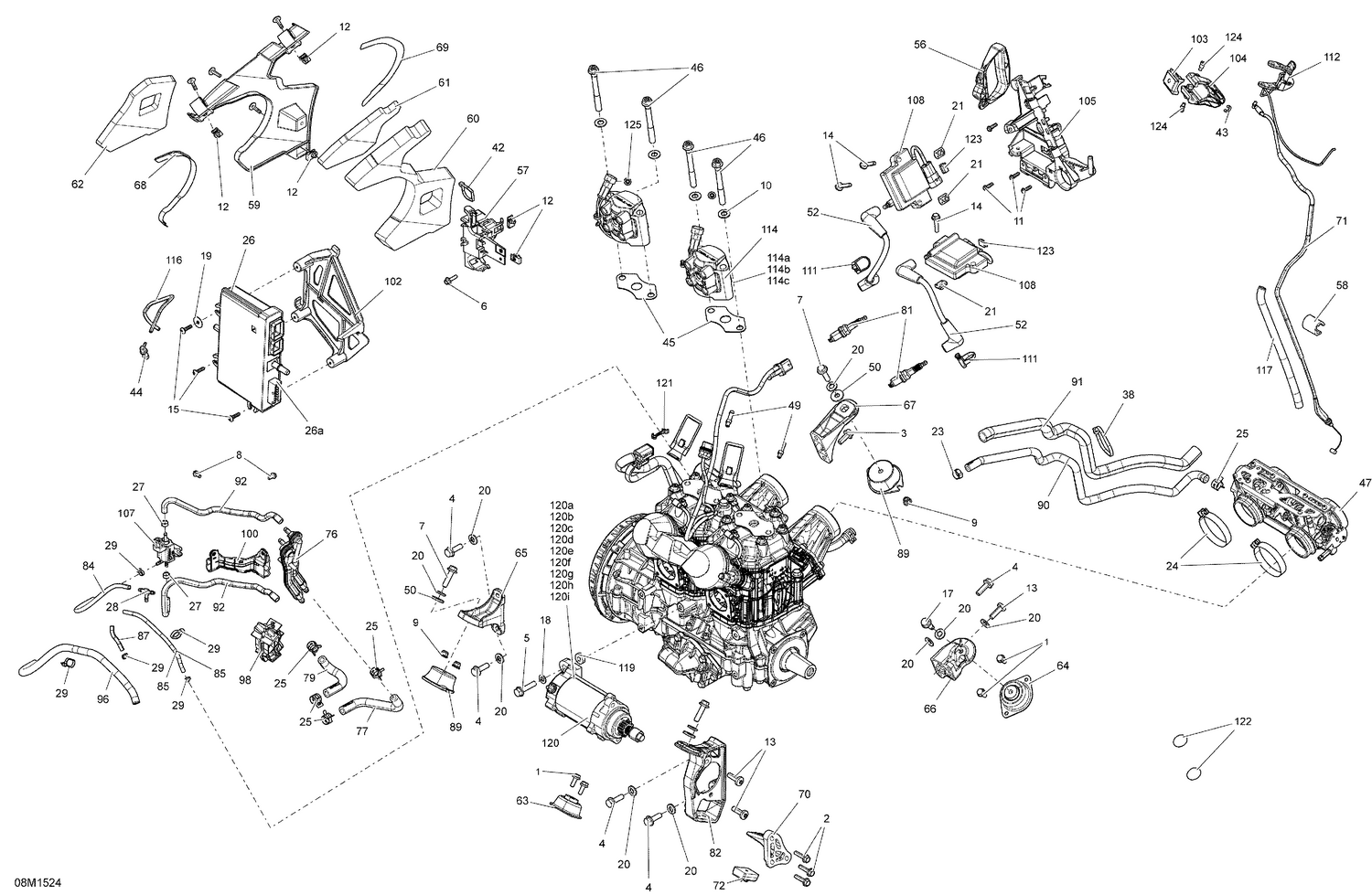

| Ref | Part Number | Description |
|---|
| 1 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 2 |
207562544 |
Hex. Flange Screw M6 X 25 |
| 3 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 4 |
207582586 |
Hex. Flange Screw M8 X 25, Scotch Grip |
| 5 |
207583544 |
Hex Flange Screw M8 X 35, Scotch Grip |
| 6 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 7 |
207683044 |
Hex. Flange Screw M8 X 30 |
| 8 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 9 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 10 |
234001410 |
Flat Washer 10 mm |
| 11 |
241151640 |
Hex. Flange Screw K50 X 2.24 X 16 |
| 12 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 13 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248. |
| 14 |
250000253 |
Hex. Flange Screw M6 X 1.0 X 30 |
| 15 |
250000297 |
Truss Head Torx Screw K50 X 20 |
| 16 |
250000528 |
Torx Screw M5 X 20 |
| 17 |
250000796 |
Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570. |
| 18 |
250200008 |
Flat Washer With Teflon 8 mm |
| 19 |
250200040 |
Flat Washer |
| 20 |
250200146 |
Conical Spring Washer M8 |
| 21 |
293100003 |
Nut Welded, M6 |
| 23 |
293650046 |
Oetiker Clamp |
| 24 |
293650158 |
Gemi Clamp |
| 25 |
293650214 |
Norma Spring Clamp |
| 26a |
512060780 |
Calibrated Module |
| 27 |
293650234 |
Crimp Clamp |
| 28 |
293710068 |
T-Fitting |
| 29 |
293750001 |
Tie Wrap 94 mm |
| 38 |
293750008 |
Tie Wrap 368 mm |
| 42 |
414115200 |
Tie-Rap 180 mm |
| 43 |
414274500 |
Circlip |
| 44 |
414814100 |
Male Connector |
| 45 |
420430930 |
Gasket |
| 46 |
420441187 |
Torx Flange Screw M10 X 90 -SW 13/T50 |
| 47 |
420889201 |
Throttle Body This part replaces 420889197. |
| 49 |
420924724 |
Hose Nipple |
| 50 |
503183200 |
Yellow, Washer |
| 52 |
512061126 |
Ignition Cable, 177mm long This part replaces 512060094. |
| 56 |
512060136 |
Starter Grip |
| 57 |
512060298 |
Solenoid Support |
| 58 |
512060313 |
Protector |
| 59 |
512060339 |
NOISE SHIELD - Call your local BRP dealership |
| 60 |
512060343 |
Interior Noise Foam |
| 61 |
512060344 |
Upper Exterior Noise Foam |
| 62 |
512060362 |
LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership |
| 63 |
512061507 |
Vibration Damper This part replaces 512060387. |
| 64 |
512060448 |
Rubber Mount |
| 65 |
512060469 |
Front Support, MAG |
| 66 |
512060478 |
Rear Support, PTO |
| 67 |
512060559 |
Rear Support, MAG |
| 68 |
512060574 |
Heat Shield |
| 69 |
512060575 |
Heat Shield |
| 70 |
512060576 |
Stopper Support |
| 71 |
512060611 |
Throttle Cable |
| 72 |
512060627 |
Stopper |
| 76 |
512060692 |
Manifold |
| 77 |
512060694 |
RH Formed Hose |
| 79 |
512060695 |
LH Formed Hose |
| 81 |
415130430 |
Spark Plug NGK PZFR6F This part replaces 415129375. |
| 82 |
512060712 |
FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699. |
| 84 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 85 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 87 |
219704352 |
Was 420660574 Pressure Hose 280 mm |
| 89 |
512060729 |
Rubber Mount |
| 90 |
512060740 |
Formed Hose, Output |
| 91 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 92 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 96 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 98 |
512060769 |
Manifold Support |
| 100 |
512060827 |
Hose Support |
| 102 |
512060858 |
Calibrated Module Support |
| 103 |
512060859 |
Upper Housing |
| 104 |
512060860 |
Lower Housing |
| 105 |
512060888 |
Ignition Coils Support |
| 107 |
270600005 |
Solenoid Valve This part replaces 512060950. |
| 108 |
512060953 |
Ignition Coil |
| 111 |
512060993 |
Clamp |
| 112 |
512061250 |
Handle Ass'y This part replaces 512061051. |
| 114a |
415129497 |
Crush Ring |
| 114b |
415129498 |
O-Ring |
| 114c |
415129499 |
O-Ring |
| 116 |
219704709 |
NEEDS DESCRIPTION This part replaces 219704409. |
| 117 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 119 |
515176500 |
Washer |
| 120a |
415129441 |
Clutch Kit |
| 120b |
415129333 |
Brush Kit |
| 120c |
410204500 |
FLAT WASHER - Call your local BRP dealership |
| 120d |
415129333 |
Brush Kit |
| 120e |
410212100 |
Brush Kit |
| 120f |
415129341 |
Starter Bolt |
| 120g |
415129342 |
O-Ring Kit |
| 120h |
415129342 |
O-Ring Kit |
| 120i |
278000695 |
O-Ring |
| 121 |
515177770 |
Locker |
| 122 |
518325560 |
Adhesive Patch |
| 123 |
710000992 |
Clip |
| 124 |
732601143 |
Flange Screw |
