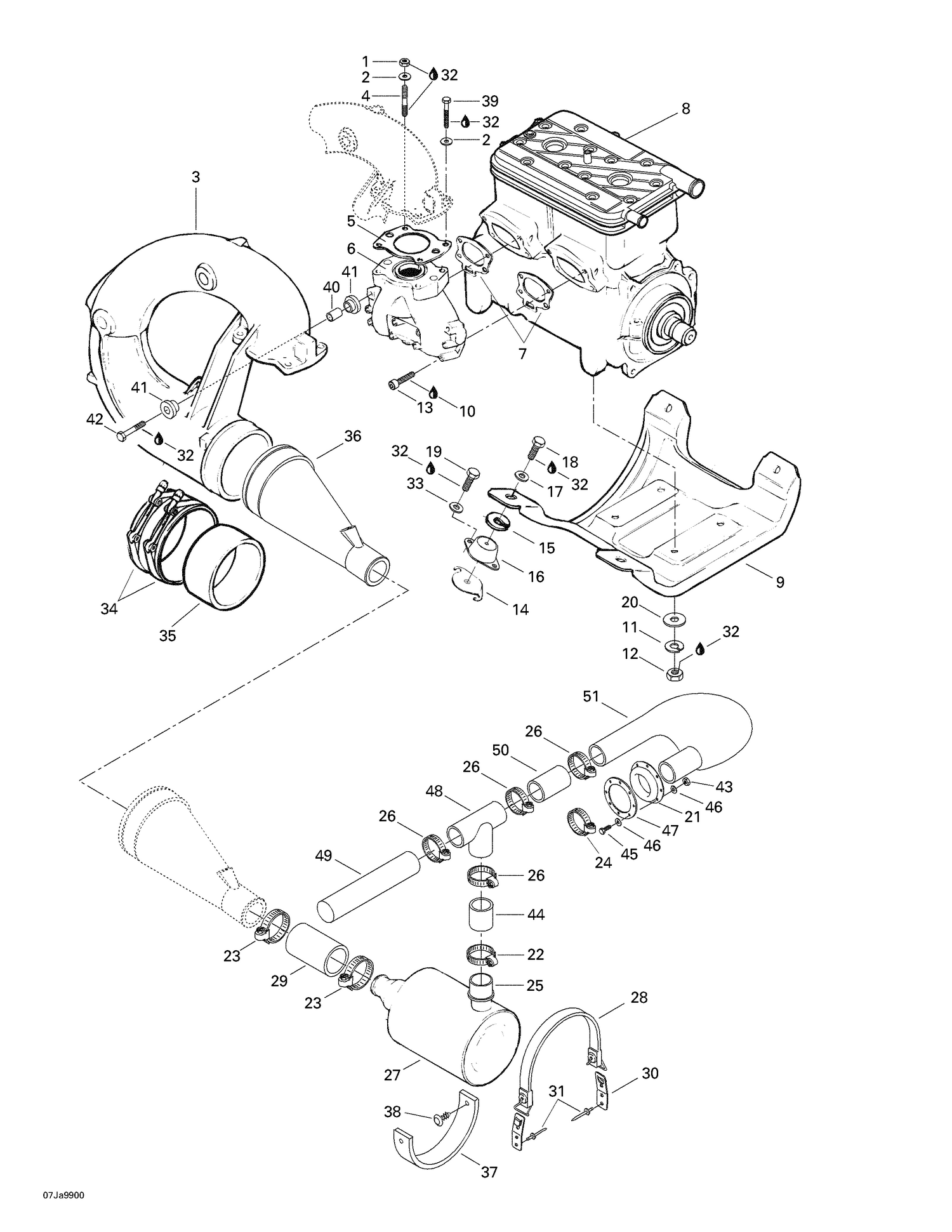

01- Engine Support And Muffler
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 232081600 | Hex. Nut M8 |
| 2 | 293050001 | Flat Washer M8.5 x 18 |
| 3 | 274000487 | Tuned Pipe Ass'y |
| 4 | 420941014 | Stud M8 x 26 This part replaces 290941013. |
| 5 | 420950253 | Exhaust Gasket This part replaces 290950251. |
| 6 | 290979142 | Exhaust Manifold (Silver) |
| 7 | 420850638 | Gasket This part replaces 290850637. |
| 8 | 270000440 | Rotax Engine 717 (Silver) |
| 9 | 204250074 | Engine Support |
| 10 | 413707000 | Dow Corning 111, 150 g |
| 11 | 234101601 | Helicoidal Lock Washer M10 |
| 12 | 232001600 | HEX. NUT M10 - Call your local BRP dealership |
| 13 | 290841998 | Hex. Flange Screw M8 x 68.5 |
| 14 | 270000006 | Shim 0.4 mm |
| 15 | 270000024 | SHIM 0.4 MM - Call your local BRP dealership |
| 16 | 270000425 | Rubber Mount |
| 17 | 234082600 | Flat Washer 8 mm, Stainless |
| 18 | 207182060 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 19 | 207183060 | Hex. Screw M8 X 30 |
| 20 | 234001600 | Flat Washer 10 mm, Stainless |
| 21 | 293250096 | Gasket |
| 22 | 293650079 | Norma Clamp |
| 23 | 293650077 | Norma Clamp |
| 24 | 293650076 | NORMA CLAMP - Call your local BRP dealership |
| 25 | 274000383 | Hose Adaptor |
| 26 | 293650064 | Tridon Clamp |
| 27 | 274000491 | Muffler |
| 28 | 293850097 | Retainer Strap This part replaces 293850021. |
| 29 | 274000170 | Exhaust Hose |
| 30 | 293850024 | STRAP CLIP - Call your local BRP dealership |
| 31 | 293150008 | Pop Rivet 3/16" This part replaces 293150011. |
| 32 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 33 | 234081600 | Stainless, Flat Washer 8 mm |
| 34 | 293650068 | NORMA CLAMP - Call your local BRP dealership |
| 35 | 274000074 | Sealing Ring |
| 36 | 274000488 | Exhaust Cone Ass’Y |
| 37 | 293830055 | Rubber Pad |
| 38 | 293730006 | Black, Dart |
| 39 | 207183060 | Hex. Screw M8 X 30 |
| 40 | 274000114 | Bushing |
| 41 | 293830031 | Rubber Bushing |
| 42 | 207084060 | Hex. Screw M8 X 40 |
| 43 | 232561600 | Hex. Elastic Stop Nut M6 |
| 44 | 204340074 | Exhaust Hose |
| 45 | 207162560 | Hex. Screw M6 X 25 |
| 46 | 234061600 | Stainless Flat Washer M6 |
| 47 | 274000277 | Ring |
| 48 | 204340064 | T Fitting |
| 49 | 204340065 | Resonateur |
| 50 | 204340075 | Exhaust Hose |
| 51 | 204340060 | LH Expansion Chamber |
| 52 | 290886317 | Engine Gasket Set (Not Shown) |
