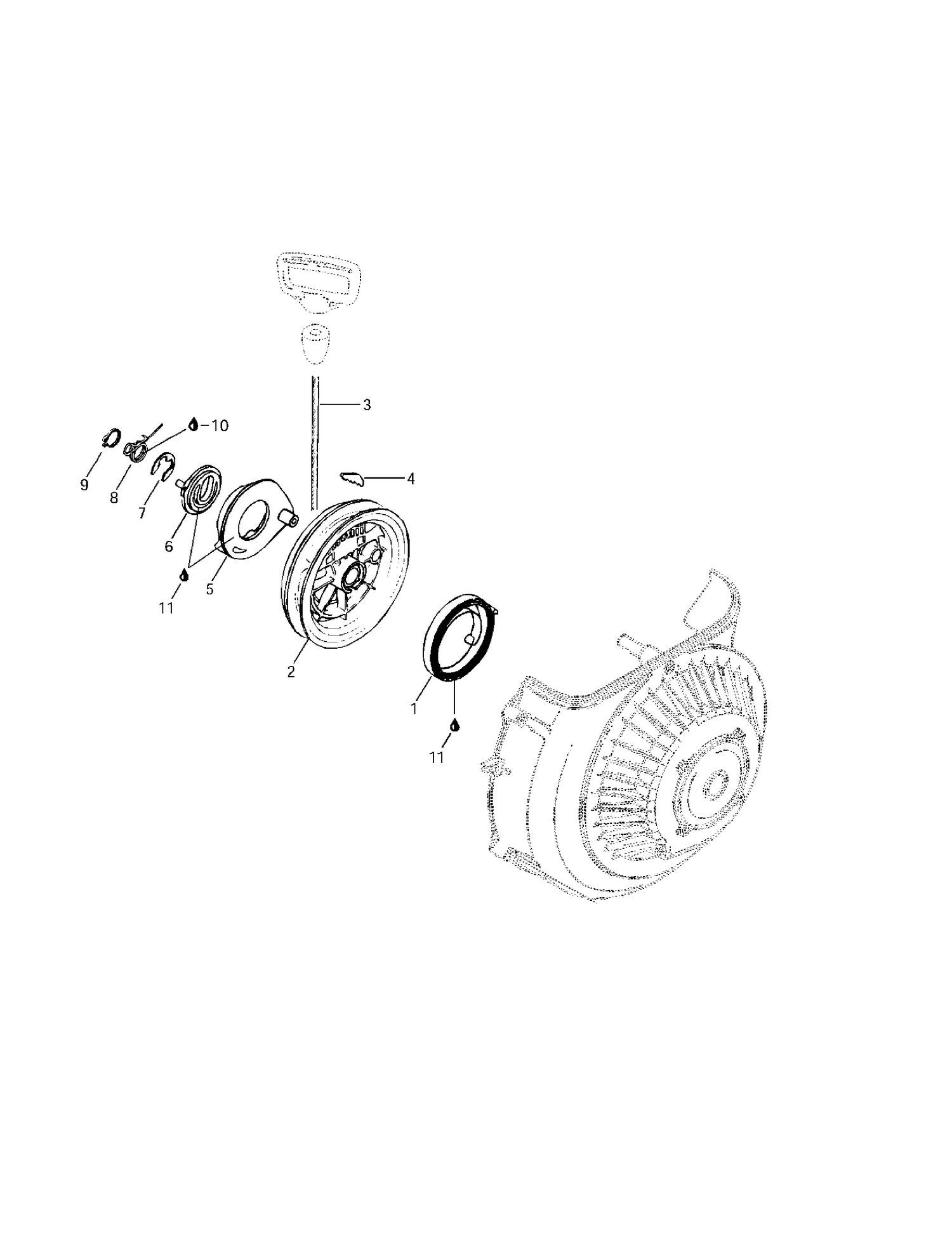

04- Rewind Starter
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420939115 | Rewind Spring |
| 2 | 420852283 | Rope Sheave |
| 3 | 219704403 | Was 412500100 Rope-Starter |
| 4 | 420852070 | Key Clamp |
| 5 | 420852296 | Pawl This part replaces 420852290. |
| 6 | 420852301 | PAWL LOCK - Call your local BRP dealership |
| 7 | 420845300 | CIRCLIP - Call your local BRP dealership |
| 8 | 420938986 | Pawl Spring This part replaces 420938985. |
| 9 | 420945770 | LOCK RING - Call your local BRP dealership |
| 10 | 413707000 | Dow Corning 111, 150 g |
