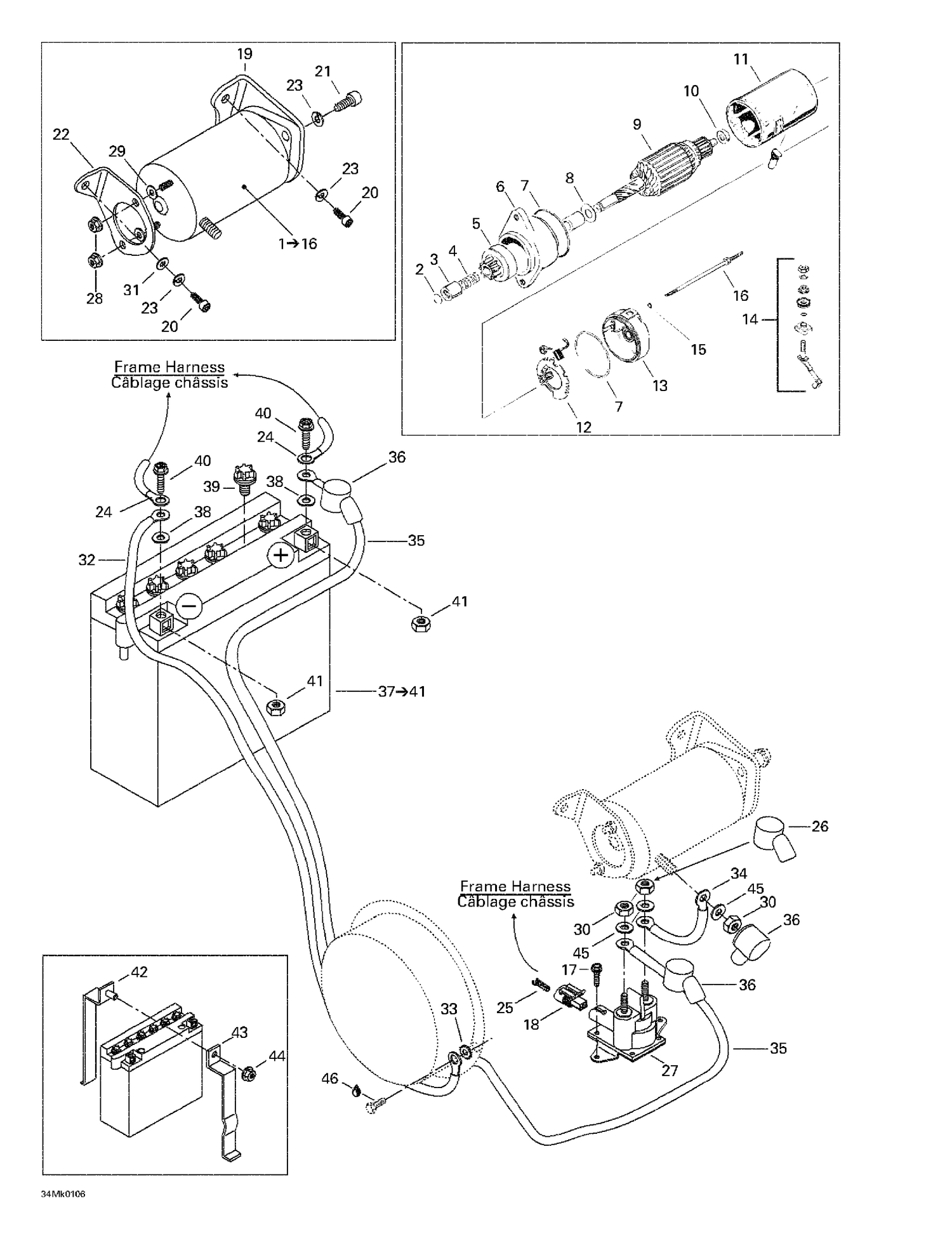

| Ref | Part Number | Description |
|---|
| 2 |
410207700 |
SNAP RING - Call your local BRP dealership |
| 3 |
410207800 |
STOP BUSHING - Call your local BRP dealership |
| 4 |
410213101 |
SPRING - Call your local BRP dealership |
| 5 |
410208000 |
Starter Clutch |
| 6 |
Not |
Available As Spare Part - Starter Housing |
| 7 |
278000695 |
O-Ring |
| 8 |
278000054 |
Flat Washer |
| 9 |
Not |
Available As Spare Part - Armature Ass'y |
| 10 |
278000056 |
THRUST WASHER - Call your local BRP dealership |
| 11 |
Not |
Available As Spare Part - Starter Housing |
| 12 |
410213105 |
Brush Holder |
| 13 |
278000251 |
Commutator End Frame |
| 14 |
410212100 |
Brush Kit |
| 15 |
278000060 |
O-RING - Call your local BRP dealership |
| 16 |
278000170 |
RETAINER STUD - Call your local BRP dealership |
| 17 |
210251180 |
HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership |
| 18 |
278001113 |
Male Connector, 2 Circuits |
| 19 |
512059209 |
Starter Bracket (PTO) |
| 20 |
205082044 |
Socket Head Screw M8 X 20 |
| 21 |
205082544 |
Socket Head Screw M8 X 25 |
| 22 |
512059208 |
Starter Bracket (MAG) |
| 23 |
234181401 |
Lock Washer 8 mm |
| 24 |
278001392 |
Open Barrel Terminal This part replaces 409012600. |
| 25 |
278001114 |
Female Terminal |
| 26 |
278000020 |
PROTECTION CAP - Call your local BRP dealership |
| 27 |
278003012 |
Starter Relay This part replaces 278001376. |
| 28 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 29 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 30 |
232561414 |
Elastic Stop Nut M6 |
| 31 |
234081410 |
Flat Washer 8 mm |
| 32 |
515175425 |
Ground Wire |
| 33 |
394001900 |
EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 34 |
515175101 |
Battery Wire |
| 35 |
515166400 |
Battery Wire |
| 36 |
570064200 |
PROTECTION CAP - Call your local BRP dealership |
| 38 |
391302100 |
FLAT WASHER - Call your local BRP dealership |
| 39 |
410300800 |
Battery Cap |
| 40 |
207161644 |
Hex. Screw M6 X 16 |
| 41 |
232061414 |
Hex. Nut M6 |
| 42 |
517290400 |
Steel Strip (Weld) |
| 43 |
517290402 |
Steel Strip |
| 44 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 45 |
234061410 |
Flat Washer 6 mm |
