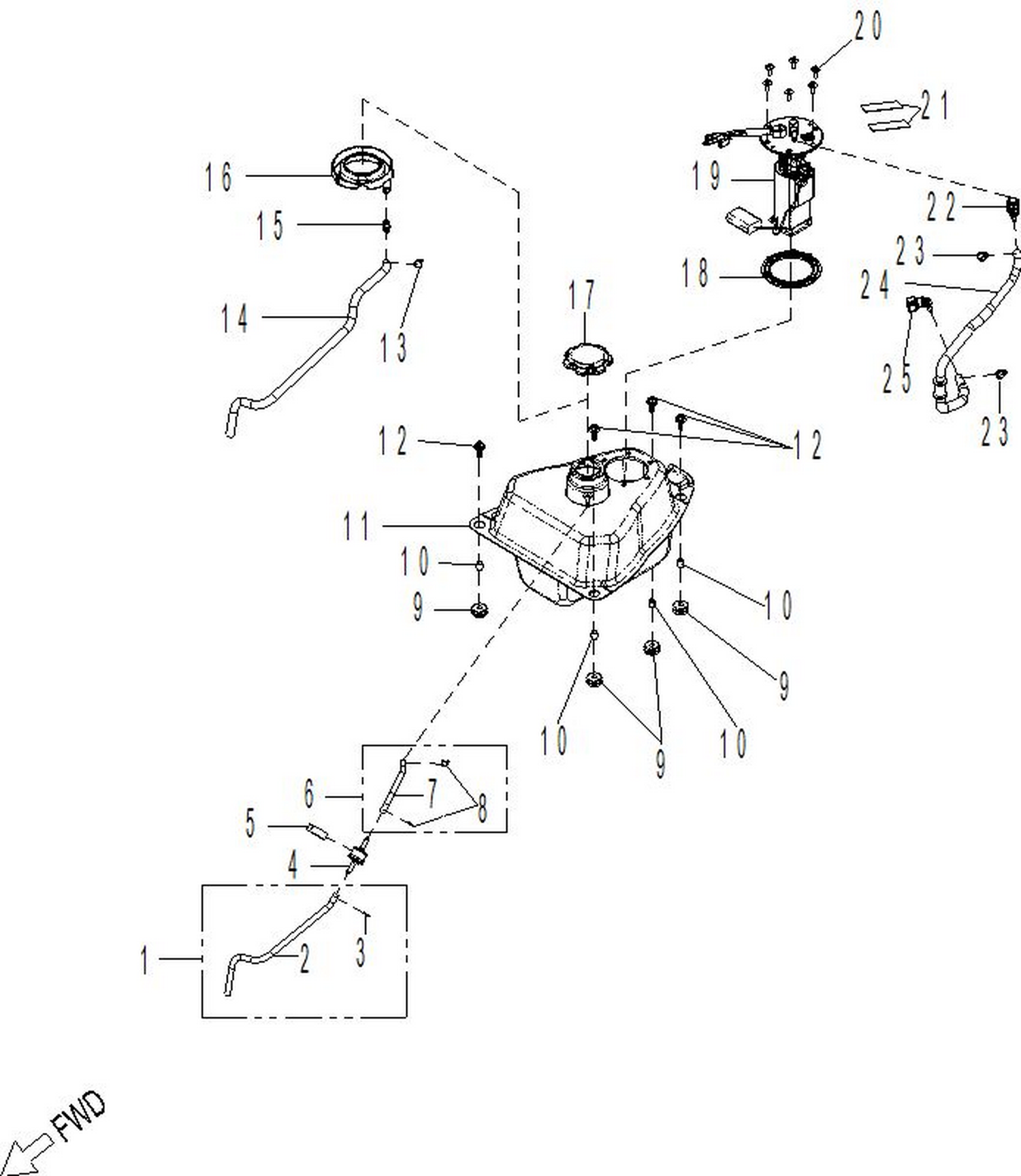

02- Engine - Fuel Tank
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | A11211215000 | Vent Tube |
| 3 | A94510080003 | Tube Clip |
| 4 | A35163201000 | Two-Way Valve |
| 5 | A35169S36000 | Two-Way Valve Fixing RING |
| 7 | A11211214000 | Vent Tube |
| 8 | A94510080003 | Tube Clip |
| 9 | A17502204000 | Rubber Pad |
| 10 | A5131106N00A | Bushing |
| 11 | A17500T91000 | Fuel Tank Ass'y |
| 12 | A960070602280K3 | Hexagonal Head Screw Bolt W / Washer M6 |
| 13 | A94508120123 | CirClip |
| 14 | A11211217000 | Vent Tube |
| 15 | A1723962U000 | Nozzle |
| 16 | A17517T91000 | Gas Overflow |
| 17 | A17620T91000 | Fuel Cap Ass'y |
| 18 | A17502T91000 | Rubber Gasket |
| 19 | A17520T91001 | Fuel Pump |
| 20 | A89220234000 | Shoulder Bolt |
| 21 | A89720156000 | Wire Tape |
| 22 | A1752536T000 | Quick Joint B |
| 23 | A9452112006 | Strap |
| 24 | A17523T91000 | High Pressure Fuel Hose |
