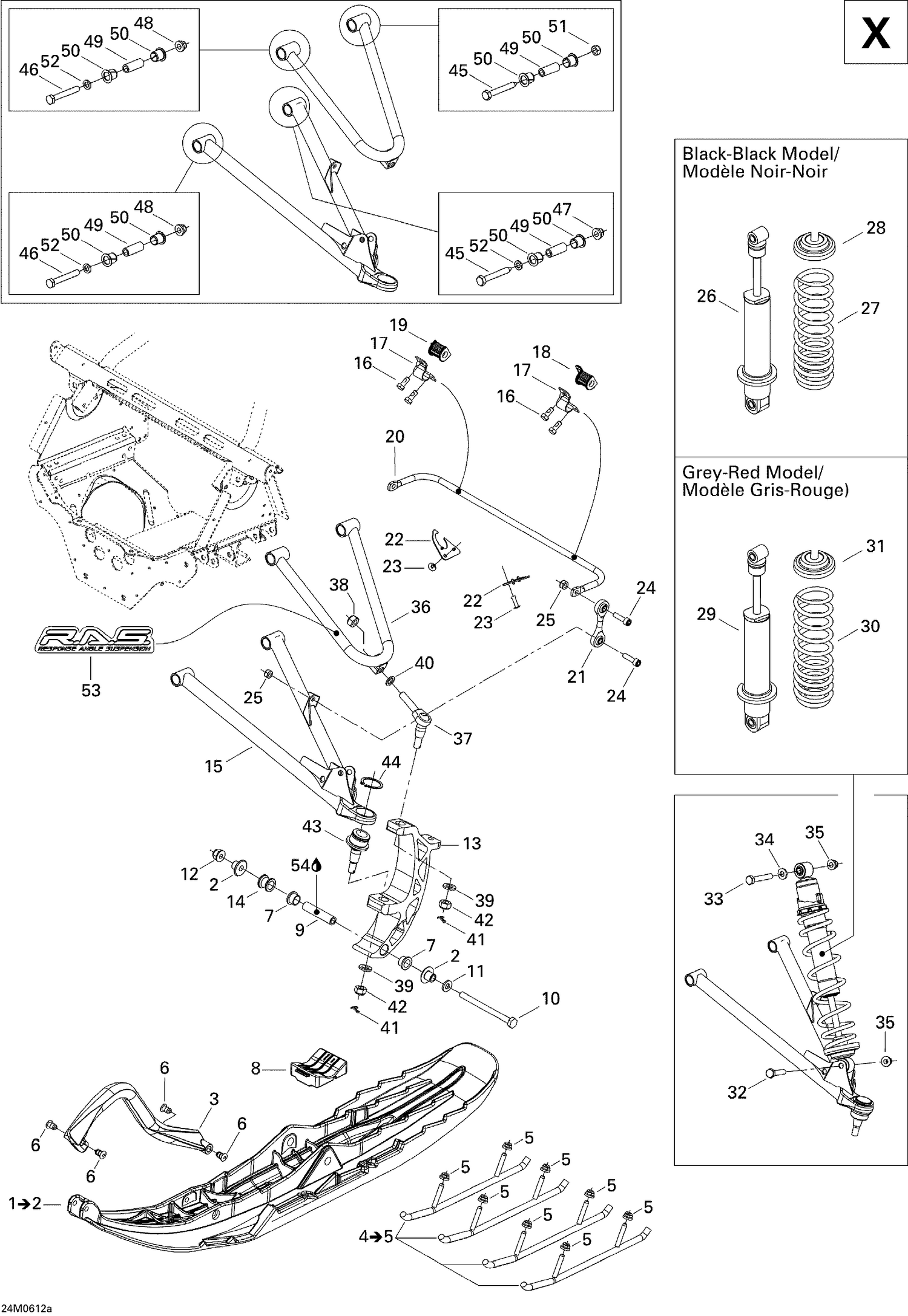

07- Front Suspension And Ski X
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 505071781 | Ski Bushing |
| 5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 6 | 505071812 | Retainer 17mm long |
| 7 | 505072690 | Leg Bushing This part replaces 505070954. |
| 8 | 505071779 | Ski Stopper |
| 9 | 505071271 | BUSHING - Call your local BRP dealership |
| 10 | 250000703 | Hex. Screw M10 X 130 This part replaces 230003044. |
| 11 | 732900049 | Washer |
| 12 | 250100105 | Flange Nut M10 This part replaces 732610084. |
| 13 | 505071248 | SKI LEG - Call your local BRP dealership |
| 14 | 505071215 | SPACER - Call your local BRP dealership |
| 15 | 505071742 | RH LOWER ARM - Call your local BRP dealership |
| 15 | 505071745 | LH Lower Arm |
| 16 | 250000118 | Hex. Screw With Nylon |
| 17 | 506095800 | CLAMP - Call your local BRP dealership |
| 18 | 505071475 | LH BUSHING - Call your local BRP dealership |
| 19 | 505071476 | RH BUSHING - Call your local BRP dealership |
| 20 | 505071477 | STABILISATOR - Call your local BRP dealership |
| 21 | 505071479 | BALL JOINT - Call your local BRP dealership |
| 22 | 505071253 | PLUG - Call your local BRP dealership |
| 23 | 293150103 | Pop Rivet 3/16" |
| 24 | 205083044 | Socket Head Screw M8 X 30 |
| 25 | 232581414 | Hex. Elastic Stop Nut M8 |
| 32 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 33 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 34 | 503189564 | Washer |
| 35 | 233201414 | Hex. Flange Elastic Nut M10 |
| 36 | 505071857 | RH UPPER ARM - Call your local BRP dealership |
| 36 | 505071859 | LH UPPER ARM - Call your local BRP dealership |
| 37 | 505071872 | Upper Ball Joint |
| 38 | 250000047 | Hex. Flange Elastic Nut M12 |
| 39 | 234021410 | Flat Washer 12 mm |
| 40 | 503189276 | Washer |
| 41 | 211400017 | Cotter Pin |
| 42 | 250000047 | Hex. Flange Elastic Nut M12 |
| 43 | 505073636 | Ball Joint This part replaces 505071891. |
| 44 | 293370035 | Circlip |
| 45 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000216. |
| 46 | 250001063 | Hex. Screw M10 X 75 This part replaces 250000218. |
| 47 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100073. |
| 48 | 250100165 | Hex. Flange Elastic Nut M10 This part replaces 250100073. |
| 49 | 505070960 | Aluminium Bushing |
| 50 | 505070566 | Arm Bushing |
| 51 | 232501416 | Elastic Flange Nut M10 |
| 52 | 503189564 | Washer |
| 53 | 516002747 | R.a.s. Suspension Decal |
