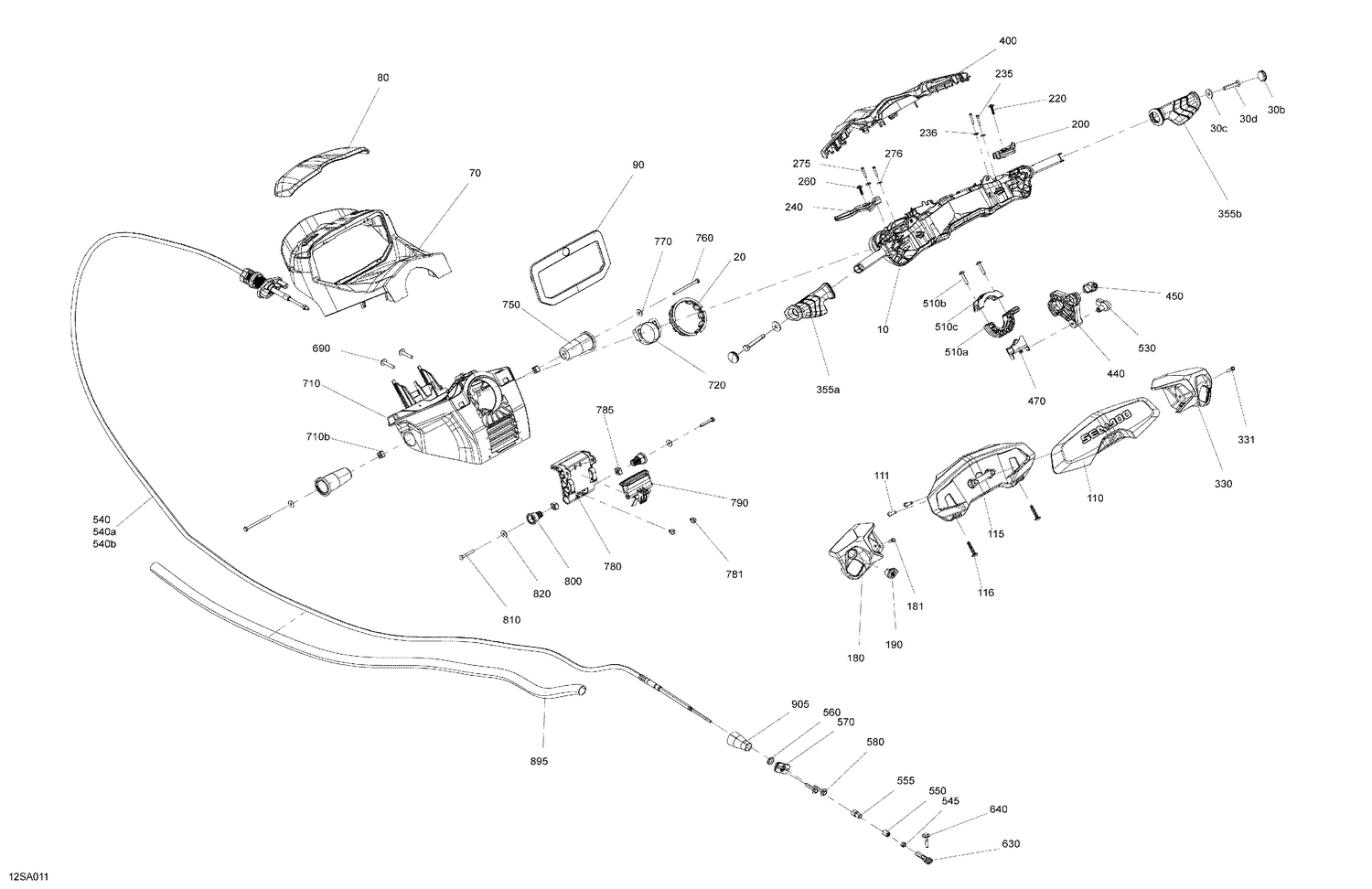

| Ref | Part Number | Description |
|---|
| 10 |
277002134 |
Steering Column |
| 20 |
277001874 |
Wear Ring |
| 30b |
277000203 |
Black, Cap |
| 30c |
234062600 |
Flat Washer M6, Stainless |
| 30d |
207364560 |
Hex. Screw M6 x 45, Scotch Grip |
| 110 |
277002025 |
Deep Black, Steering Pad |
| 111 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 115 |
277002317 |
Steering Pad Support This part replaces 277002034. |
| 116 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 This part replaces 250000828. |
| 180 |
277002233 |
LH Cover This part replaces 277001983. |
| 181 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 190 |
277002327 |
Red Button Switch This part replaces 277002052. |
| 200 |
277002138 |
Hand Lever Accelerator |
| 220 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 235 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 236 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 260 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 275 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 276 |
234042600 |
Flat Washer 4 mm, Stainless |
| 330 |
277002235 |
RH Cover This part replaces 277002067. |
| 331 |
211000023 |
Hex. Screw 10-14 X 7/8” |
| 355a |
277001958 |
Deep Black, LH Handle Grip |
| 355b |
277001946 |
Deep Black, RH Handle Grip |
| 400 |
277001985 |
Steering Cover |
| 450 |
Not |
Available As Spare Part - Arm Steering Kit |
| 470 |
277001654 |
Spacer |
| 510a |
295501183 |
Steering Arm Kit |
| 510b |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 510c |
277002085 |
C Clamp |
| 530 |
277002119 |
End Fitting Cable |
| 540a |
211100056 |
Hex. Nut 1/4"-28 |
| 540b |
277001582 |
Wiper Rod |
| 545 |
211100056 |
Hex. Nut 1/4"-28 |
| 550 |
277001582 |
Wiper Rod |
| 555 |
277001583 |
End Piece |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001856 |
Ring Halves |
| 580 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 630 |
277000775 |
Ball Joint |
| 640 |
250000970 |
Hex Sems Screw M6X35 |
| 690 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 710b |
269502408 |
Housing Nut M6 |
| 720 |
277002318 |
Wear Ring This part replaces 277001741. |
| 750 |
277001605 |
Steering Support Pivot |
| 760 |
207168060 |
Hex Screw M6 X 80 |
| 770 |
234062600 |
Flat Washer M6, Stainless |
| 780 |
277001996 |
Adjustment Handle |
| 781 |
293830005 |
Rubber Bumper |
| 785 |
269502408 |
Housing Nut M6 |
| 790 |
277002010 |
Lock |
| 800 |
277001652 |
Pivot |
| 810 |
207064060 |
Hex. Screw M6 X 40 |
| 820 |
234062600 |
Flat Washer M6, Stainless |
| 895 |
276000520 |
Corrugated Sheath 22MM - 1250MM |
