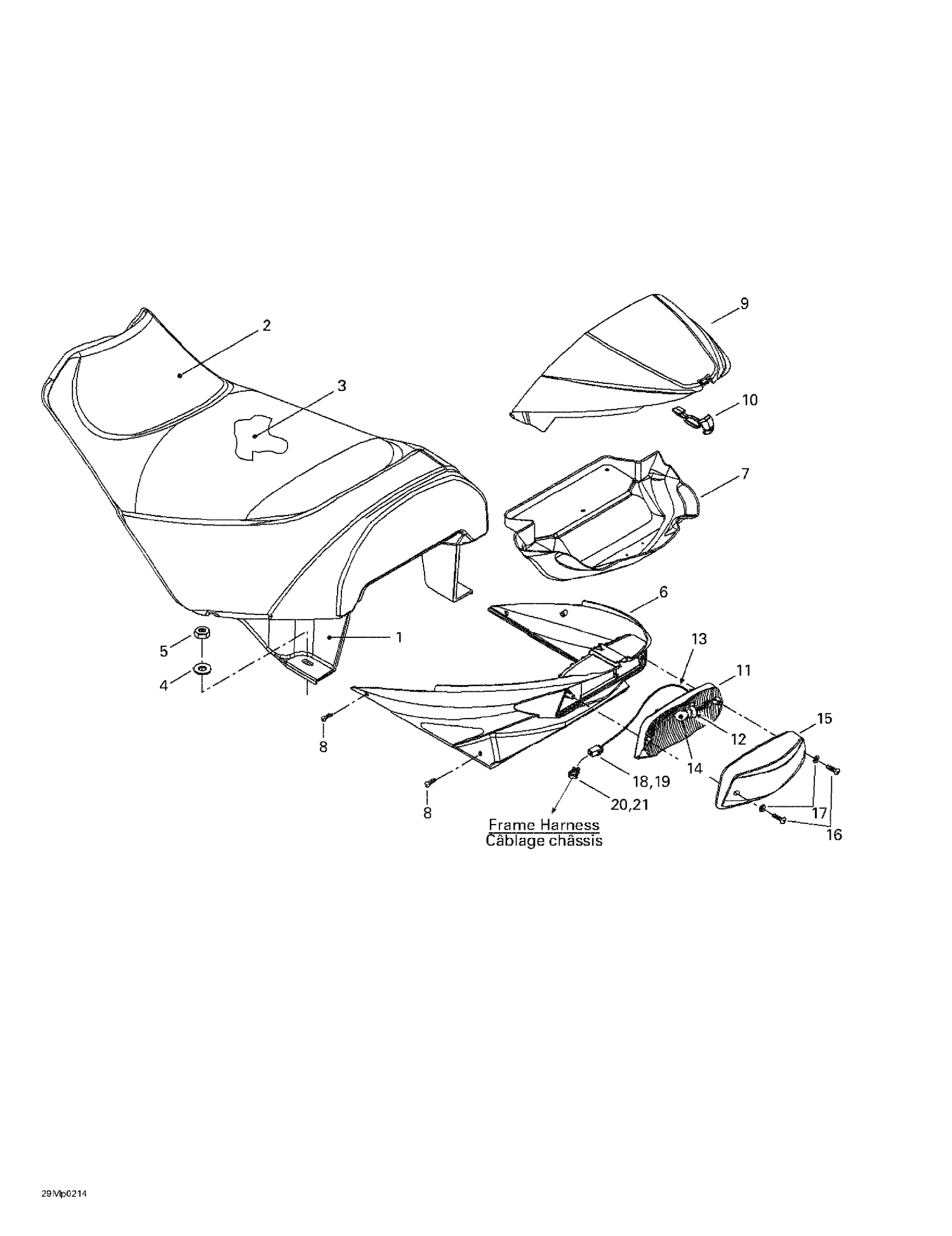

09- Seat
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 510003819 | Seat Base |
| 2 | 510003820 | Seat Cover |
| 3 | 510003821 | Seat Foam |
| 4 | 234082410 | Flat Washer 8 mm |
| 5 | 232581414 | Hex. Elastic Stop Nut M8 |
| 6 | 510004153 | Trunk |
| 7 | 510004021 | BOX LINER - Call your local BRP dealership |
| 8 | 211000121 | TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership |
| 9 | 510003865 | Cover |
| 10 | 510003917 | Bracket |
| 11 | 510004018 | REFLECTOR - Call your local BRP dealership |
| 12 | 414979411 | Rubber Damper |
| 13 | 515175516 | Fitting |
| 14 | 520000758 | Bulb This part replaces 410504000. |
| 15 | 511000315 | Lens This part replaces 510003826. |
| 16 | 209632580 | PHILLIPS TAPPING SCREW 3.9 X 25 - Call your local BRP dealership |
| 17 | 414516400 | Washer - Call your local BRP dealership |
| 18 | 515175494 | Male Housing, 3 Circuits |
| 19 | 515175232 | Male Terminal |
| 20 | 515175231 | Female Terminal |
