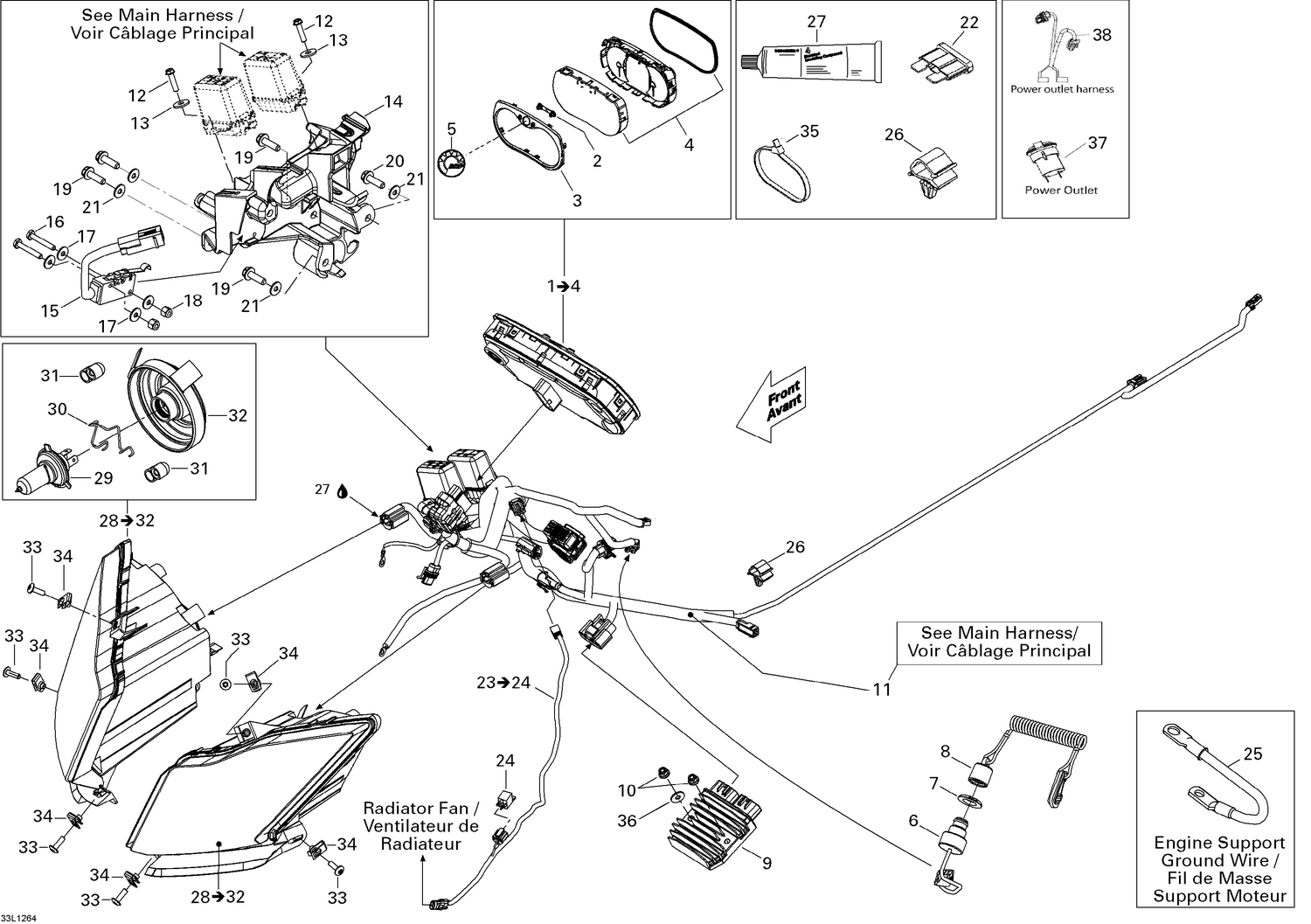

10- Electrical System

10- Electrical System

Parts (42)

RefPart NumberDescription
2 415129355 Speedometer Button
3 415129370 Gauge Ring
4 415129349 Lens
5 516006224 BRP Logo, 20MM x 2MM This part replaces 219902677.
6 515177249 Dess Switch
7 278002963 Safety Nut (DESS Switch) This part replaces 278000508.
8 515178284 Dess. This part replaces 515177057.
9 710010539 Voltage Regulator This part replaces 278002021.
10 233261414 Hex. Flange Elastic Nut M6 x 1.0
11 515177126 WIRING HARNESS MAIN - Call your local BRP dealership
12 211000023 Hex. Screw 10-14 X 7/8”
13 234062600 Flat Washer M6, Stainless
14 515176866 PLATE - Call your local BRP dealership
15 515176881 SWITCH ASS'Y - Call your local BRP dealership
16 207132044 Hex Screw M3 X 20
17 234032600 Flat Washer M3, Stainless
18 232531423 Elastic Stop Nut M3
19 210262040 Hex. Flanged Screw M6 X 20
20 210262550 Hex. Flanged Forming Screw M6 X 25 This part replaces 210262580.
21 250200039 Flat Washer
22 710000742 Little Fuse, 5 Ampere
22 710000744 Little Fuse, 10 Ampere
22 710000745 Little Fuse, 15 Ampere
22 710000746 Little Fuse, 20 Ampere
22 710000747 Little Fuse, 30 Amperes
24 710010053 RELAY This part replaces 410113200.
25 515177014 Ground Wire
26 515176795 Tie Rap Mount (Screwable)
27 293550004 Dielectric Grease, 150 g
29 515176274 Halogen Bulb, 60/55 W, 12 V
30 Not Available As Spare Part - Bulb Holder
31 515176498 Cap
32 219800280 Rubber Cap Protector This part replaces 515176499.
33 250000722 Torx Truss Screw M6 x 20 This part replaces 250000128.
34 250100198 Panel Nut , M6 X 1.0 This part replaces 250100113.
35 293750001 Tie-Rap 94 mm
35 293750002 Tie-Rap 142 mm
35 293750008 Tie-Rap 368 mm
35 293750009 Tie-Rap 173 mm
35 414115200 Tie-Rap 180 mm
36 234461608 External Serrated Lock Washer 6 mm
37 710001248 DC Outlet
