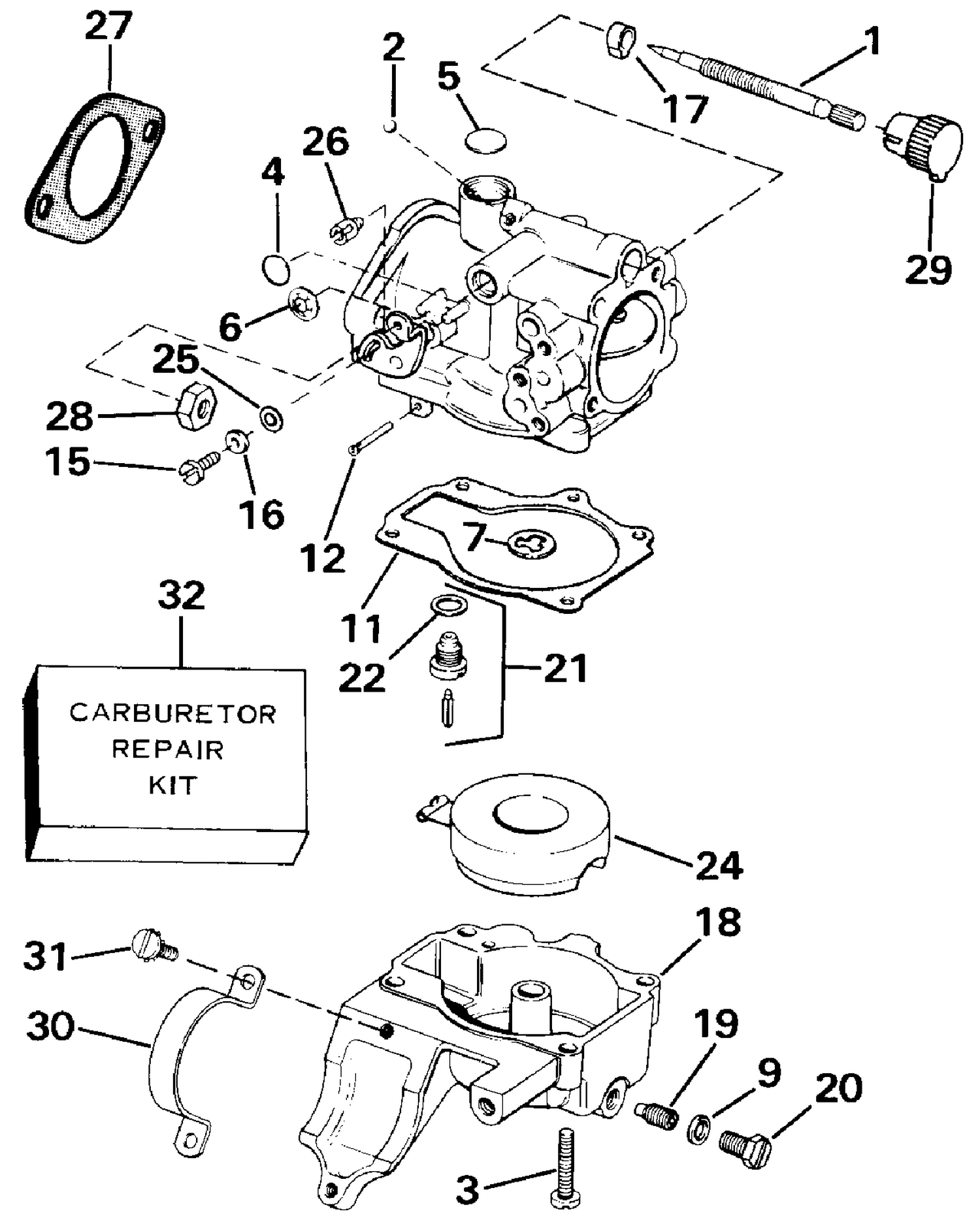

CARBURETOR
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0432761 | NEEDLE VALVE, Slow speed This part replaces 0332917. |
| 3 | 0329513 | SCREW, Float bowl |
| 17 | 0315232 | RETAINER , Needle valve stbd |
| 18 | 0439383 | FLOAT CHAMBER This part replaces 0393131. |
| 26 | 0313329 | LOCKWASHER, Carburetor link |
| 27 | 0325092 | GASKET |
| 28 | 0316355 | BUT, Carburetor mounting |
| 29 | 0328063 | ADJUSTING KNOB, Slow speed |
| 30 | 0328907 | COLLIER, amorçage vers support |
| 31 | 0329594 | SCREW, Cam follower |
| 0398780 | 0398780 | CARBURETOR ASSY. |
