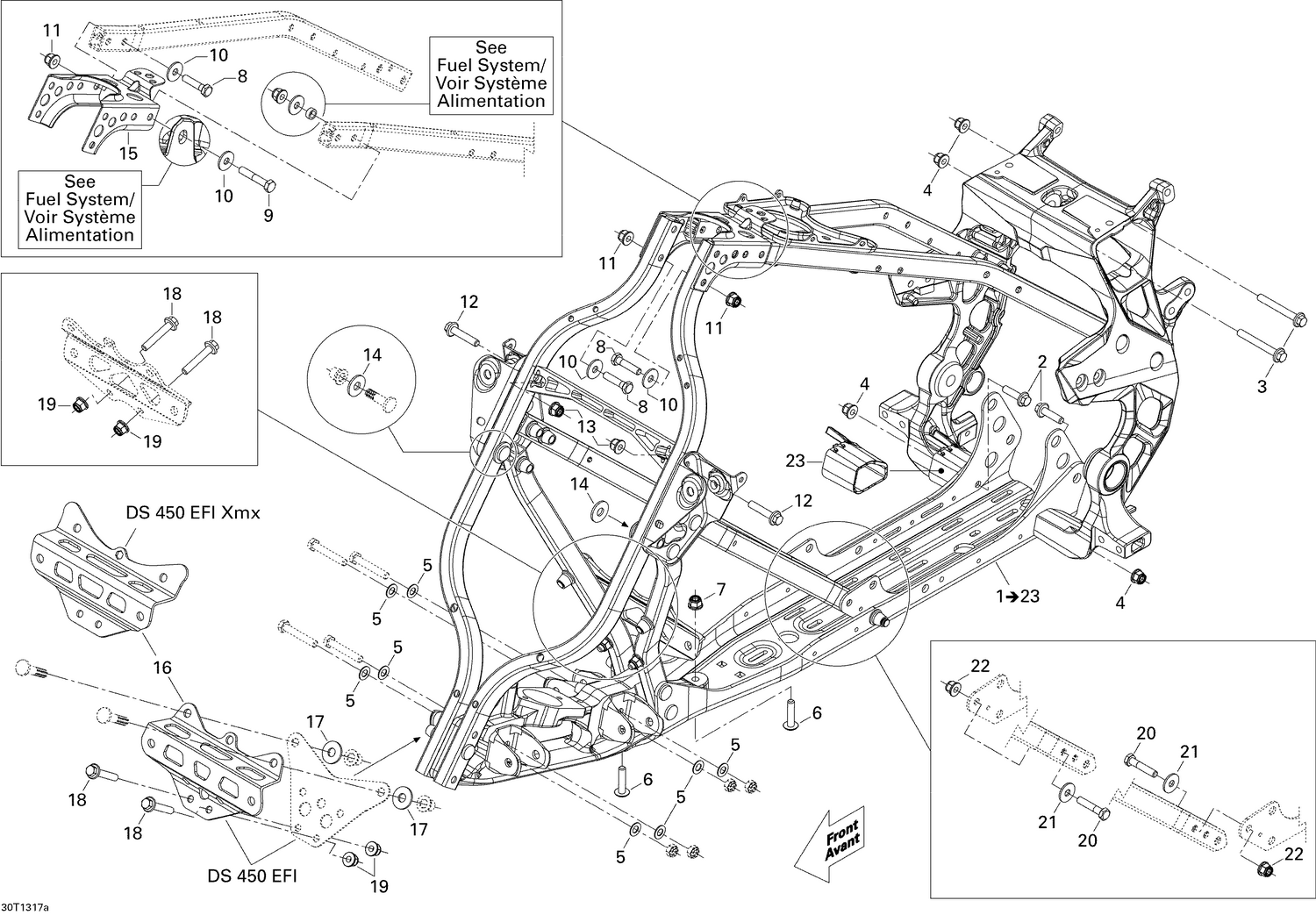

09- Frame, System 1
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207683034 | Hex. Flange Screw M8 X 30 |
| 3 | 207686534 | Hex. Flange Screw M8 x 65 |
| 4 | 233281434 | Hex. Flange Elastic Nut M8 |
| 5 | 506151252 | Washer |
| 6 | 250000316 | TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership |
| 7 | 233281434 | Hex. Flange Elastic Nut M8 |
| 8 | 207083544 | Hex. Screw M8 X 35 |
| 9 | 207084544 | Hex. Screw M8 X 45 |
| 10 | 234082410 | Flat Washer 8 mm |
| 11 | 233281434 | Hex. Flange Elastic Nut M8 |
| 12 | 207684034 | Hex. Flange Screw M8 X 40 |
| 13 | 233281434 | Hex. Flange Elastic Nut M8 |
| 14 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 15 | 705201072 | PLATE - Call your local BRP dealership |
| 16 | 705202172 | FRONT BRAKET A-ARM - Call your local BRP dealership |
| 17 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 18 | 207684534 | HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership |
| 19 | 233281434 | Hex. Flange Elastic Nut M8 |
| 20 | 207084044 | Hex. Screw M8 X 40 |
| 21 | 234082410 | Flat Washer 8 mm |
| 22 | 233281434 | Hex. Flange Elastic Nut M8 |
