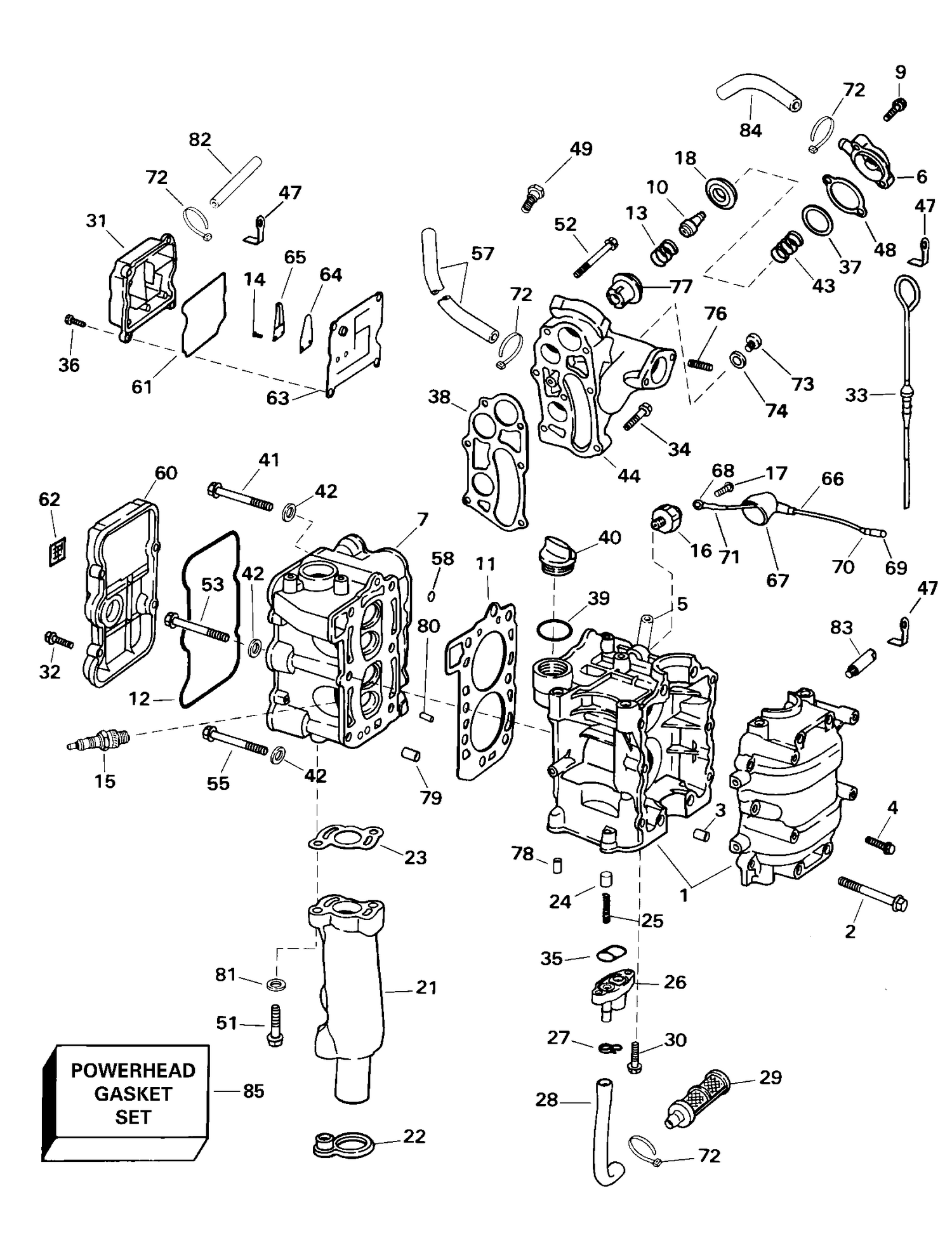

| Ref | Part Number | Description |
|---|
| 1 |
0449503 |
CYLINDER & CRANKCASE ASSY. |
| 6 |
0445139 |
COVER, Thermostat This part replaces 0449508. |
| 7 |
0445130 |
CYLINDER HEAD & SEAT ASSY. |
| 14 |
0446009 |
SCREW, Reed stop |
| 15 |
0449537 |
SPARK PLUG, Champion, RP10HC |
| 16 |
0445037 |
MANOSTAT D'HUILE |
| 18 |
0435957 |
DIAPHRAGM |
| 21 |
0445095 |
TUBE ASSY., Exhaust |
| 24 |
0446081 |
RELIEF VALVE |
| 25 |
0446080 |
SPRING, Relief valve |
| 26 |
0445097 |
HOUSING, Relief valve |
| 27 |
0446311 |
CLAMP, Oil hose to housing |
| 28 |
0446085 |
HOSE, Oil suction |
| 31 |
0446001 |
COVER ASSY., Breather |
| 33 |
0445020 |
DIPSTICK, Oil |
| 34 |
0446032 |
VIS, admission vers culasse |
| 35 |
0446082 |
SEAL, Housing, relief valve |
| 36 |
0446008 |
VIS, reniflard vers culasse |
| 40 |
0446110 |
PLUG, Oil fill |
| 41 |
0446117 |
SCREW, Cylinder head |
| 42 |
0446121 |
WASHER, Cylinder head to block |
| 43 |
0446438 |
SPRING, Pressure relief |
| 44 |
0446064 |
INTAKE MANIFOLD |
| 47 |
0115499 |
CLAMP, Hose |
| 49 |
0341193 |
PLUG, Cylinder head |
| 51 |
0446314 |
SCREW, Exhaust tube to cyl. head |
| 52 |
0446068 |
SCREW, Intake to cylinder head |
| 53 |
0446119 |
SCREW, Cyl. head to cyl. block |
| 55 |
0446120 |
SCREW, Cyl. head to cyl. block |
| 60 |
0446000 |
COVER, Cylinder head |
| 62 |
0446003 |
MESH, Breather |
| 63 |
0446005 |
PLATE |
| 64 |
0446006 |
REED, Breather |
| 65 |
0446007 |
STOP, Reed |
| 66 |
0445044 |
COVER & LEAD ASSY. |
| 72 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 76 |
0446122 |
STUD, Intake manifold |
| 78 |
0446107 |
PIN, Dowel, bracket to crankcase |
| 79 |
0446109 |
PIN, Dowel, cylinder head |
| 80 |
0446112 |
PIN, Dowel, cylinder head |
| 81 |
0446078 |
WASHER, Exhaust tube |
| 83 |
0446283 |
EXTENSION |
