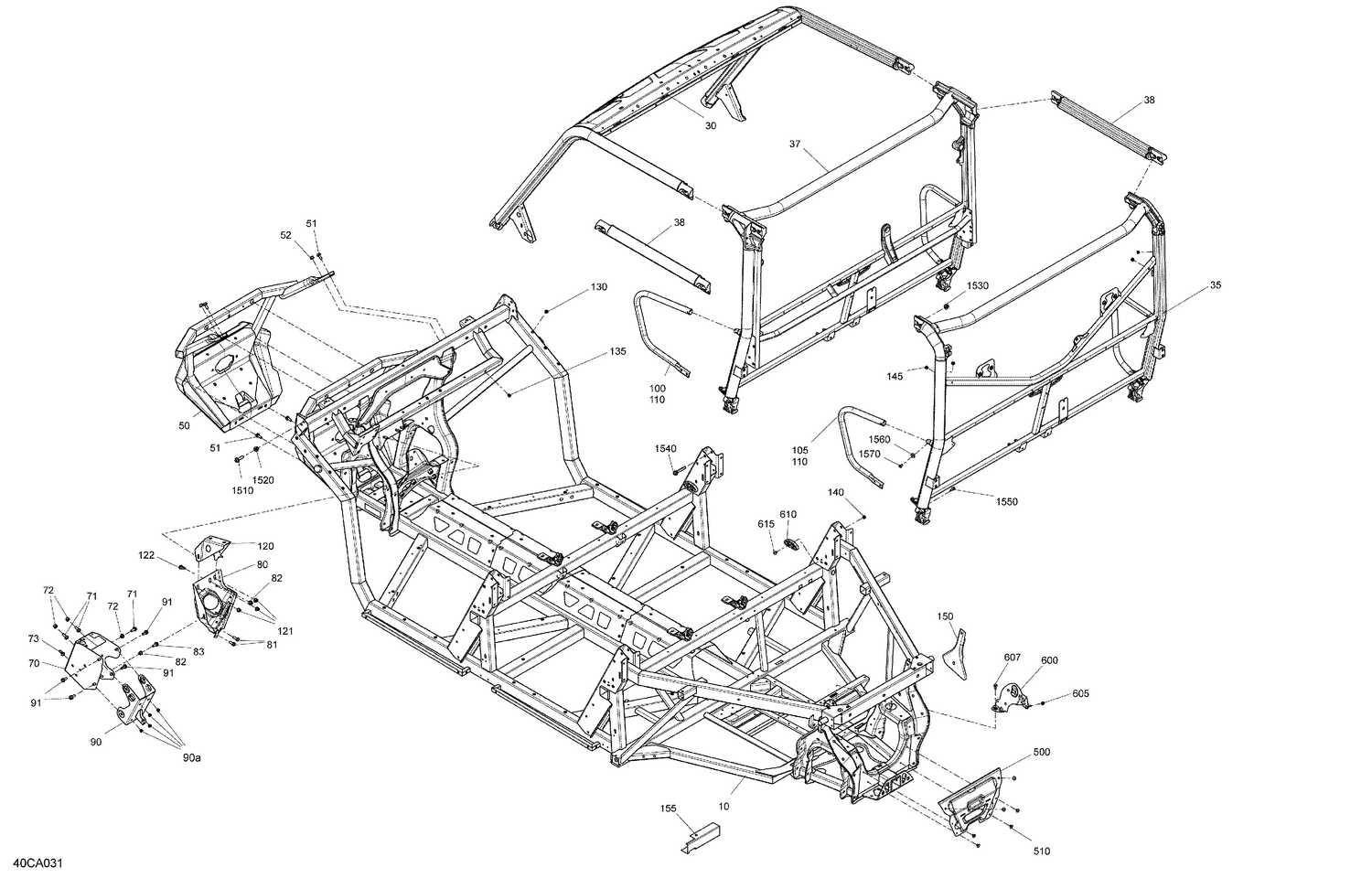

| Ref | Part Number | Description |
|---|
| 10 |
715009077 |
Deep Black, Chassis Kit This part replaces 715007489. |
| 30 |
715008406 |
Front Cage Ass'y This part replaces 715006530. |
| 35 |
715006532 |
Rear Cage Profile Ass'y |
| 37 |
715006667 |
Deep Black, Central Cage Ass'y |
| 38 |
705209848 |
Deep Black, Cage Extension This part replaces 705205401. |
| 50 |
705207588 |
Deep Black, Front Bumper |
| 51 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 52 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 70 |
705209388 |
Module Support |
| 71 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 72 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 73 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 81 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 82 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 83 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 90a |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 91 |
207582044 |
Hex. Flange Screw M8 X 20, Scotch Grip |
| 100 |
705204594 |
Deep Black, LH Protector Tube |
| 105 |
705204590 |
LH Side Protect |
| 110 |
705204592 |
Deep Black, RH Protector Tube |
| 120 |
705208742 |
Support |
| 121 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 122 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 130 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 140 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 145 |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 150 |
705014849 |
Heat Shield |
| 155 |
705015496 |
Heat Shield |
| 500 |
705207753 |
Rear Chassis Reinforcement |
| 510 |
293150104 |
Pop Rivet 3/16" |
| 600 |
710007522 |
Voltage Regulator Support |
| 605 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 607 |
207561644 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 610 |
705208203 |
Spacer |
| 615 |
293150104 |
Pop Rivet 3/16" |
| 1510 |
250000855 |
Hex. Flange Screw M10 X 35 |
| 1520 |
233201436 |
Hex. Flange Elastic Nut M10 |
| 1530 |
233201466 |
Flange Elastic Nut M10 |
| 1540 |
207606046 |
Hex. Flange Screw M10 X 6 |
| 1550 |
207562054 |
Hex. Flange Screw S.Grip M6 X 20 |
| 1560 |
705202223 |
Offset Washer |
