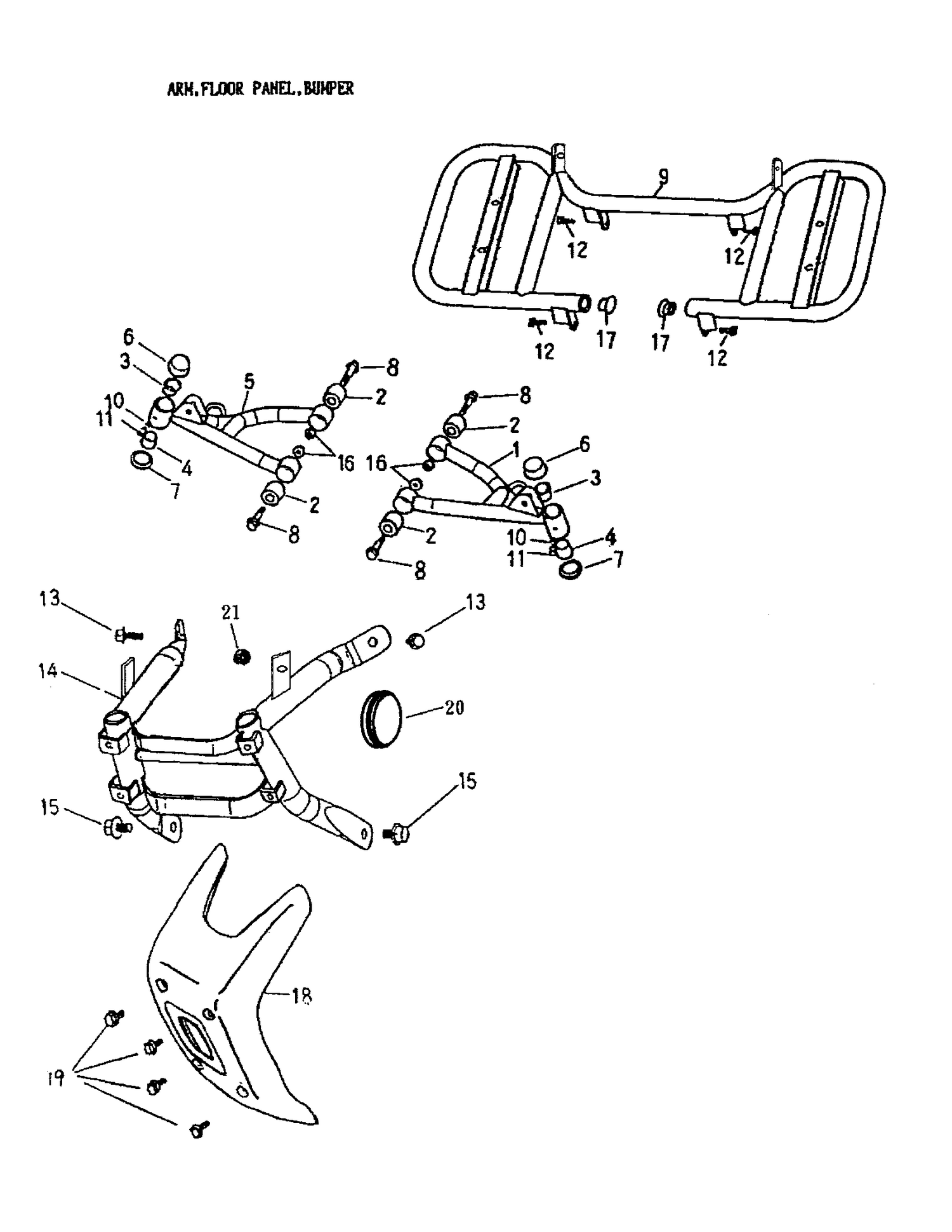

09- Arm, Foot Rest, Bumper
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A51300145001 | Left Suspension Arm |
| 2 | A96400102829 | RUBBER BUSHING, 10 X 28 X 29 - Call your local BRP dealership |
| 3 | A51201145000 | BUSH - Call your local BRP dealership |
| 4 | A51202145000 | BUSH - Call your local BRP dealership |
| 5 | A51200145001 | RIGHT SUSPENSION ARM - Call your local BRP dealership |
| 6 | A5120314500A | WATERPROOF COVER - Call your local BRP dealership |
| 7 | A51204145001 | Dustproof Cover |
| 8 | A960001004814G | HEXAGONAL WASHER FACE BOLT M10X48 - Call your local BRP dealership |
| 9 | A64310166000 | Floor Panel |
| 10 | A9650106000 | GREASE VALVE - Call your local BRP dealership |
| 11 | A9650206000 | GREASE VALVE CAP - Call your local BRP dealership |
| 12 | A960001002014G | HEXAGONAL WASHER FACE BOLT M10X20 - Call your local BRP dealership |
| 13 | A960000601610G | HEXAGONAL WASHER FACE BOLT M6X16 - Call your local BRP dealership |
| 14 | A50104166000 | Bumper |
| 15 | A960000801512G | HEXAGONAL WASHER FACE BOLT M8X15 - Call your local BRP dealership |
| 16 | V9035010000010LL | Nylon Nut M10 This part replaces A9035010000G. |
| 17 | A64330145000 | Floor Panel Rubber Cap |
| 19 | A960000601210G | HEXAGONAL WASHER FACE BOLT M6X12 - Call your local BRP dealership |
| 20 | A33741145000YL | REFLECTOR - Call your local BRP dealership |
