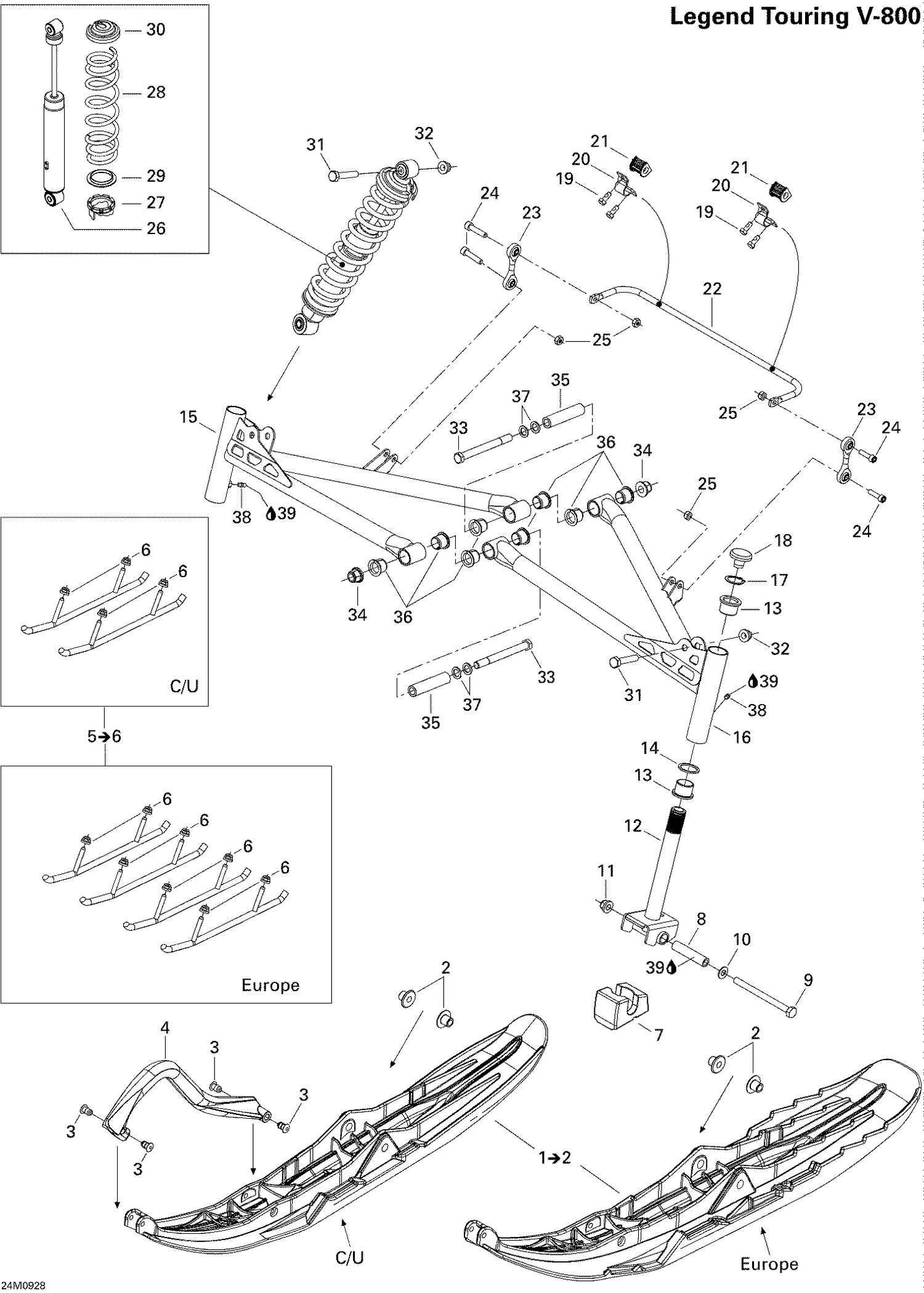

| Ref | Part Number | Description |
|---|
| 2 |
505071781 |
Ski Bushing |
| 3 |
505071812 |
Retainer 17mm long |
| 4 |
505070963 |
Black, Handle |
| 7 |
505072018 |
SKI STOPPER - Call your local BRP dealership |
| 8 |
506133300 |
Spacer |
| 9 |
250000703 |
Hex. Screw M10 X 130 This part replaces 230003044. |
| 10 |
234001410 |
Flat Washer 10 mm |
| 11 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 12 |
505072001 |
SKI LEG - Call your local BRP dealership |
| 13 |
505070003 |
Cushion |
| 14 |
505070004 |
WASHER - Call your local BRP dealership |
| 15 |
505071739 |
RH LOWER ARM - Call your local BRP dealership |
| 16 |
505071740 |
LH LOWER ARM - Call your local BRP dealership |
| 17 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 18 |
572091300 |
Cap |
| 19 |
250000281 |
SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership |
| 20 |
506095800 |
CLAMP - Call your local BRP dealership |
| 21 |
505072225 |
TORSION BUSHING - Call your local BRP dealership |
| 22 |
505072226 |
STABILISATOR - Call your local BRP dealership |
| 23 |
505071479 |
BALL JOINT - Call your local BRP dealership |
| 24 |
205083544 |
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 25 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 28 |
505071849 |
FULL MOON SPRING - Call your local BRP dealership |
| 30 |
706200881 |
Spring Stopper |
| 31 |
207005544 |
Hex. Screw M10 X 55 |
| 32 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 33 |
230022044 |
HEX. SCREW M12 X 120 - Call your local BRP dealership |
| 34 |
233221414 |
Hex. Flange Elastic Nut M12 |
| 35 |
505071366 |
BUSHING - Call your local BRP dealership |
| 36 |
505072094 |
BUSHING - Call your local BRP dealership |
| 37 |
503189276 |
Washer |
| 38 |
408200700 |
Grease Fitting |
