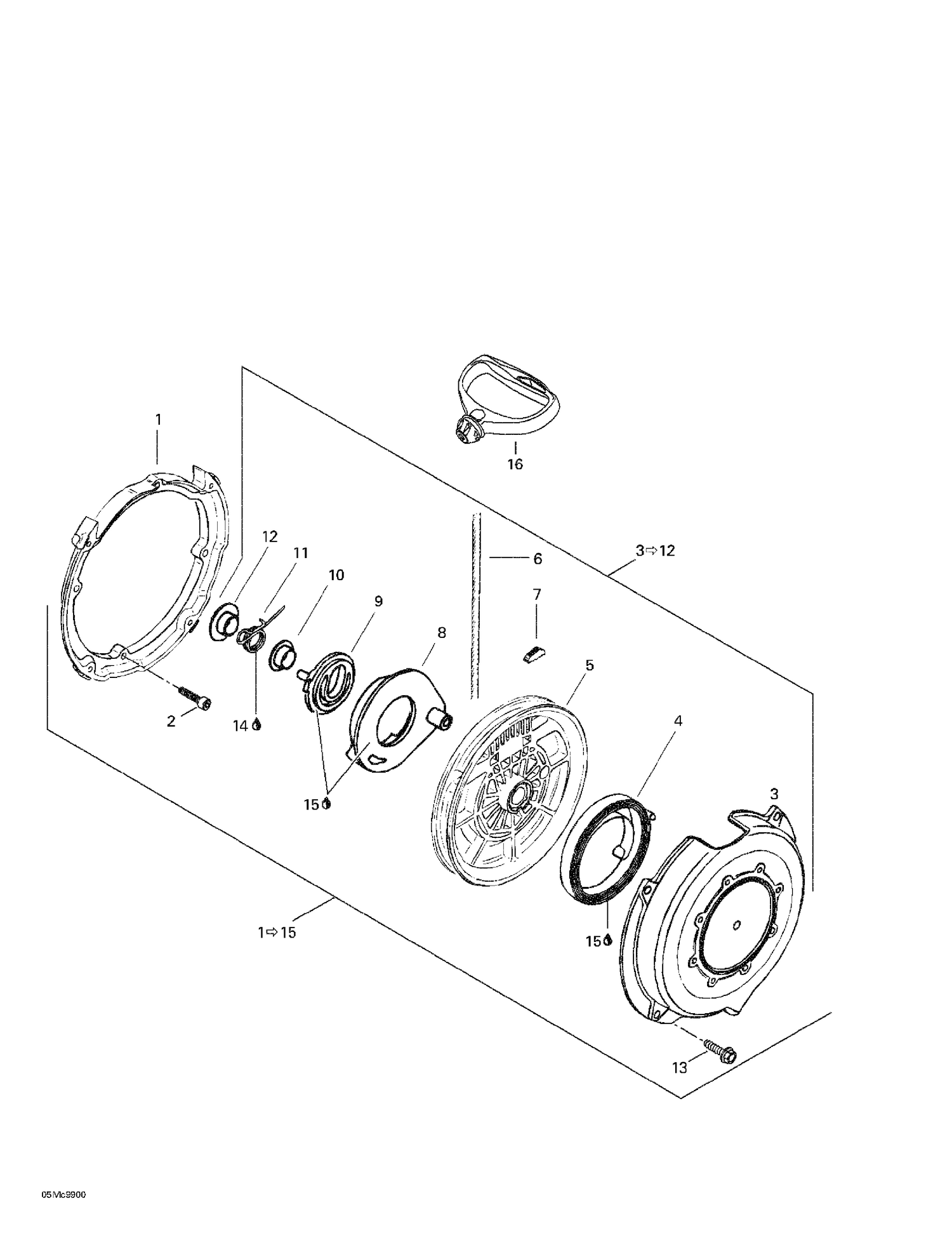

| Ref | Part Number | Description |
|---|
| 1 |
420810955 |
Flange Connector This part replaces 420810952. |
| 2 |
Not |
Available As Spare Part - Socket Head Screw M6 x 22 |
| 3 |
420811340 |
Starter Housing |
| 4 |
420939115 |
Rewind Spring |
| 5 |
420852480 |
Rope Sheave |
| 6 |
219704403 |
Was 412500100 Rope-Starter |
| 7 |
420852070 |
Key Clamp |
| 8 |
420852296 |
Pawl This part replaces 420852293. |
| 9 |
420852301 |
PAWL LOCK - Call your local BRP dealership |
| 10 |
420847926 |
Stage Sleeve This part replaces 420847925. |
| 11 |
420938986 |
Pawl Spring |
| 12 |
420847920 |
Stage Sleeve |
| 13 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 15 |
420879061 |
Silicone Compound Grease |
