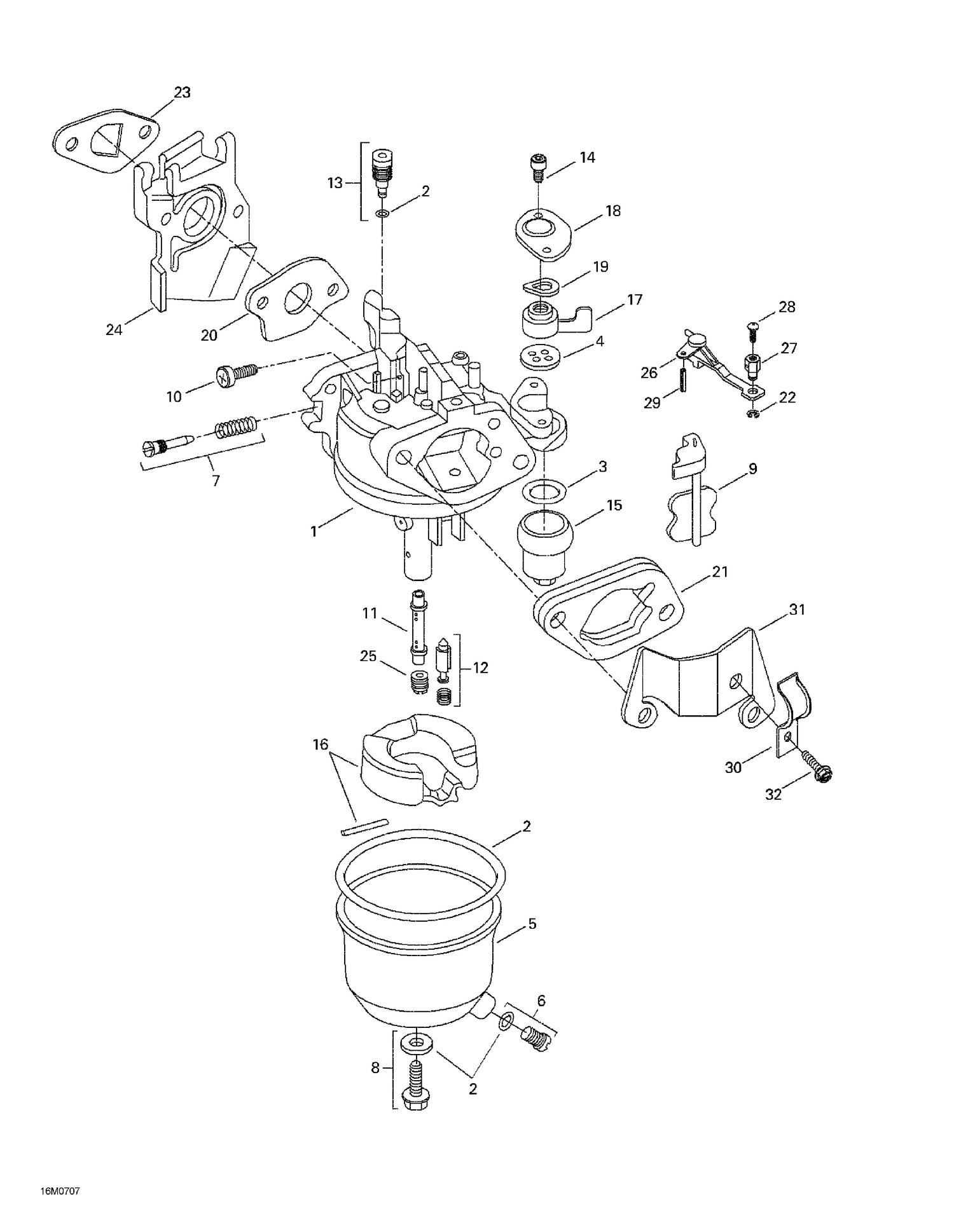

02- Carburetor
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 3 | H16955283000 | Packard |
| 4 | H16957ZE1812 | Packing |
| 6 | H16024ZE1811 | Drain Bolt |
| 7 | H16016ZE0005 | Drain Screw |
| 8 | H16028ZE0005 | Screw |
| 9 | H16044ZE0005 | Choke |
| 10 | H16124ZE0005 | Screw |
| 11 | H16166ZH7W50 | Nozzle |
| 12 | H16011ZE0005 | Valve Set |
| 13 | H99204ZE00350 | Pilot Jet 35 |
| 14 | H93500030080G | Screw |
| 15 | H16967ZE0811 | Cup |
| 16 | H16013ZE0005 | Float |
| 17 | H16953ZE1406 | Lever |
| 18 | H16954ZE1812 | Lever Plate |
| 19 | H16956ZE1811 | Spring |
| 20 | H16221ZH8801 | Packing |
| 21 | H16220ZE1020 | Spacer |
| 22 | H90605230000 | Circlip |
| 23 | H16212ZH7800 | Packing |
| 24 | H16211ZE0000 | Insulator |
| 25 | H99101ZH70650 | Main Jet 65 |
| 25 | H99101ZH70680 | Main Jet 68 |
| 25 | H99101ZH80620 | Main Jet 62 |
| 26 | H16610ZE1810 | Lever |
| 27 | H16617890010 | Holder |
| 28 | 207141044 | HEX. SCREW M4 X 10 - Call your local BRP dealership |
| 29 | H9430520122 | Spring Pin |
| 30 | H16582883300 | Holder |
| 31 | H16598ZE1000 | Stay |
