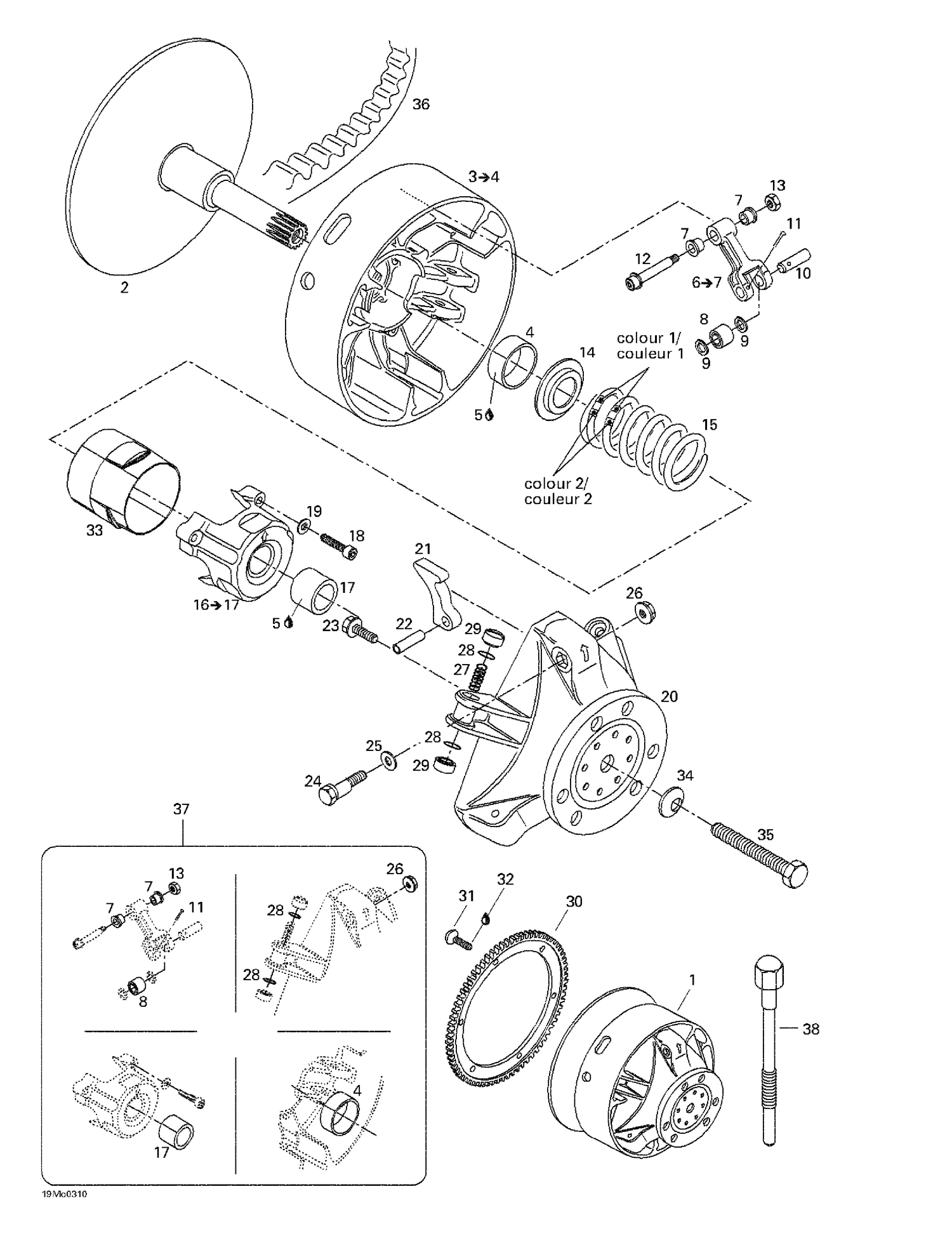

05- Drive Pulley
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | Not | Available As Spare Part - Drive Pulley Ass'y |
| 4 | 417004201 | Bushing |
| 5 | 413703100 | Loctite 609, 10 ml |
| 7 | 417004305 | Bushing |
| 8 | 417222947 | Roller This part replaces 417003900. |
| 9 | 417004302 | Stopper Washer |
| 10 | 417004308 | Pin |
| 11 | 250400060 | Cotter Pin This part replaces 732958001. |
| 12 | 417004800 | SCREW ASSY - Call your local BRP dealership |
| 13 | 232561414 | Elastic Stop Nut M6 |
| 14 | 417222044 | Spring Seat |
| 17 | 417004501 | Bushing |
| 18 | 250000038 | Socket Head Screw M6 X 40 |
| 19 | 420245370 | WASHER - Call your local BRP dealership |
| 20 | 417222081 | GOVERNOR CUP ASSY - Call your local BRP dealership |
| 22 | 732804009 | Pin M8 X 24 |
| 23 | 210361890 | HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership |
| 24 | 417222955 | CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 25 | 417005600 | Washer |
| 26 | 233061414 | Hex. Flange Nut M6 |
| 27 | 417005700 | Spring |
| 28 | 732401030 | O-Ring |
| 29 | 417223021 | Slider Shoe This part replaces 417005800. |
| 30 | 417300057 | Ring Gear |
| 31 | 236281684 | Hex. Screw M8 X 16 |
| 32 | 293800005 | Loctite 271, 10 ml |
| 34 | 250200006 | Spring Washer 14 mm |
| 35 | 417120000 | Drive Pulley Bolt |
| 37 | 417006100 | Clutch Repair Kit |
