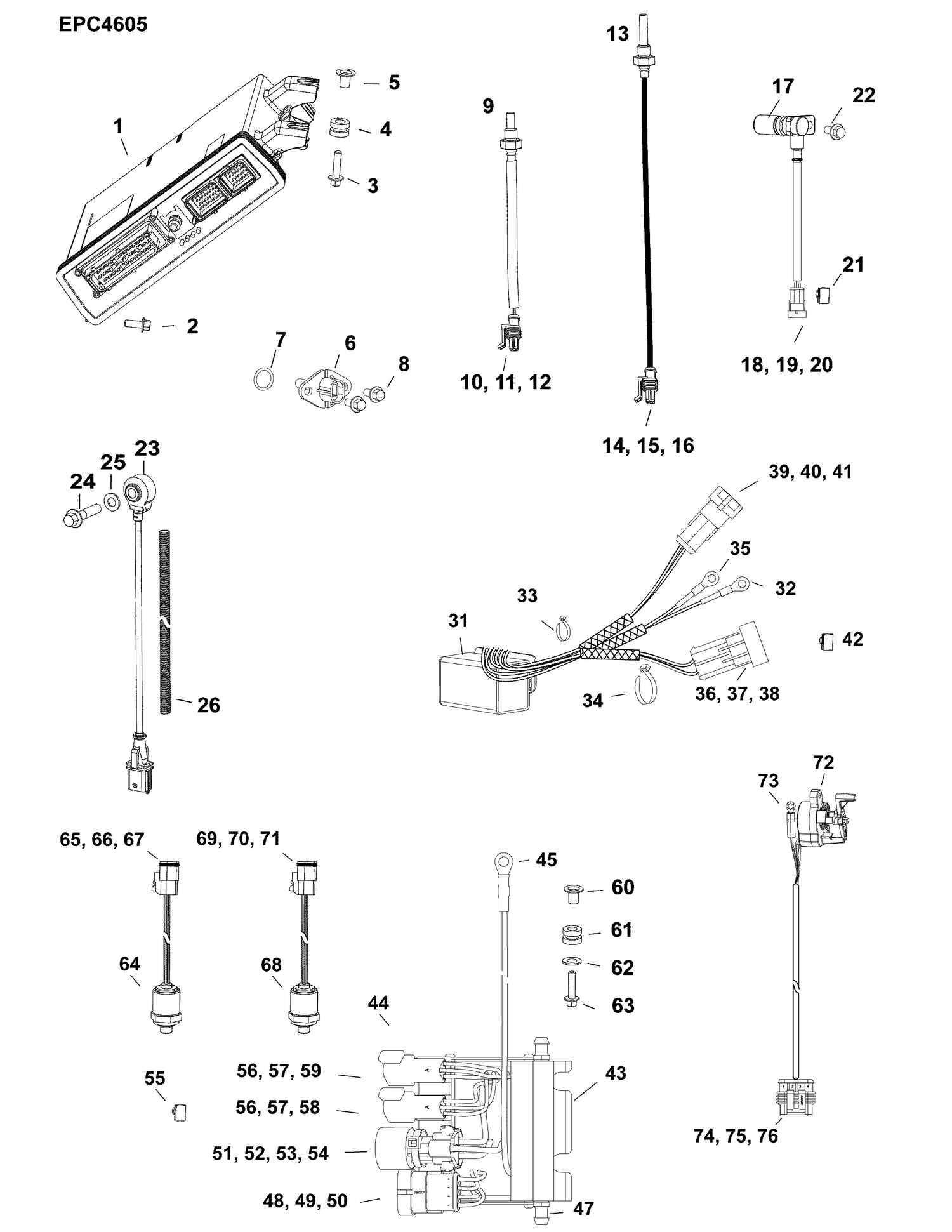

02-4_MODULES & SENSORS
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 9 | 3011989 | SENSOR, Engine Temperature |
| 17 | 0587402 | SENSOR, Crankshaft position (CPS) This part replaces 0587014. |
| 23 | 0587042 | SENSOR, Knock |
| 26 | 3011666 | TUBING, Convoluted |
| 34 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 35 | 0600138 | Ring Terminal |
| 43 | 0587430 | DPS CONTROL MODULE This part replaces 0587264. |
| 45 | 0600138 | Ring Terminal |
| 66 | Not | Available As Spare Part - **LOCKWEDGE, Blue |
| 72 | 0587196 | SENDING UNIT ASSEMBLY |
