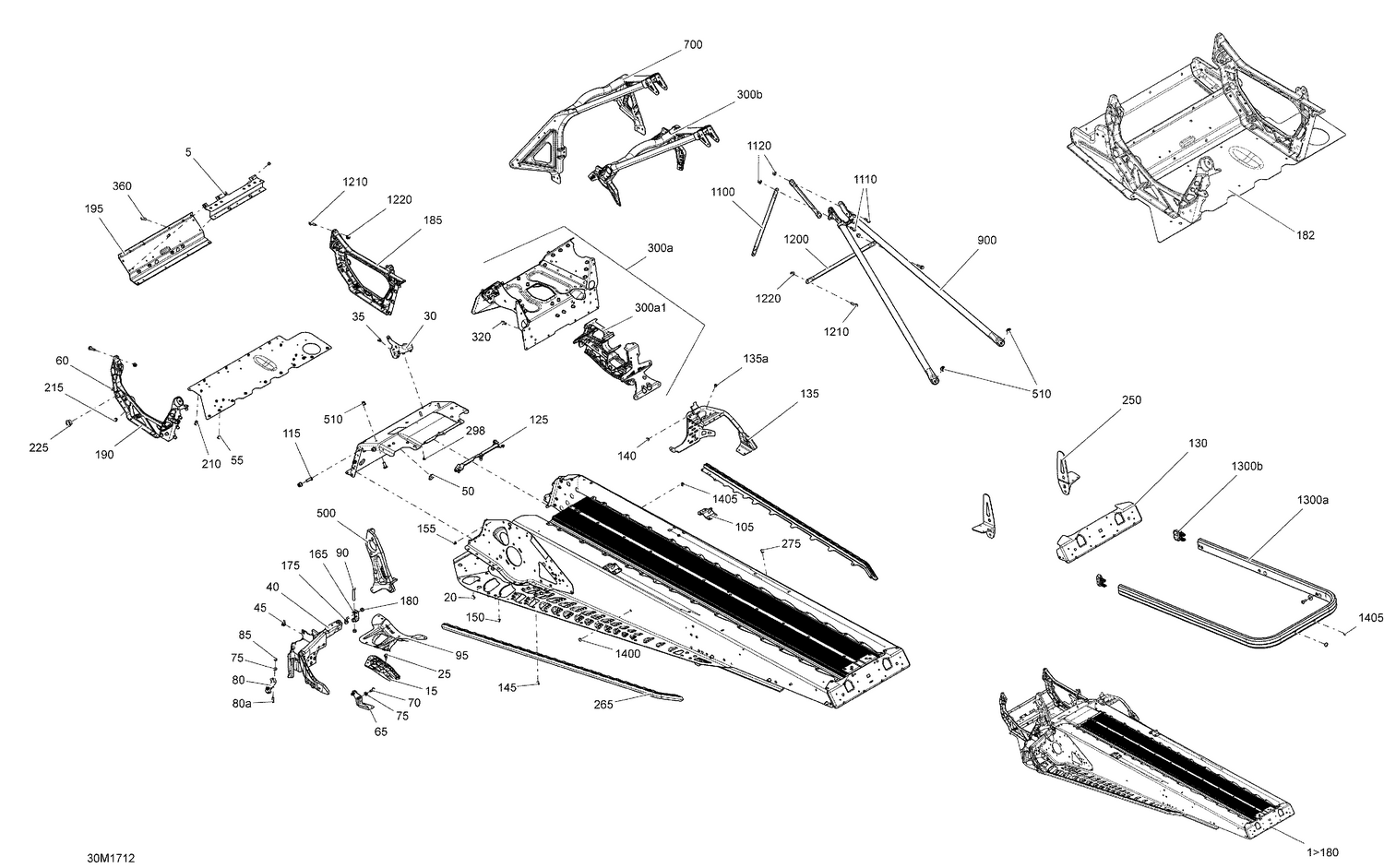

| Ref | Part Number | Description |
|---|
| 5 |
518326120 |
ENGINE SUPPORT - Call your local BRP dealership |
| 15 |
518325782 |
RH Deflector, Black Polypropylene |
| 15 |
518325783 |
LH Deflector, Black Polypropylene |
| 20 |
293150104 |
Pop Rivet 3/16" |
| 25 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 30 |
518325559 |
RH Engine Support |
| 35 |
293150096 |
Hemlock Rivet, 6.5 mm |
| 40 |
518326820 |
LH Stirup |
| 45 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 50 |
293730052 |
Black, Plug |
| 55 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 60 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 65 |
518326960 |
Support |
| 70 |
250000536 |
Tork Screw M6 X 18 |
| 75 |
250200039 |
Flat Washer |
| 80a |
250300027 |
Clinch Stud M6 X 20 |
| 85 |
232561414 |
Elastic Stop Nut M6 |
| 90 |
250000535 |
Torx Screw M8 X 55 |
| 95 |
518324874 |
RH Reinforcement |
| 95 |
518324875 |
LH Reinforcement |
| 105 |
518325973 |
RH Rear Base |
| 105 |
518325974 |
LH Rear Base |
| 115 |
250300038 |
Clinch Stud |
| 125 |
518326656 |
Seal |
| 130 |
518327105 |
Rear Cap |
| 135a |
390909200 |
Avex Rivet |
| 140 |
293730042 |
Full Moon Dart 5 mm |
| 145 |
390909100 |
Avex Rivet |
| 150 |
293150144 |
Stavex Rivet |
| 155 |
293150146 |
Henrob Rivet |
| 165 |
518326961 |
U-Attach |
| 175 |
250000534 |
Tork Screw M6 X 16 |
| 180 |
233061414 |
Hex. Flange Nut M6 |
| 185 |
518326795 |
RH Member |
| 190 |
518325558 |
LH Member |
| 210 |
293150120 |
Hemlock Rivet 6.5 mm |
| 215 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 225 |
505073317 |
Leg Cushion |
| 250 |
518325955 |
RH SLIDE BRACKET - Call your local BRP dealership |
| 250 |
518325956 |
LH Slide Bracket |
| 265 |
518325159 |
RH ROLLER - Call your local BRP dealership |
| 265 |
518325160 |
LH Roller |
| 275 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 298 |
390402400 |
Pop Rivet 3/16" |
| 300a1 |
518327487 |
Front Suspension Support |
| 300b |
518326975 |
Front Member |
| 320 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. |
| 360 |
293150182 |
Monobolt Rivet 6.4 |
| 500 |
518328346 |
Pulley Support |
| 510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 700 |
518326557 |
Front Member, S Module |
| 900 |
518326559 |
Rear Member |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518325115 |
Center Column Support |
| 1210 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1300a |
518325579 |
Clear Rear Bumper |
| 1300b |
520000711 |
Full Moon RH Cap |
| 1300b |
520000712 |
Full Moon LH Cap |
| 1400 |
293730041 |
Full Moon Dart 8 mm |
