Parts Catalog

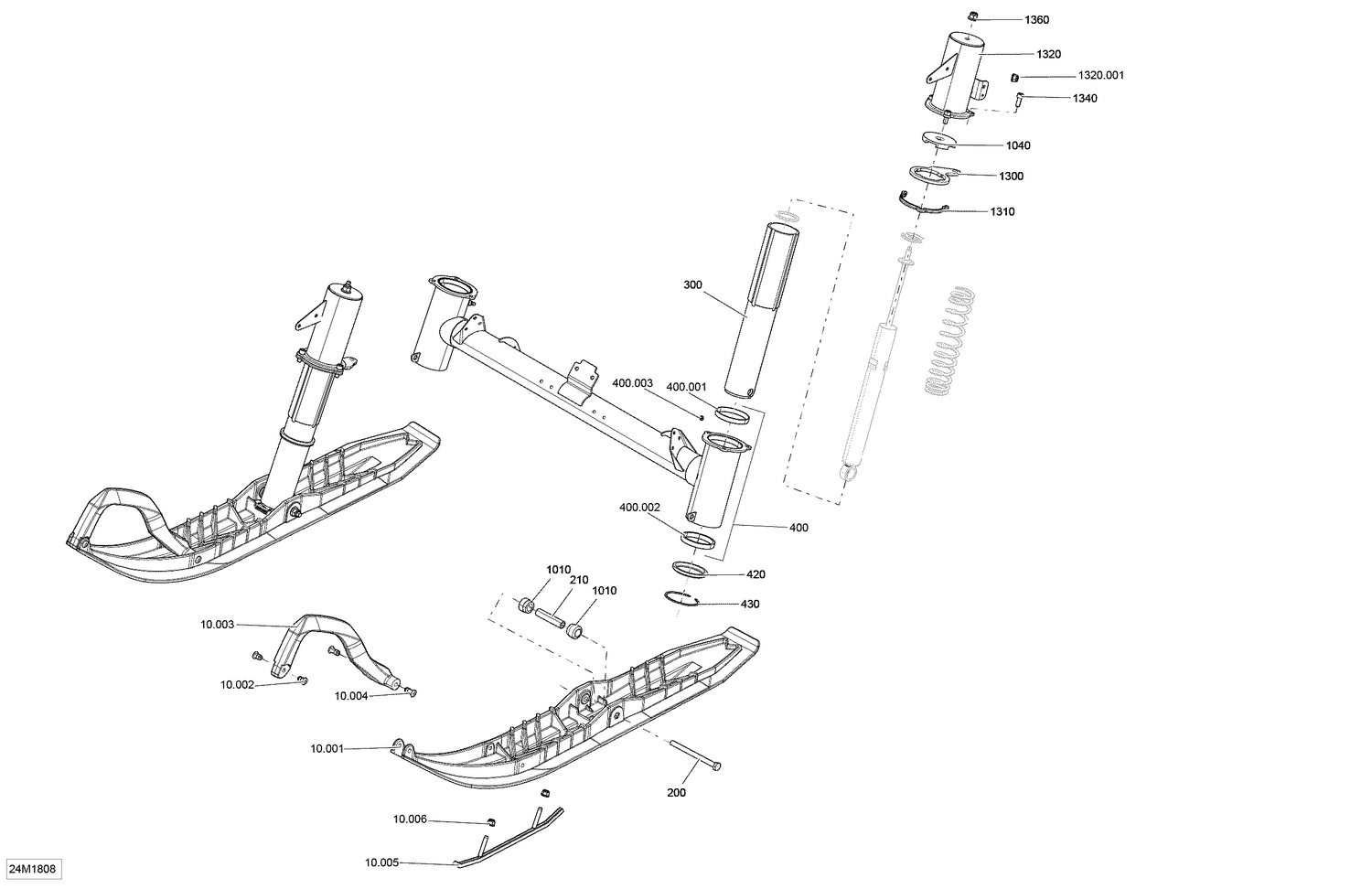

07- Front Suspension And Ski Tundra

Parts (10)

Ref	Part Number	Description
200	250000703	Hex. Screw M10 X 130
210	505073209	Ski Axle
300	505073200	Ski Leg
420	505072696	Seal Oil
430	505072698	Circlip
1010	572034500	Cushion
1040	570025800	Stopper
1300	505073823	Steering Arm
1310	505073983	Spacer
1340	205082044	Socket Head Screw M8 X 20
