Home / BRP / STERN DRIVE / 1994 / 5.80 / 58FBDPMDA 1994 / LOWER GEARCASE

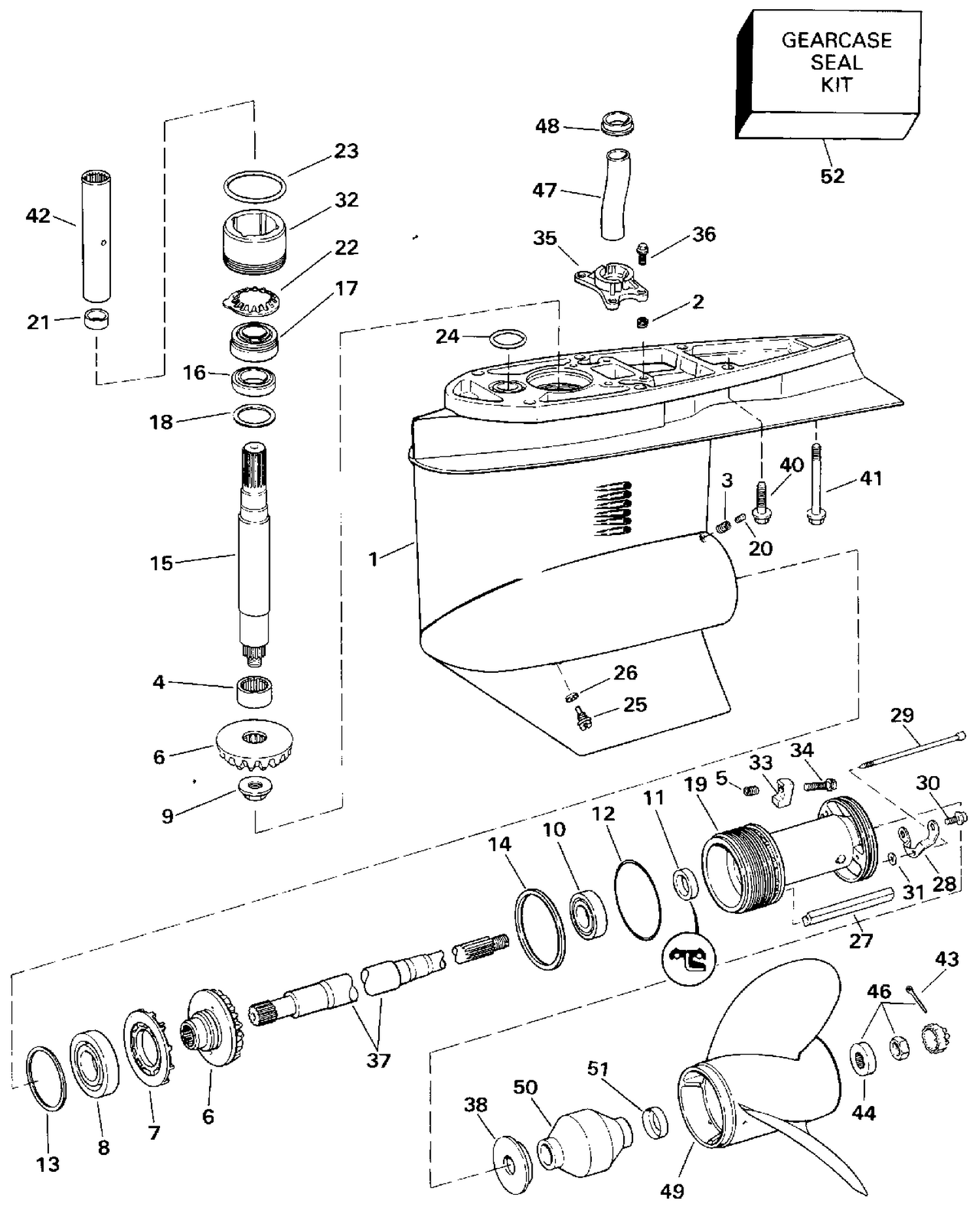

LOWER GEARCASE

LOWER GEARCASE

Parts (92)

RefPart NumberDescription
1 3854459 GEARCASE & BEARING
2 0910901 INSERT This part replaces 3852513.
3 3852567 INSERT
4 3853934 BEARING, Pinion
5 0910935 INSERT, 3/8-16 This part replaces 3852515.
6 3850979 GEAR SET, 17:23
7 3853941 OIL SLINGER & PINS
8 3850942 BEARING, Gear to gearcase
9 3852861 NUT, Pinion to driveshaft
10 3854249 BEARING, Driveshaft, lower
11 3863090 Seal This part replaces 3853474.
12 3852865 O-RING, Propeller shaft hsg.
13 0913871 SHIM, Gear position, 0.003" This part replaces 3852886.
13 0913872 SHIM, Gear position, 0.005" This part replaces 3852887.
13 0913873 SHIM, Gear position, 0.010" This part replaces 3852888.
13 3850695 SHIM, Gear position, 0.002 in.
14 3852868 RING, Shim, 0.100 in.
14 3852869 RING, Shim, 0.102 in.
14 3852870 RING, Shim, 0.104 in.
14 3852871 RING, Shim, 0.106 in.
14 3852872 RING, Shim, 0.108 in.
14 3852873 RING, Shim, 0.110 in.
14 3852874 RING, Shim, 0.112 in.
14 3852875 RING, Shim, 0.114 in.
14 3852876 RING, Shim, 0.116 in.
14 3852877 RING, Shim, 0.118 in.
14 3852878 RING, Shim, 0.120 in.
14 3852879 RING, Shim, 0.122 in.
14 3852880 RING, Shim, 0.124 in.
14 3852881 RING, Shim, 0.096 in.
14 3852882 RING, Shim, 0.098 in.
15 3852884 DRIVESHAFT, Lower
16 3854249 BEARING, Driveshaft, lower
17 3854250 BEARING, Driveshaft, upper
18 3852889 SHIM, Pinion position, 0.003 in.
18 3852890 SHIM, Pinion position, 0.004 in.
18 3852891 SHIM, Pinion position, 0.005 in.
18 3852892 SHIM, Pinion position, 0.010 in.
19 3858051 Housing This part replaces 3853492.
20 3853272 SET SCREW, Prop shaft housing
21 3852863 SUPPORT, Driveshaft
22 3852862 WASHER, Retaining
23 3852866 O-RING, Support housing
24 3852959 O-RING, Oil passage
25 3854539 SCREW, Gearcase plug This part replaces 3852152.
27 3852970 ANODE, Prop shaft housing
28 0914041 RETAINER, Anode This part replaces 3852971.
29 0914042 SCREW, Anode This part replaces 3852972.
30 0914673 SCREW, Anode retainer This part replaces 3853309.
31 3852973 WASHER, Anode
32 3852883 RETAINER, Driveshaft
33 3853371 RETAINER, Prop shaft housing
34 3852478 SCREW, Prop shaft retainer
35 3853932 GUIDE & SEAL, Water tube
36 0341013 SCREW, Cover This part replaces 3852454.
37 3854083 PROPELLER SHAFT
40 3852867 SCREW, Lower to upper housing
41 3852960 SCREW, Gear housing
42 3852902 DRIVESHAFT, Intermediate
44 3852350 SPACER, Propeller nut
47 3852963 TUBE, Water supply
48 0911705 GUIDE, Water tube This part replaces 3852532.
49 0174811 PROPELLER, 14 1/2 x 19 OMC Viper
49 0174812 PROPELLER, 14 1/2 X 21 OMC Viper
49 0174813 LH Viper 14 1/4 x 23
49 0174814 PROPELLER, 14 1/2 x 19 OMC Viper
49 0174815 PROPELLER, 14 1/2 x 21 OMC Viper
49 0174816 PROPELLER, 14 1/2 x 23 OMC Viper
49 0174889 PROPELLER, 15 x 17 OMC Viper
49 0174890 PROPELLER 15 x 17 OMC Viper
49 0174926 PROPELLER, 15 X 15 SST
49 0174927 PROPELLER, 15 x 15 SST
49 0389019 PROP, 14-1/2 x 23 SST
49 0389923 PROP, 14-1/2 x 21 SST
49 0389924 PROP, 14-1/2 x 19 SST
49 0390821 PROPELLER, 14 1/2 x 19 SST II
49 0390822 PROPELLER 14-1/4 X 21
49 0390823 PROPELLER 14-1/4 X 23
49 0391290 PROP, 15 x 17 SST
49 0394752 PROPELLER, 14 1/2 x 18 OMC Raker
49 0394753 PROPELLER, 14 1/2 x 20 OMC Raker
49 0394754 PROPELLER, 14 1/2 x 22 OMC Raker
49 0394755 PROPELLER, 13 1/2 X 24 OMC RAKER
49 0394756 PROPELLER, 14 1/2 x 26 OMC Raker
49 0394757 PROPELLER, 14 1/2 x 28 OMC Raker
49 0398502 PROPELLER, 14 1/2 X 20 RACKER
49 0398503 LH Raker 14 1/2 x 22
49 0398504 LH Raker 14 1/2 x 24
49 0398505 LH Raker 14 1/2 x 26
49 0398506 LH Raker 14 1/2 x 28
49 0431930 PROPELLER, 15 x 17 SSS II
3854659 3854659 GEARCASE ASSY., 17:23
