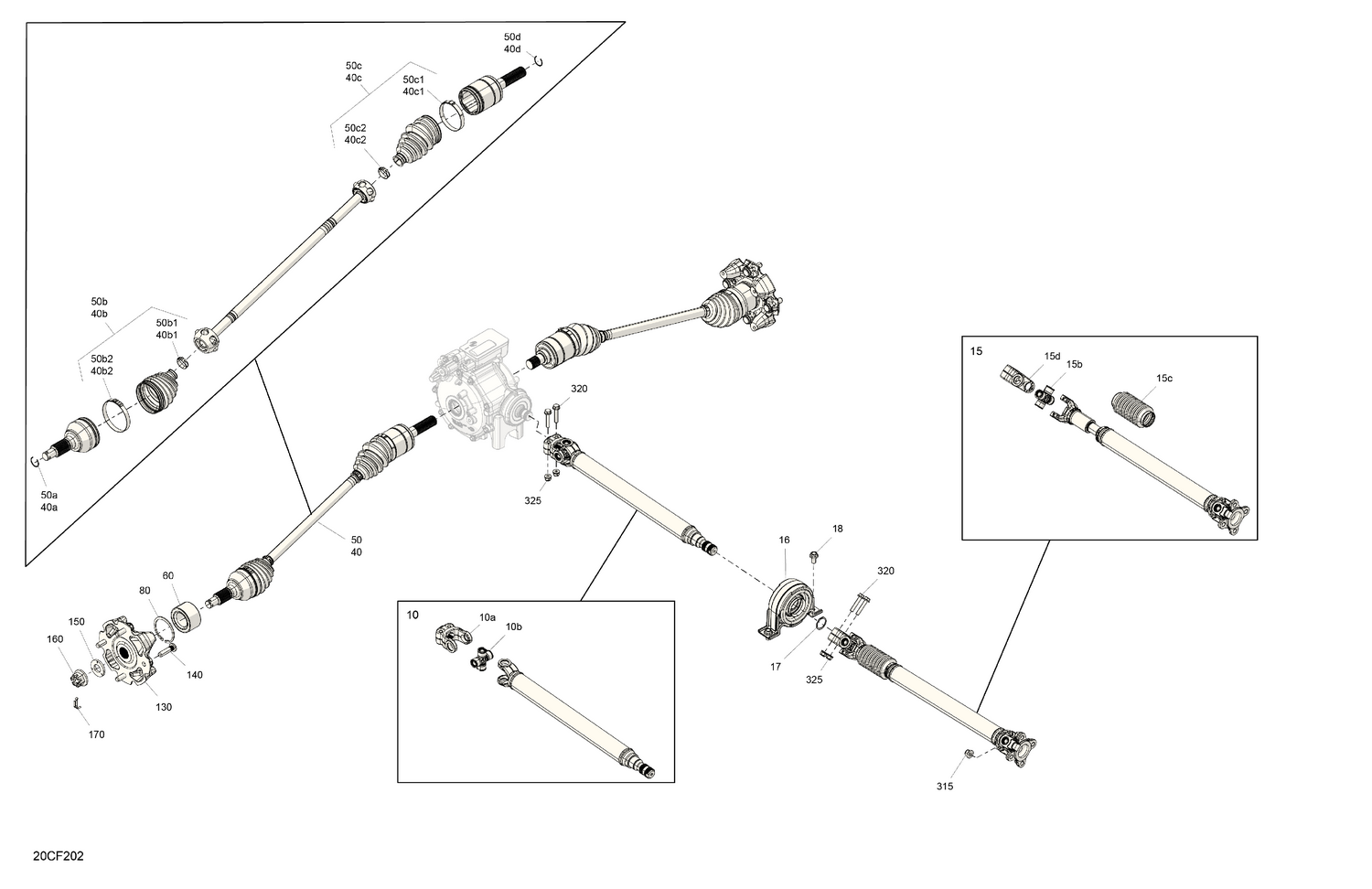

04- Drive - Front - Common Parts
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900939 | Connecting Yoke 20Th |
| 10b | 715900911 | Universal Joint Ass'y |
| 15b | 715900911 | Universal Joint Ass'y |
| 15c | 715901025 | Boot Ass'y |
| 15d | 715900939 | Connecting Yoke 20Th |
| 16 | 705403766 | Bearing_Ball Ass'y |
| 17 | 293370098 | Snap Ring |
| 18 | 207502046 | Hex. Flange Screw M10 X 20 |
| 40a | 715901033 | Circlip Joint |
| 40b1 | 715900261 | Oetiker Clamp, Small |
| 40b2 | 715900260 | Oetiker Clamp, Large |
| 40c1 | 715900261 | Oetiker Clamp, Small |
| 40c2 | 715900262 | Oetiker Clamp, Large |
| 40d | 715900569 | Circlip |
| 50a | 715901033 | Circlip Joint |
| 50b1 | 715900261 | Oetiker Clamp, Small |
| 50b2 | 715900260 | Oetiker Clamp, Large |
| 50c1 | 715900261 | Oetiker Clamp, Small |
| 50c2 | 715900262 | Oetiker Clamp, Large |
| 50d | 715900569 | Circlip |
| 60 | 293350151 | Ball Bearing |
| 80 | 293370169 | Internal Retaining Ring |
| 130 | 705503479 | Machined Wheel Hub |
| 140 | 250300625 | Wheel Stud M12X1.5 |
| 150 | 250200170 | Conical Spring Washer M20 |
| 160 | 250100193 | Castle Nut M20 |
| 170 | 250400084 | Cotter Pin |
| 315 | 233201466 | Flange Elastic Nut M10 |
| 320 | 250001050 | Hex. Flange Screw M8 X 42 |
