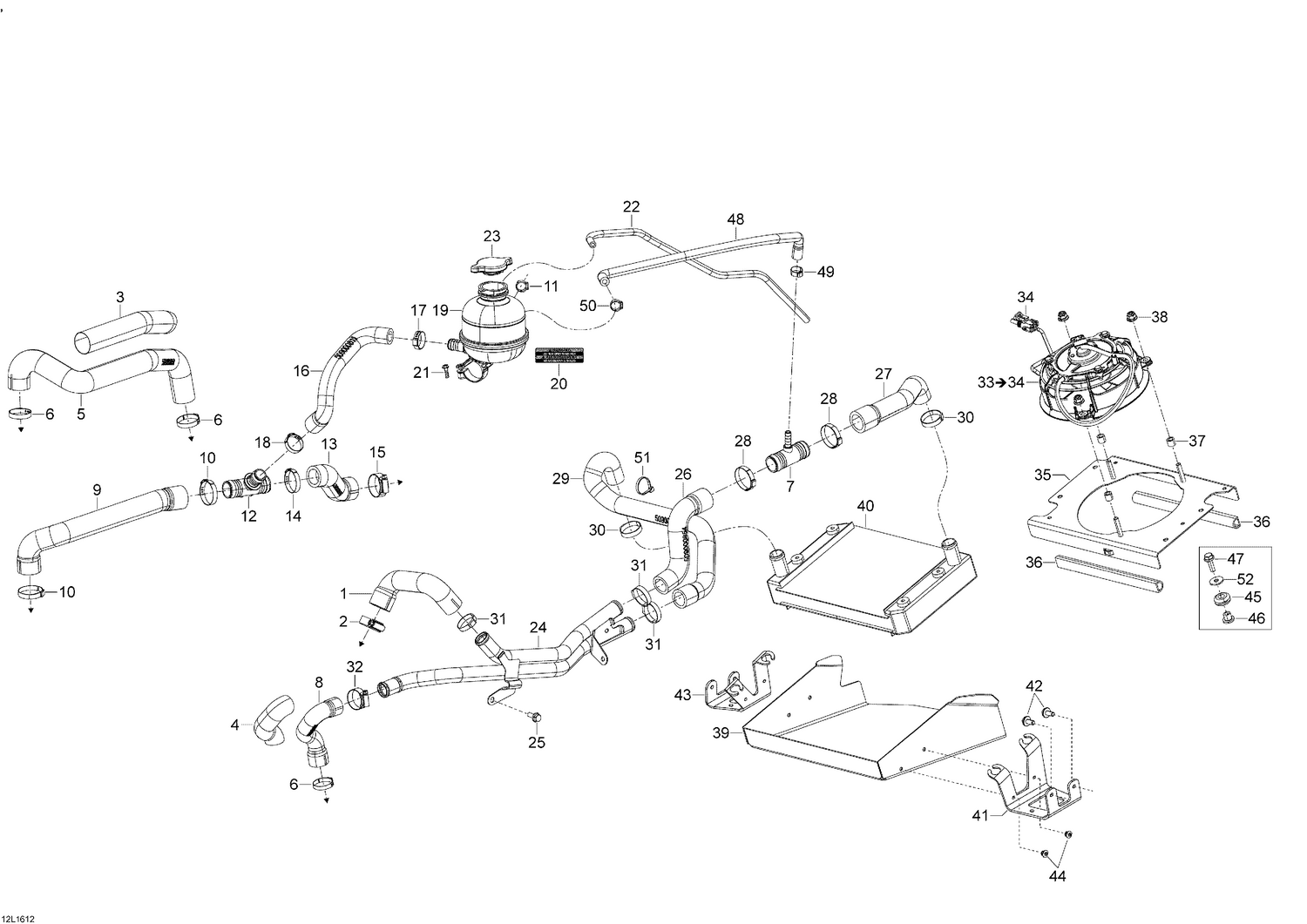

01- Cooling System
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000858 | Engine Outlet Hose |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000513 | Protector Tube |
| 4 | 509000513 | Protector Tube |
| 5 | 509000859 | Hose |
| 6 | 509000529 | Crimp Clamp |
| 7 | 509000510 | T-Fitting |
| 8 | 509000888 | Radiator Hose |
| 9 | 509001062 | Radiator Return Hose This part replaces 509000697. |
| 10 | 509000529 | Crimp Clamp |
| 11 | 293650025 | Crimp Clamp |
| 12 | 509000372 | T-Fitting |
| 13 | 509000864 | Radiator Hose |
| 14 | 509000529 | Crimp Clamp |
| 15 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 16 | 509001063 | Filling Hose This part replaces 509000811. |
| 17 | 509000442 | Crimp Clamp |
| 18 | 293650099 | Crimp Clamp |
| 19 | 509000875 | Coolant Tank |
| 20 | 516005904 | Warning Decal |
| 21 | 241151640 | Hex. Flange Screw K50 x 16 |
| 22 | 509000775 | Hose |
| 23 | 509000180 | Radiator Pressure Cap |
| 24 | 509000800 | Water Pipe |
| 25 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 26 | 509000854 | Radiator Hose |
| 27 | 509000862 | Radiator Hose |
| 28 | 509000162 | Gear Clamp |
| 29 | 509000855 | Radiator Hose |
| 30 | 293650099 | Crimp Clamp |
| 31 | 293650141 | Crimp Clamp |
| 32 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 34 | 278000220 | Female Housing, 2 Circuits |
| 34 | 409007300 | Female Terminal |
| 35 | 509000928 | Fan Support |
| 36 | 509000823 | D-Seal |
| 37 | 605453745 | Bushing |
| 38 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 39 | 509000893 | Air Deflector |
| 40 | 509000488 | Radiator |
| 41 | 509000933 | RH Support |
| 42 | 250000574 | Hex. Flange Screw M6 x 12 |
| 43 | 509000934 | LH Support |
| 44 | 390402200 | Pop Rivet 3/16 |
| 45 | 709000582 | Grommet |
| 46 | 293900100 | Bushing |
| 47 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 48 | 509000860 | Breather Hose |
| 49 | 293650047 | Crimp Clamp, 15.3-706R |
| 50 | 293650025 | Crimp Clamp |
| 51 | 414115200 | Tie-Rap 180 mm |
