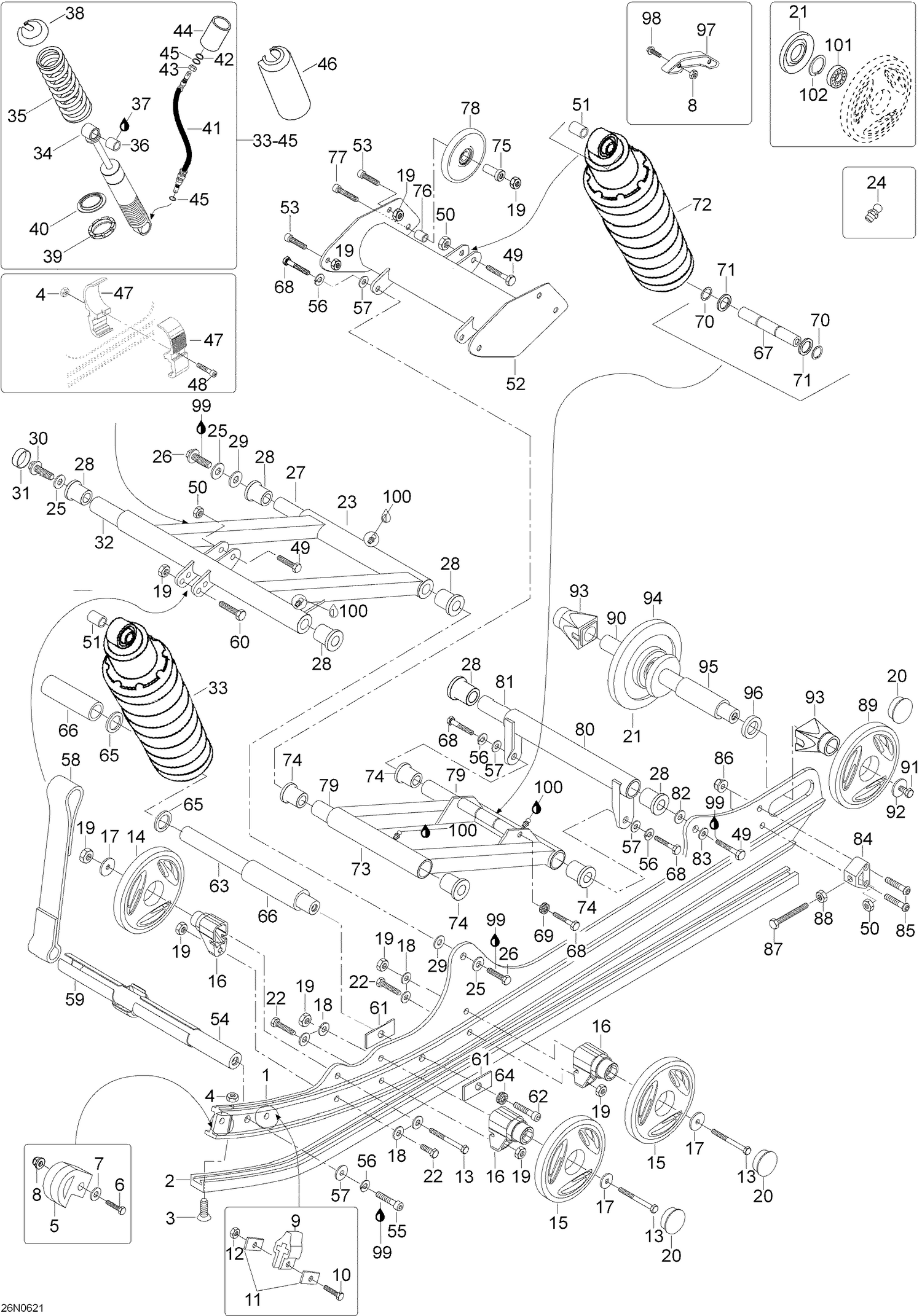

08- Rear Suspension

08- Rear Suspension

Parts (103)

RefPart NumberDescription
1 605253576 R.H. Runner
1 605253578 L.H. Runner
2 605351309 Shoe
3 40059 Socket head screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 605348954 Runner protector
6 40031 Hex. screw M6 x 25
7 20003 Washer A6,4
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Hex. screw M6 x 30
11 548470 Washer
12 33010 Lock Nut M6 (1=10Pcs)
13 40089 M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership
14 503191316 Wheel 141mm This part replaces 503190577.
15 503191313 Wheel 141 With Pattern Ass'y, Full Moon This part replaces 503190751.
16 605451906 Support
17 211200041 Washer M8
18 234081410 Flat Washer 8 mm This part replaces 20104.
19 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
20 570063600 Protector
21 503190434 Labyrinth Seal
22 40037 Hex. screw M8 x 25
23 5145588 Front arm
24 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
25 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
26 40099 Hex. screw M12 x 45
27 605352383 Shaft
28 31024 Cushion
29 20040 Washer
30 40243 Hex. screw M12 x 60
31 5448025 Cap
32 5346135 Shaft
34 23221 Shock, front arm
34 23222 Shock, rear arm
35 25070 Spring, rear arm
35 25073 Spring, front arm
36 31094 Cushion
37 320006 Loctite 641, 50ml
38 5346750 Spring stopper
39 230048 Cam
40 230049 Spring guide
41 230111 Hose, center shock
41 619300014 Hose, rear shock
42 230112 Washer
43 Not Available As Spare Part - Nut
44 619300002 Reservoir
45 619300003 O-ring
46 5346754 Shock protector
47 605352257 Bracket
48 40806 Socket head screw M6 x 50
49 40016 Hex. screw M10 x 45
50 33012 Elastic stop nut M10
51 5446652 Bushing
52 605253606 Upper arm
53 205982086 SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership This part replaces 40351.
54 5343471 Shaft
55 40134 Screw Socket HD.DIN 912
56 20047 Shim B10 DIN127 -St Zne(1=10pcs) - Call your local BRP dealership
57 20105 Washer, hardened, 10mm
58 605449385 Stopper strap
59 605349381 Retainer for stopper strap - Call your local BRP dealership
60 207084544 Hex. Screw M8 X 45 This part replaces 40008.
61 605449294 Support Plate
62 40371 Socket head screw M12 x 55
63 605350690 Shaft
64 20074 Lock washer 12mm
65 31013 Shim Ring
66 605349896 Sleeve
67 605451897 REARSHOCK SHAFT - Call your local BRP dealership
68 40014 Hex. screw M10 x 40
69 20068 Lock washer 10mm
70 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
71 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
73 605349313 Rear arm
74 31027 Cushion
75 5446700 Sleeve
76 5446701 Sleeve
77 605640005 Socket head screw M8 x 80
78 46027 Idler Wheel - Call your local BRP dealership
79 5346865 SHAFT - Call your local BRP dealership
80 5345535 Rear arm
81 5346900 Shaft
82 20116 Washer
83 512056700 Lock washer
84 5341633 Tensioner
85 40392 Socket head screw M8 x 45
86 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
87 40239 Hex. screw M10 x 100
88 232006414 Hex. Nut M10 This part replaces 33004.
89 503190752 WHEEL 180, FULL MOON - Call your local BRP dealership
90 503190429 Rear Axle
91 40050 Hex. screw M10 x 35
92 503190439 Washer
93 503190428 Rear Wheel Spacer
94 503194202 Roue 180 *Wheel 180 This part replaces 503190395.
95 503196317 Spacer This part replaces 503190430.
96 503190432 Washer
97 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
98 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
99 293800005 Loctite 271, 10ml
100 413711500 SYNTHETIC GREASE - Call your local BRP dealership
