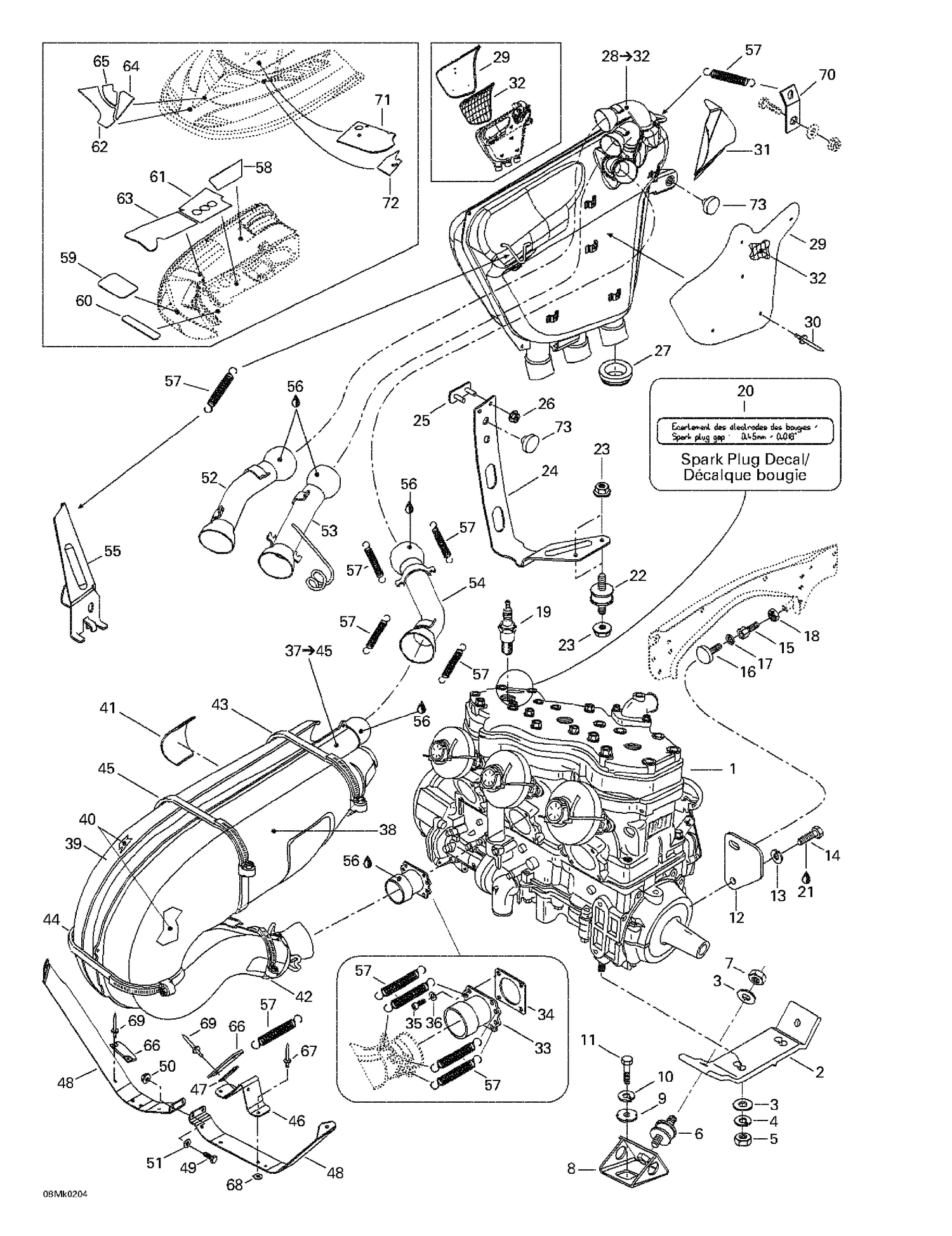

01- Engine Support And Muffler
Parts (80)
| Ref | Part Number | Description |
|---|---|---|
| Not | Available | As Spare Part - L.H. Insulator |
| 2 | 512059089 | Engine Support (MAG Side) |
| 3 | 234001410 | Flat Washer 10 mm |
| 4 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 5 | 232006414 | Hex. Nut M10 X 1.5 |
| 6 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 8 | 512050900 | Engine Support |
| 9 | 512056700 | Lock Washer |
| 10 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 11 | 207102544 | Hex. Screw M10 X 25 |
| 12 | 512056000 | STOPPER PLATE - Call your local BRP dealership |
| 13 | 234181401 | Lock Washer 8 mm |
| 14 | 207181644 | Hex. Screw M8 x 16 |
| 15 | 512056900 | Stopper Screw |
| 16 | 512059055 | STOPPER - Call your local BRP dealership |
| 17 | 512059058 | Washer |
| 18 | 232120414 | HEX. NUT M12 - Call your local BRP dealership |
| 19 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 20 | 516000986 | Spark Plug Decal |
| 21 | 293800005 | Loctite 271, 10 ml |
| 22 | 514052743 | RUBBER MOUNT - Call your local BRP dealership |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 514052887 | Support |
| 25 | 517294300 | Bracket |
| 26 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 27 | 570066200 | Exhaust Grommet |
| 29 | 514053374 | RH Heat Shield |
| 30 | 390910000 | Pop Rivet 3/16” |
| 31 | 514052862 | Heat Shield |
| 32 | Not | Available As Spare Part - R.H. Insulator |
| 33 | 420978818 | Exhaust Socket |
| 34 | 420850552 | Gasket |
| 35 | 205062544 | Socket Head Screw M6 X 25 |
| 36 | 234161471 | Lock Washer M6, Black |
| 38 | 514052774 | Upper Shell |
| 39 | 514052775 | Lower Shell |
| 40 | 514052776 | Insulator |
| 41 | 514052866 | Rubber Pad |
| 42 | 293650118 | Norma Gear Clamp This part replaces 514052859. |
| 43 | 514052860 | Norma Clamp |
| 44 | 514052924 | Norma Clamp |
| 45 | 514052861 | Gear Clamp (Norma) |
| 46 | 514052954 | Support |
| 47 | 514052955 | Spring Bracket |
| 48 | 514052777 | RH Tuned Pipe Support |
| 49 | 207152044 | Hex. Screw M5 X 20 |
| 50 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 51 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 52 | 514052779 | Tail Pipe (MAG) |
| 53 | 514052782 | Tail Pipe (Center) |
| 54 | 514052785 | Tail Pipe (PTO) |
| 55 | 514052788 | Support |
| 56 | 293800090 | Sealant, Loctite, 80 ml |
| 57 | 415107100 | Spring |
| 58 | 415083800 | RH Reflective Sheet |
| 59 | 415083900 | Leaf Valve Ø16 X 0.114 (C36) |
| 60 | 415111900 | Reflective Sheet |
| 61 | 415115000 | Reflective Sheet |
| 62 | 415112300 | RH Reflective Sheet |
| 63 | 514052950 | Reflective Sheet |
| 64 | 415112500 | RH Reflective Sheet |
| 65 | 415114800 | RH Reflective Sheet |
| 66 | 570044100 | Rubber Pad |
| 67 | 390906800 | Pop Rivet 3/16" |
| 68 | 517225900 | Flat Washer |
| 69 | 293150104 | Pop Rivet 3/16" This part replaces 390409600. |
| 70 | 514051000 | Spring Bracket |
| 71 | 514052951 | Reflective Sheet |
| 72 | 514052956 | Reflective Sheet |
| 415112400 | Feuille | Réflectrice GA 415112400 |
| 415112400 | LH | Reflective Sheet 415112400 |
| 415112600 | Feuille | Réflectrice GA 415112600 |
| 415112600 | LH | Reflective Sheet 415112600 |
| 415114900 | Feuille | Réflectrice GA 415114900 |
| 415114900 | LH | Reflective Sheet 415114900 |
| 512059090 | Engine | Support (PTO Side) 512059090 |
| 514052778 | LH | Tuned Pipe Support 514052778 |
| 514052835 | Bouclier | Thermique GA 514052835 |
| 514052835 | LH | Heat Shield 514052835 |
